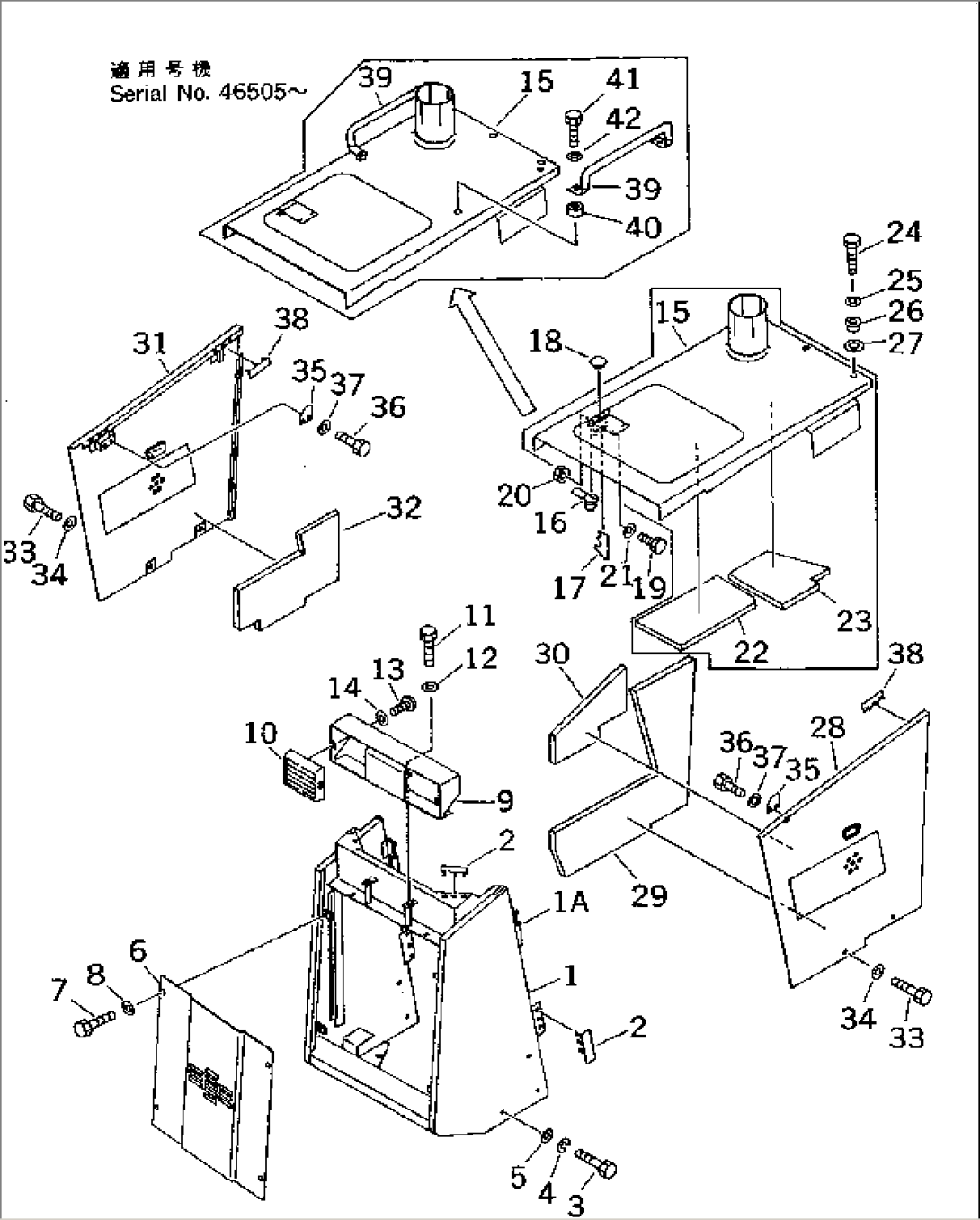

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 114-54-41262 | GUARD,RADIATOR | 45001-47616 | |
| 1A | 120-54-31220 | CATCHER ASS'Y,ENGINE HOOD (WELDED) | 45001-@ | |
| 2 | 114-54-41250 | SHEET | 45001-@ | |
| 3 | 01010-51435 | BOLT | 45001-@ | |
| 4 | 01602-21442 | WASHER,SPRING | 45001-@ | |
| 5 | 01643-31445 | WASHER | 45001-@ | |
| 6 | 114-54-41152 | GRILLE | 45001-@ | |
| 7 | 01010-51430 | BOLT | 45001-@ | |
| 8 | 01643-31445 | WASHER | 45001-@ | |
| 9 | 114-54-41270 | COVER | 45001-47616 | |
| 10 | 114-54-41291 | COVER | 45001-47616 | |
| 11 | 01011-51020 | BOLT | 45001-47616 | |
| 12 | 01643-31032 | WASHER | 45001-47616 | |
| 13 | 01220-40616 | SCREW | 45001-@ | |
| 14 | 01643-30623 | WASHER | 45001-@ | |
| 15 | 114-54-48830 | HOOD | 46505-47616 | |
| 15 | 114-54-41322 | HOOD | 45001-46504 | |
| 16 | 205-60-71220 | LOCK ASS'Y | 45001-47616 | |
| 17 | 09461-00020 | LEVER ASS'Y | 45001-@ | |
| 18 | 203-54-32260 | STOPPER | 45001-47616 | |
| 19 | 01010-51025 | BOLT | 45001-@ | |
| 20 | 01580-01008 | NUT | 45001-@ | |
| 21 | 01643-31032 | WASHER | 45001-@ | |
| 22 | 114-54-41591 | SHEET | 45001-46504 | |
| 23 | 114-54-44260 | SHEET | 45001-46504 | |
| 24 | 01010-51435 | BOLT | 45001-@ | |
| 25 | 01643-31445 | WASHER | 45001-@ | |
| 26 | 113-54-41340 | COLLAR | 45001-@ | |
| 27 | 113-54-31350 | SEAT | 45001-@ | |
| 28 | 114-54-42750 | COVER,L.H. | 45001-47616 | |
| 29 | 114-54-42850 | SHEET | 45001-47616 | |
| 30 | 114-54-42860 | SHEET | 45001-47616 | |
| 31 | 114-54-42760 | COVER,R.H. | 45001-47616 | |
| 32 | 114-54-42870 | SHEET | 45001-47616 | |
| 33 | 01010-51025 | BOLT | 45001-@ | |
| 34 | 01643-31032 | WASHER | 45001-@ | |
| 35 | 104-54-31391 | PLATE | 45001-@ | |
| 36 | 01010-51020 | BOLT | 45001-@ | |
| 37 | 01643-31032 | WASHER | 45001-@ | |
| 38 | 114-54-41250 | SHEET | 45001-@ | |
| 39 | 120-Y78-4531 | HANDLE | 46505-@ | |
| 40 | 203-62-21720 | SPACER | 46505-@ | |
| 41 | 01010-51245 | BOLT | 46505-@ | |
| 42 | 01643-31232 | WASHER | 46505-@ |
