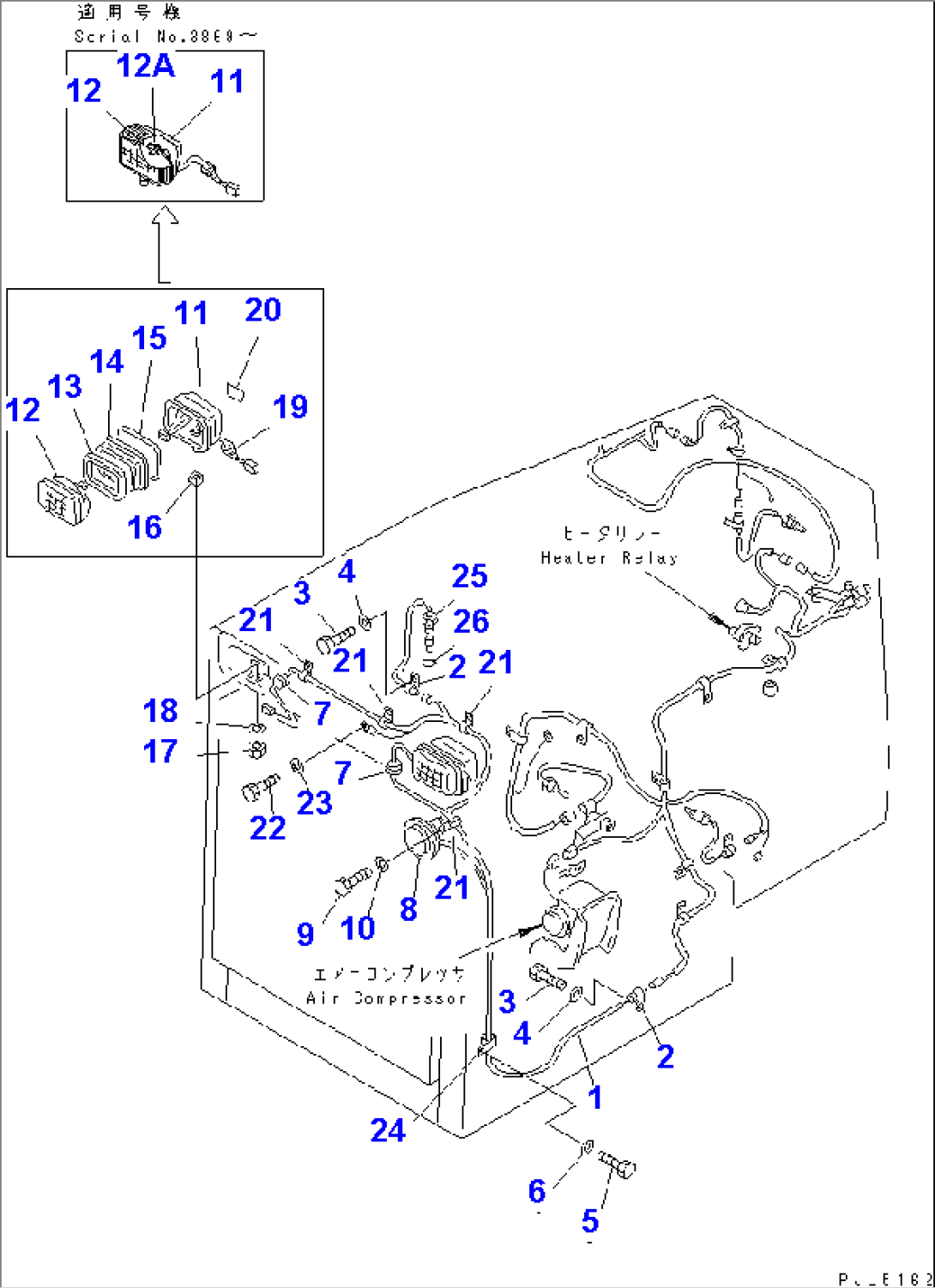

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 154-06-41111 | WIRING HARNESS | 3689- | |
| 2 | 195-06-41820 | CLIP | 3689- | |
| 3 | 01010-81220 | BOLT | 3689- | |
| 4 | 01643-31232 | WASHER | 3689- | |
| 5 | 01010-81020 | BOLT | 3689- | |
| 6 | 01643-31032 | WASHER | 3689- | |
| 7 | 201-43-28440 | GROMMET | 3689- | |
| 8 | 175-06-41110 | HORN | 3689- | |
| 9 | 01010-80820 | BOLT | 3689- | |
| 10 | 01643-40823 | WASHER | 3689- | |
| 17A-06-17940 | LAMP ASS'Y | 3869- | ||
| 23S-05-28210 | LAMP ASS'Y | 3689-3868 | ||
| 11 | 203-06-56160 | HOUSING | 3689-3868 | |
| 12 | 17A-06-17970 | BULB¤ 70W,70W | 3869- | |
| 22W-06-12170 | BULB | 3689-3868 | ||
| 12A | 17A-06-17980 | SLEEVE | 3869- | |
| 13 | 203-06-56180 | RING | 3689-3868 | |
| 14 | 22W-06-12290 | CUSHION | 3689-3868 | |
| 15 | 203-06-56190 | RING | 3689-3868 | |
| 16 | 22W-06-12160 | SEAT | 3689-3868 | |
| 17 | 01582-11411 | NUT | 3689-3868 | |
| 18 | 01643-31442 | WASHER | 3689-3868 | |
| 19 | 09415-01008 | CAP | 3689-3868 | |
| 20 | 23S-05-28220 | PLATE¤ NAME | 3689-3868 | |
| 21 | 08036-01014 | CLIP | 3689- | |
| 22 | 01010-81016 | BOLT | 3689- | |
| 23 | 01643-31032 | WASHER | 3689- | |
| 24 | 08036-11214 | CLIP | 3689- | |
| 25 | 7861-99-4520 | SENSOR,WATER LEVEL | 3689- | |
| 26 | 07002-13634 | O-RING | 3689- |
