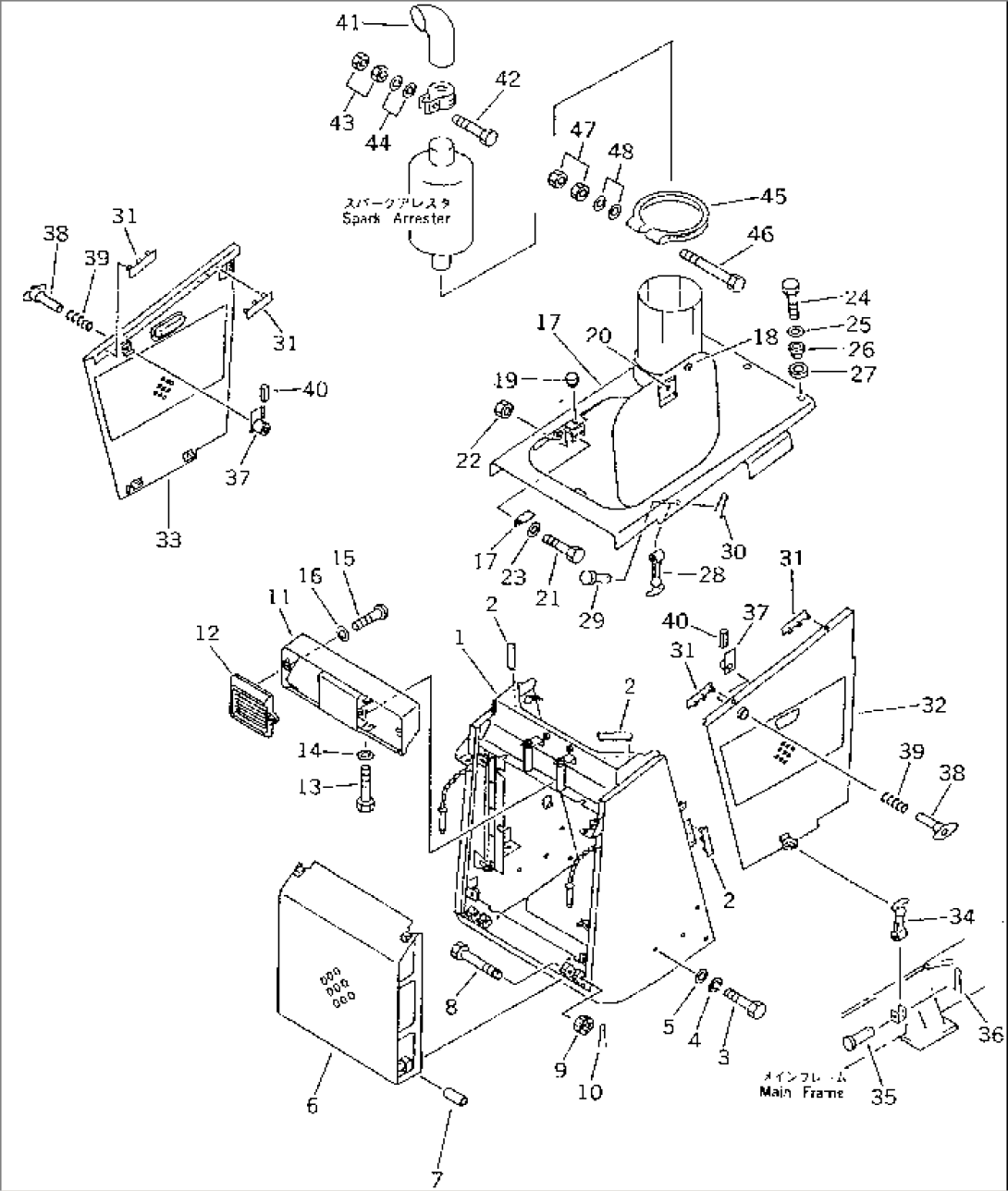

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 104-54-39210 | GUARD,RADIATOR | 75001-78603 | |
| 2 | 114-54-41250 | SHEET | 75001-78603 | |
| 3 | 01010-51230 | BOLT | 75001-78603 | |
| 4 | 01602-21236 | WASHER,SPRING | 75001-78603 | |
| 5 | 01643-31232 | WASHER | 75001-78603 | |
| 6 | 101-Y16-3742 | GRILLE,LOWER | 75001-78603 | |
| 7 | 10G-Z16-3620 | BUSH | 75001-78603 | |
| 8 | 10G-Z16-3610 | BOLT | 75001-78603 | |
| 9 | 01590-31012 | NUT | 75001-78603 | |
| 10 | 04050-02018 | PIN,COTTER | 75001-78603 | |
| 11 | 104-54-31270 | COVER | 75001-78603 | |
| 12 | 114-54-41291 | COVER | 75001-78603 | |
| 13 | 01011-51020 | BOLT | 75001-78603 | |
| 14 | 01643-31032 | WASHER | 75001-78603 | |
| 15 | 01220-40616 | SCREW | 75001-78603 | |
| 16 | 01643-30623 | WASHER | 75001-78603 | |
| 17 | 104-Y16-3710 | HOOD | 75001-78603 | |
| 18 | 205-60-71220 | LOCK ASS'Y | 75001-78603 | |
| 19 | 203-54-32260 | STOPPER | 75001-78603 | |
| 20 | 09461-00020 | LEVER ASS'Y (WELDED) | 75001-78603 | |
| 21 | 01010-51025 | BOLT | 75001-78603 | |
| 22 | 01580-01008 | NUT | 75001-78603 | |
| 23 | 01643-31032 | WASHER | 75001-78603 | |
| 24 | 01010-51025 | BOLT | 75001-78603 | |
| 25 | 01643-31032 | WASHER | 75001-78603 | |
| 26 | 113-54-31340 | COLLAR | 75001-78603 | |
| 27 | 113-54-31350 | SEAT | 75001-78603 | |
| 28 | 09450-00000 | CATCH | 75001-78603 | |
| 29 | 09450-00002 | PIN | 75001-78603 | |
| 30 | 04050-11610 | PIN,COTTER | 75001-78603 | |
| 31 | 114-54-41250 | SHEET | 75001-78603 | |
| 32 | 10G-Y16-3430 | COVER ASS'Y,L.H. | 75001-78603 | |
| 33 | 10G-Y16-3440 | COVER ASS'Y,R.H. | 75001-78603 | |
| 34 | 09450-00000 | CATCH | 75001-78603 | |
| 35 | 09450-00002 | PIN | 75001-78603 | |
| 36 | 04050-11610 | PIN,COTTER | 75001-78603 | |
| 37 | 11G-Z16-3140 | PLATE | 75001-78603 | |
| 38 | 11G-Z16-3130 | HANDLE | 75001-78603 | |
| 39 | 144-854-1910 | SPRING | 75001-78603 | |
| 40 | 04025-00524 | PIN | 75001-78603 | |
| 41 | 104-01-31130 | PIPE | 75001-78603 | |
| 42 | 01050-51045 | BOLT | 75001-78603 | |
| 43 | 01582-21008 | NUT | 75001-78603 | |
| 44 | 01641-21016 | WASHER | 75001-78603 | |
| 45 | 104-01-31120 | CLAMP | 75001-78603 | |
| 46 | 104-01-31150 | BOLT | 75001-78603 | |
| 47 | 01582-21411 | NUT | 75001-78603 | |
| 48 | 6151-11-5670 | WASHER | 75001-78603 |
