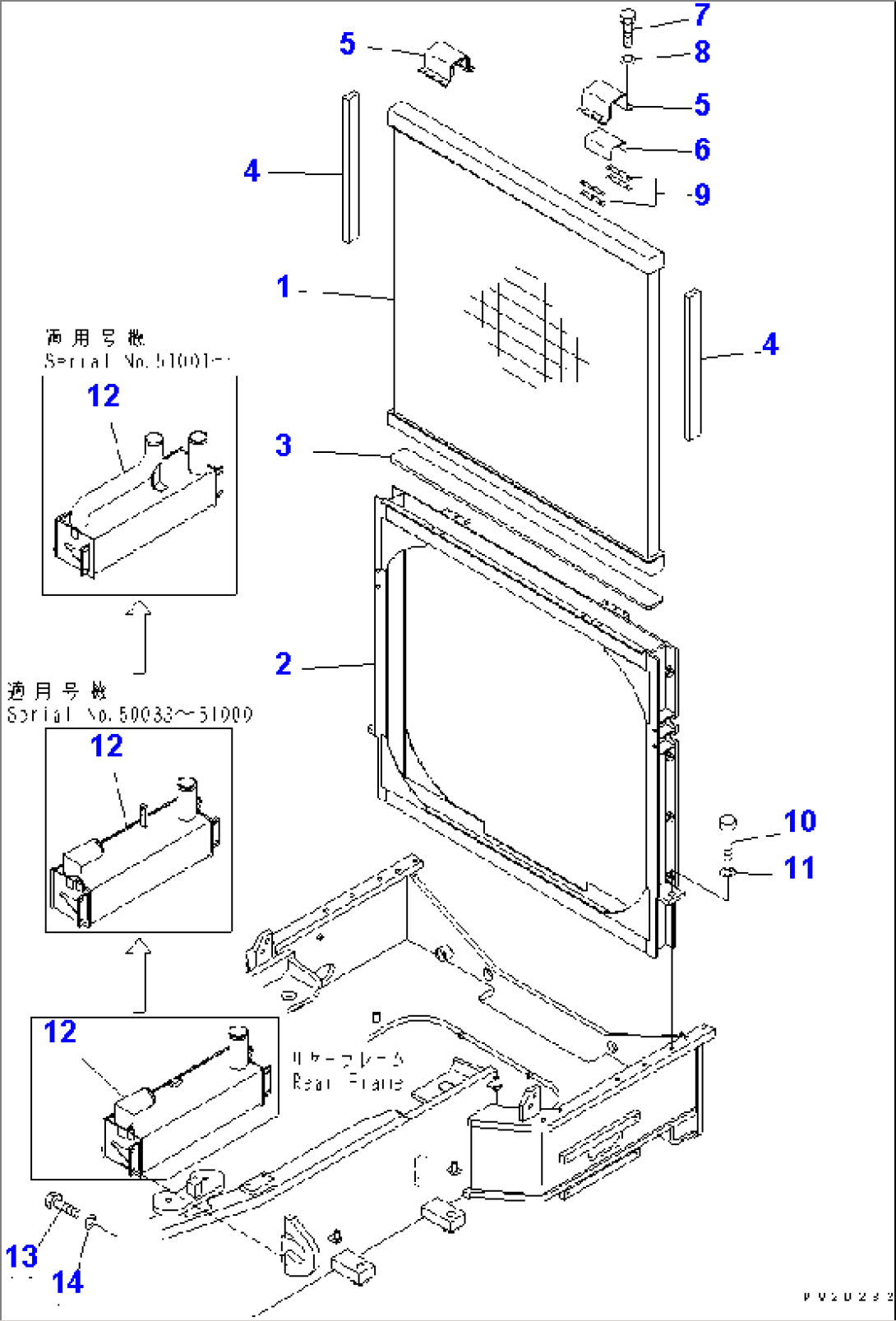

| Item | Part No. | Part Name | Qty | Serial No. |
| 428-03-15101 | OIL COOLER ASS'Y | 50001- | ||
| 1 | 428-03-15111 | CORE ASS'Y | 50001- | |
| 2 | 428-03-15211 | FRAME | 50001- | |
| 3 | 428-03-15220 | SEAT,RUBBER | 50001- | |
| 4 | 428-03-15230 | PACKING | 50001- | |
| 5 | 428-03-15121 | CLAMP | 50001- | |
| 6 | 428-03-15320 | SEAT,RUBBER | 50001- | |
| 7 | 01010-81030 | BOLT | 50001- | |
| 8 | 01643-31032 | WASHER | 50001- | |
| 9 | 428-03-15130 | SHIM | 50001- | |
| 10 | 01010-62055 | BOLT | 50001- | |
| 11 | 01643-32060 | WASHER | 50001- | |
| 12 | 426-03-22201 | OIL COOLER ASS'Y | 51001- | |
| 12 | 426-03-21203 | OIL COOLER ASS'Y | 50033-51000 | |
| 12 | 426-03-21202 | OIL COOLER ASS'Y | 50001-50032 | |
| 13 | 01010-81225 | BOLT | 50001- | |
| 14 | 01643-31232 | WASHER | 50001- |
