| Item | Part No. | Part Name | Qty | Serial No. |

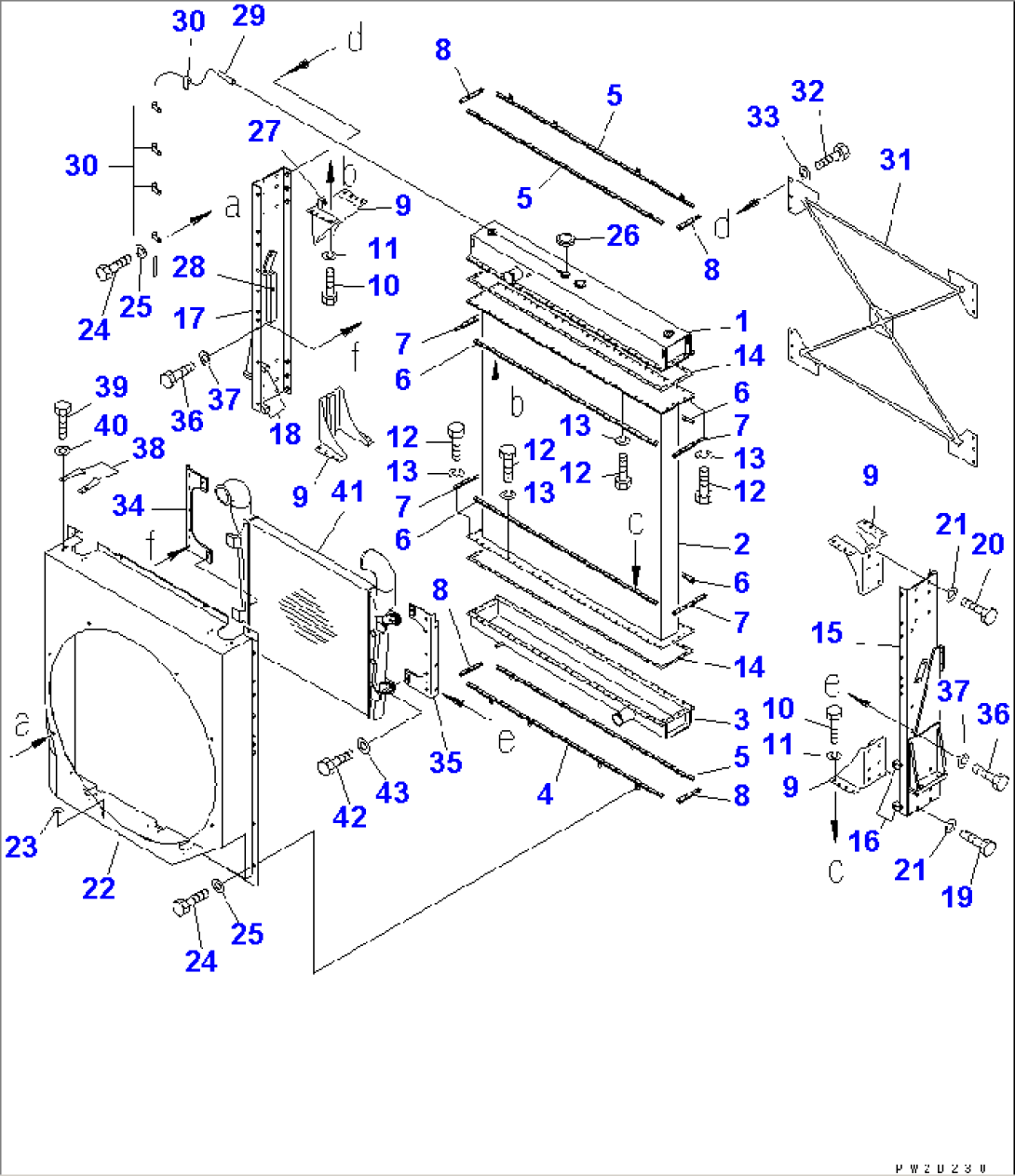

| 428-03-21401 | RADIATOR ASS'Y | 51075- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.C0110-01B0 AND C0110-02B0. | ||||
| 1 | 428-03-11111 | TANK,UPPER | 51075- | |
| 2 | 428-03-21210 | CORE | 51075- | |
| 3 | 428-03-21361 | TANK,LOWER | 51075- | |
| 4 | 428-03-11140 | PLATE ASS'Y | 51075- | |
| 5 | 428-03-11450 | PLATE ASS'Y | 51075- | |
| 6 | 428-03-11160 | PLATE | 51075- | |
| 7 | 428-03-11171 | PLATE | 51075- | |
| 8 | 428-03-11310 | PLATE | 51075- | |
| 9 | 428-03-11181 | BRACKET | 51075- | |
| 10 | 01010-81040 | BOLT | 51075- | |
| 11 | 01602-21030 | WASHER,SPRING | 51075- | |
| 12 | 01010-81030 | BOLT | 51075- | |
| 13 | 01602-21030 | WASHER,SPRING | 51075- | |
| 14 | 428-03-11212 | GASKET | 51075- | |
| 15 | 428-03-21471 | SUPPORT,L.H. | 51075- | |
| 16 | 428-03-21420 | BLOCK | 51075- | |
| 17 | 428-03-21481 | SUPPORT,R.H. | 51075- | |
| 18 | 428-03-21420 | BLOCK | 51075- | |
| 19 | 01010-81240 | BOLT | 51075- | |
| 20 | 01010-81230 | BOLT | 51075- | |
| 21 | 01643-31232 | WASHER | 51075- | |
| 22 | 428-03-21461 | SHROUD | 51075- | |
| 23 | 428-03-21390 | PLATE | 51075- | |
| 24 | 01010-81025 | BOLT | 51075- | |
| 25 | 01643-31032 | WASHER | 51075- | |
| 26 | 421-03-11461 | CAP | 51075- | |
| 27 | 428-03-11240 | PACKING | 51075- | |
| 28 | 428-03-21240 | PACKING | 51075- | |
| 29 | 428-03-21260 | HOSE | 51075- | |
| 30 | 419-03-11320 | CLIP | 51075- | |
| 31 | 428-03-21270 | STAY | 51075- | |
| 32 | 01010-81230 | BOLT | 51075- | |
| 33 | 01643-31232 | WASHER | 51075- | |
| 34 | 428-03-11411 | BRACKET,L.H. | 51075- | |
| 35 | 428-03-11421 | BRACKET,R.H. | 51075- | |
| 36 | 01010-81230 | BOLT | 51075- | |
| 37 | 01643-31232 | WASHER | 51075- | |
| 38 | 428-03-11430 | PLATE | 51075- | |
| 39 | 01010-81016 | BOLT | 51075- | |
| 40 | 01643-31032 | WASHER | 51075- | |
| 41 | 6162-65-4200 | AFTER COOLER ASS'Y | 51075- | |
| 42 | 01010-81245 | BOLT | 51075- | |
| 43 | 01643-31232 | WASHER | 51075- |
