| Item | Part No. | Part Name | Qty | Serial No. |
| 426-S05-3540 | RADIATOR ASS'Y | 52001- | ||

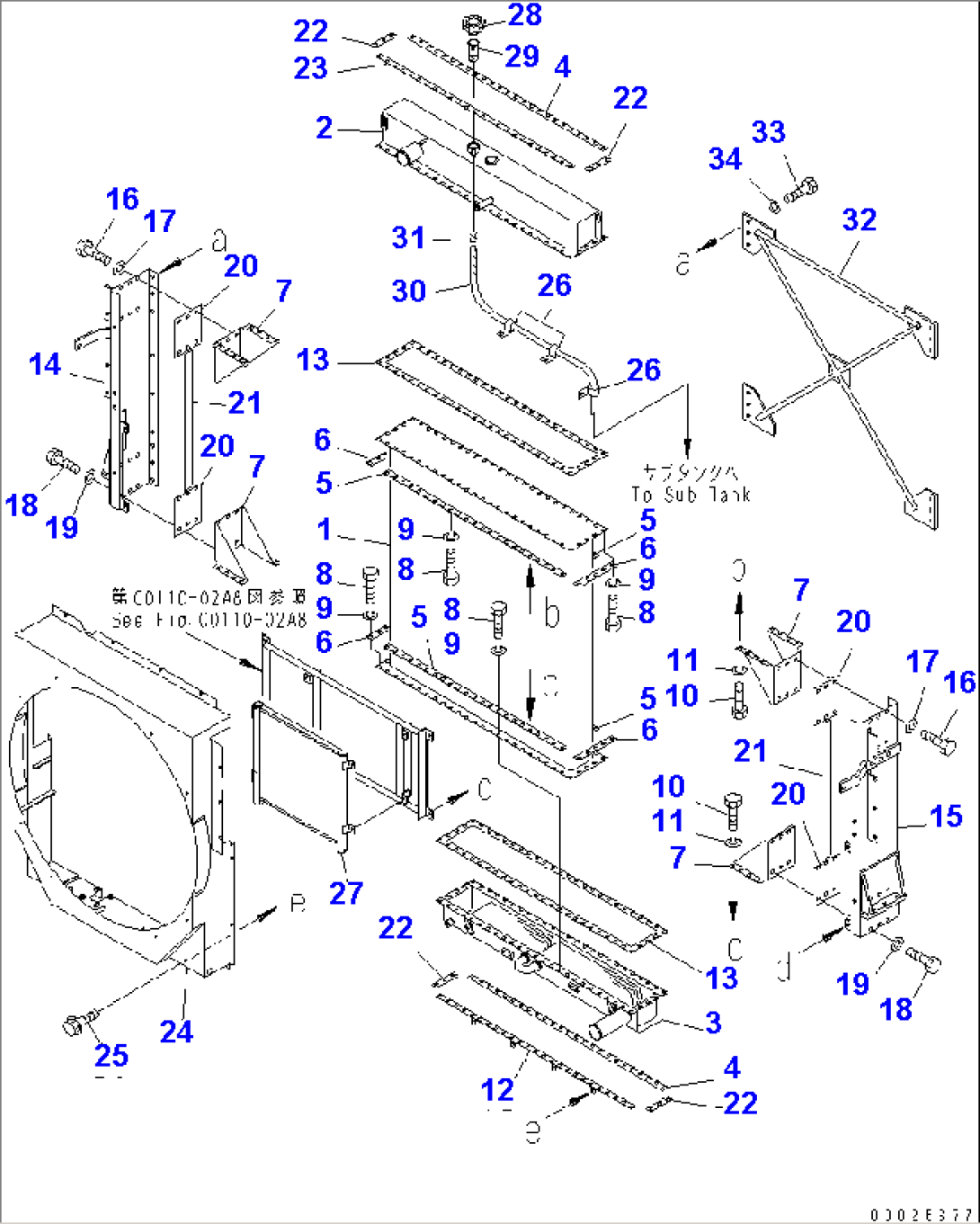

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.C0110 -01A0A AND FIGS. C0110-02A0A. | ||||
| 426-03-21510 | CORE ASS'Y | 52001- | ||
| 1 | 426-03-21520 | CORE | 52001- | |
| 2 | 426-02-21531 | TANK,UPPER | 52001- | |
| 3 | 426-03-21541 | TANK,LOWER | 52001- | |
| 4 | 426-03-11221 | PLATE | 52001- | |
| 5 | 426-03-11182 | PLATE | 52001- | |
| 6 | 426-03-11192 | PLATE | 52001- | |
| 7 | 426-03-21550 | RIB | 52001- | |
| 8 | 01010-81030 | BOLT | 52001- | |
| 9 | 01602-21030 | WASHER,SPRING | 52001- | |
| 10 | 01010-81040 | BOLT | 52001- | |
| 11 | 01602-21030 | WASHER,SPRING | 52001- | |
| 12 | 426-03-21560 | PLATE | 52001- | |
| 13 | 426-03-11212 | GASKET | 52001- | |
| 14 | 426-03-21571 | SUPPORT,R.H. | 52001- | |
| 15 | 426-03-21581 | SUPPORT,L.H. | 52001- | |
| 16 | 01010-81230 | BOLT | 52001- | |
| 17 | 01643-31232 | WASHER | 52001- | |
| 18 | 01010-81240 | BOLT | 52001- | |
| 19 | 01643-31232 | WASHER | 52001- | |
| 20 | 426-03-21270 | PACKING | 52001- | |
| 21 | 426-03-21280 | PACKING | 52001- | |
| 22 | 426-03-11260 | PLATE | 52001- | |
| 23 | 426-03-21590 | PLATE | 52001- | |
| 24 | 426-03-21612 | SHROUD | 52001- | |
| 25 | 01435-01030 | BOLT | 52001- | |
| 26 | 08036-41210 | CLIP | 52001- | |
| 27 | 426-03-21370 | COOLER,FUEL | 52001- | |
| 28 | 426-03-21620 | CAP,PRESSURE | 52001- | |
| 29 | 101-03-13160 | STRAINER | 52001- | |
| 30 | 426-03-21630 | HOSE | 52001- | |
| 31 | 206-03-43340 | CLIP | 52001- | |
| 32 | 426-03-21640 | STAY | 52001- | |
| 33 | 01010-81235 | BOLT | 52001- | |
| 34 | 01643-31232 | WASHER | 52001- |
