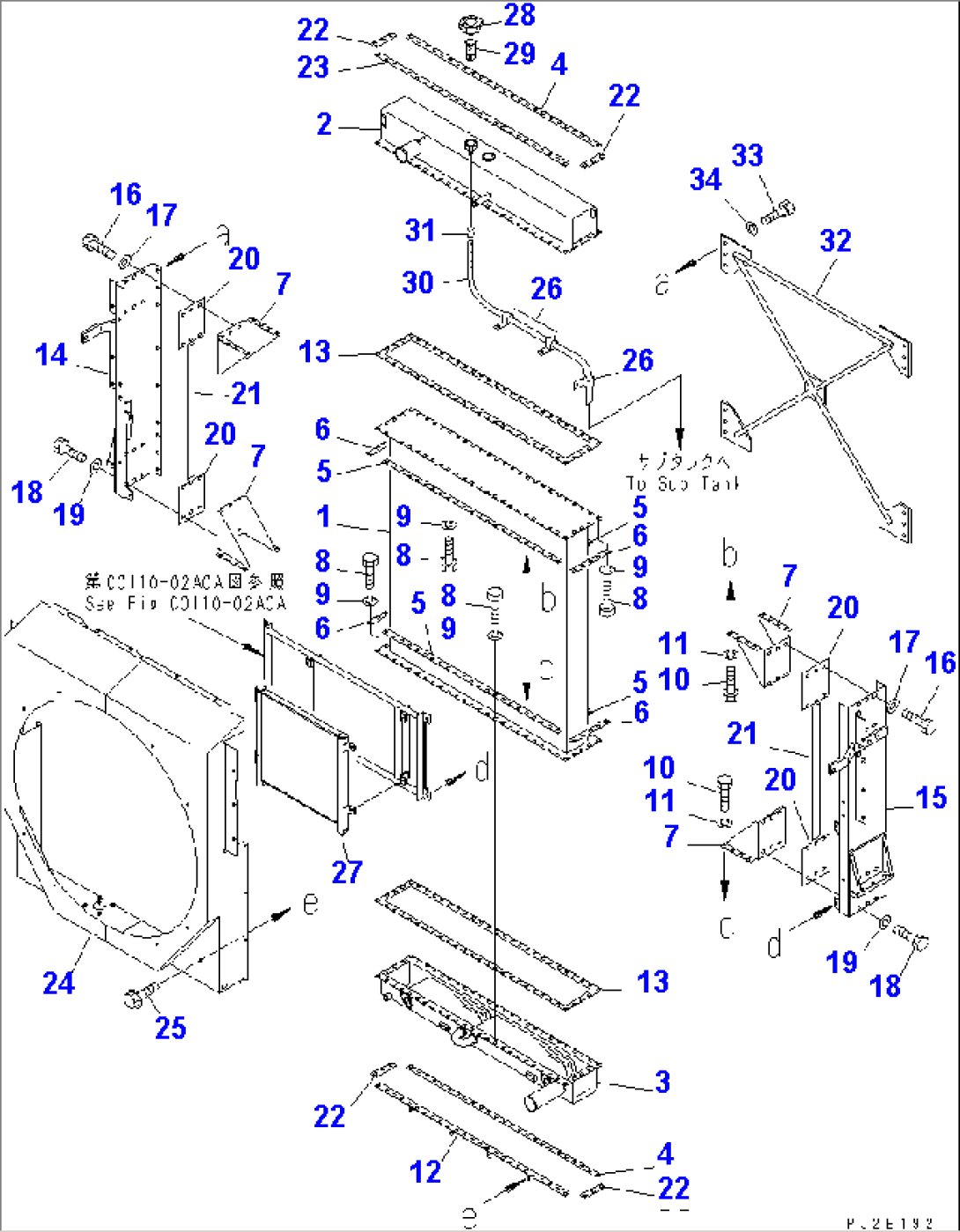

| Item | Part No. | Part Name | Qty | Serial No. |
| 426-03-21781 | RADIATOR ASS'Y | 53001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.C0110-01A0B AND C0110-02A0B. | ||||
| 426-03-22610 | CORE ASS'Y | 53001- | ||
| 1 | 426-03-22620 | CORE | 53001- | |
| 2 | 426-03-22630 | TANK,UPPER | 53001- | |
| 3 | 426-03-22640 | TANK,LOWER | 53001- | |
| 4 | 426-03-22650 | PLATE | 53001- | |
| 5 | 426-03-22660 | PLATE | 53001- | |
| 6 | 426-03-22670 | PLATE | 53001- | |
| 7 | 426-03-21550 | RIB | 52001- | |
| 8 | 01010-81030 | BOLT | 50001- | |
| 9 | 01602-21030 | WASHER,SPRING | 50001- | |
| 10 | 01010-81040 | BOLT | 50001- | |
| 11 | 01602-21030 | WASHER,SPRING | 50001- | |
| 12 | 426-03-22680 | PLATE | 53001- | |
| 13 | 426-03-22690 | GASKET | 53001- | |
| 14 | 426-03-22710 | SUPPORT,R.H. | 53001- | |
| 15 | 426-03-22720 | SUPPORT,L.H. | 53001- | |
| 16 | 01010-81230 | BOLT | 52001- | |
| 17 | 01643-31232 | WASHER | 52001- | |
| 18 | 01010-81240 | BOLT | 52001- | |
| 19 | 01643-31232 | WASHER | 52001- | |
| 20 | 426-03-21270 | PACKING | 50001- | |
| 21 | 426-03-22730 | PACKING | 53001- | |
| 22 | 426-03-11260 | PLATE | 50001- | |
| 23 | 426-03-22740 | PLATE | 53001- | |
| 24 | 426-03-22750 | SHROUD | 53001- | |
| 25 | 01435-01030 | BOLT | 52001- | |
| 26 | 08036-41210 | CLIP | 52001- | |
| 27 | 426-03-21370 | COOLER,FUEL | 52001- | |
| 28 | 426-03-21620 | CAP,PRESSURE | 52001- | |
| 29 | 101-03-13160 | STRAINER | 50001- | |
| 30 | 426-03-22790 | HOSE | 53001- | |
| 31 | 206-03-43340 | CLIP | 52001- | |
| 32 | 426-03-21640 | STAY | 52001- | |
| 33 | 01010-81235 | BOLT | 52001- | |
| 34 | 01643-31232 | WASHER | 50001- |
