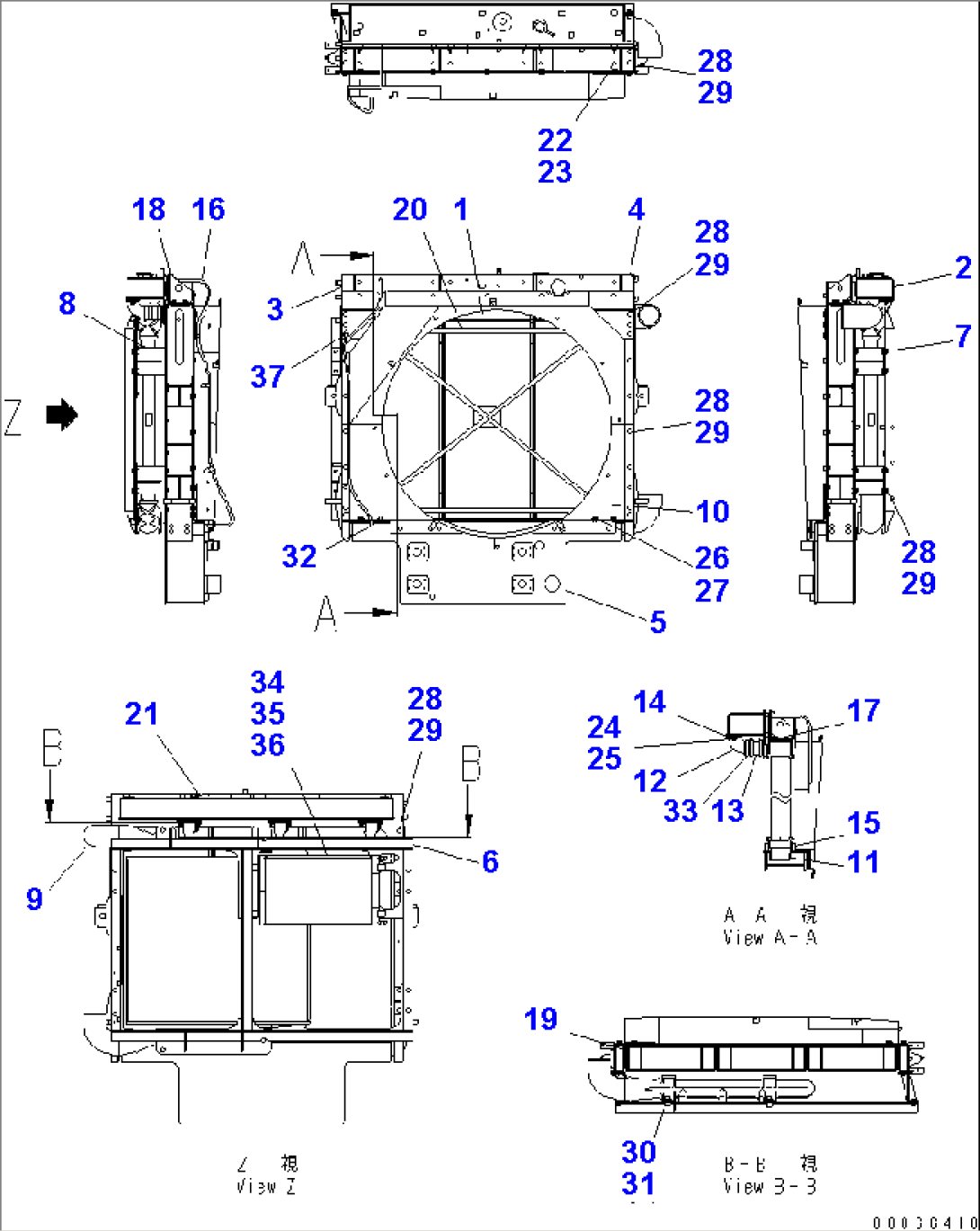

| Item | Part No. | Part Name | Qty | Serial No. |
| 566-03-81204 | RADIATOR ASS'Y | 11001- | ||
| 1 | 566-03-81112 | CORE | 11001- | |
| 2 | 566-03-81121 | TANK | 11001- | |
| 3 | 566-03-81131 | SUPPORT | 11001- | |
| 4 | 566-03-81141 | SUPPORT | 11001- | |
| 5 | 566-03-81151 | TANK | 11001- | |
| 6 | 566-03-81162 | FRAME | 11001- | |
| 7 | 566-03-81171 | BRACKET | 11001- | |
| 8 | 566-03-81181 | BRACKET | 11001- | |
| 9 | 566-03-81191 | AFTER COOLER ASS'Y | 11001- | |
| 10 | 566-03-81213 | SHROUD | 11001- | |
| 11 | 566-03-81231 | O-RING | 11001- | |
| 12 | 566-03-81241 | PIPE | 11001- | |
| 13 | 566-03-81251 | HOSE | 11001- | |
| 14 | 566-03-81261 | GASKET | 11001- | |
| 15 | 566-03-81280 | PACKING | 11001- | |
| 16 | 07261-30916 | HOSE | 11001- | |
| 17 | 566-03-81310 | PACKING | 11001- | |
| 18 | 566-03-81320 | PIPE | 11001- | |
| 19 | 566-03-81330 | PACKING | 11001- | |
| 20 | 566-03-81340 | CROSS | 11001- | |
| 21 | 569-03-81510 | CAP | 11001- | |
| 22 | 01010-81020 | BOLT | 11001- | |
| 23 | 01643-31032 | WASHER | 11001- | |
| 24 | 01010-81025 | BOLT | 11001- | |
| 25 | 01643-31032 | WASHER | 11001- | |
| 26 | 01010-81225 | BOLT | 11001- | |
| 27 | 01643-31232 | WASHER | 11001- | |
| 28 | 01010-81230 | BOLT | 11001- | |
| 29 | 01643-31232 | WASHER | 11001- | |
| 30 | 01010-81240 | BOLT | 11001- | |
| 31 | 01643-31232 | WASHER | 11001- | |
| 32 | 11Y-09-11140 | CLIP | 11001- | |
| 33 | 07299-00070 | CLAMP | 11001- | |
| 34 | 56D-07-21101 | CONDENSER ASS'Y | 11001- | |
| 34 | 56E-07-21133 | CONDENSER ASS'Y | 11001- | |
| 35 | 01010-80830 | BOLT | 11001- | |
| 36 | 01643-30823 | WASHER | 11001- | |
| 37 | 04434-51712 | CLIP | 11001- |
