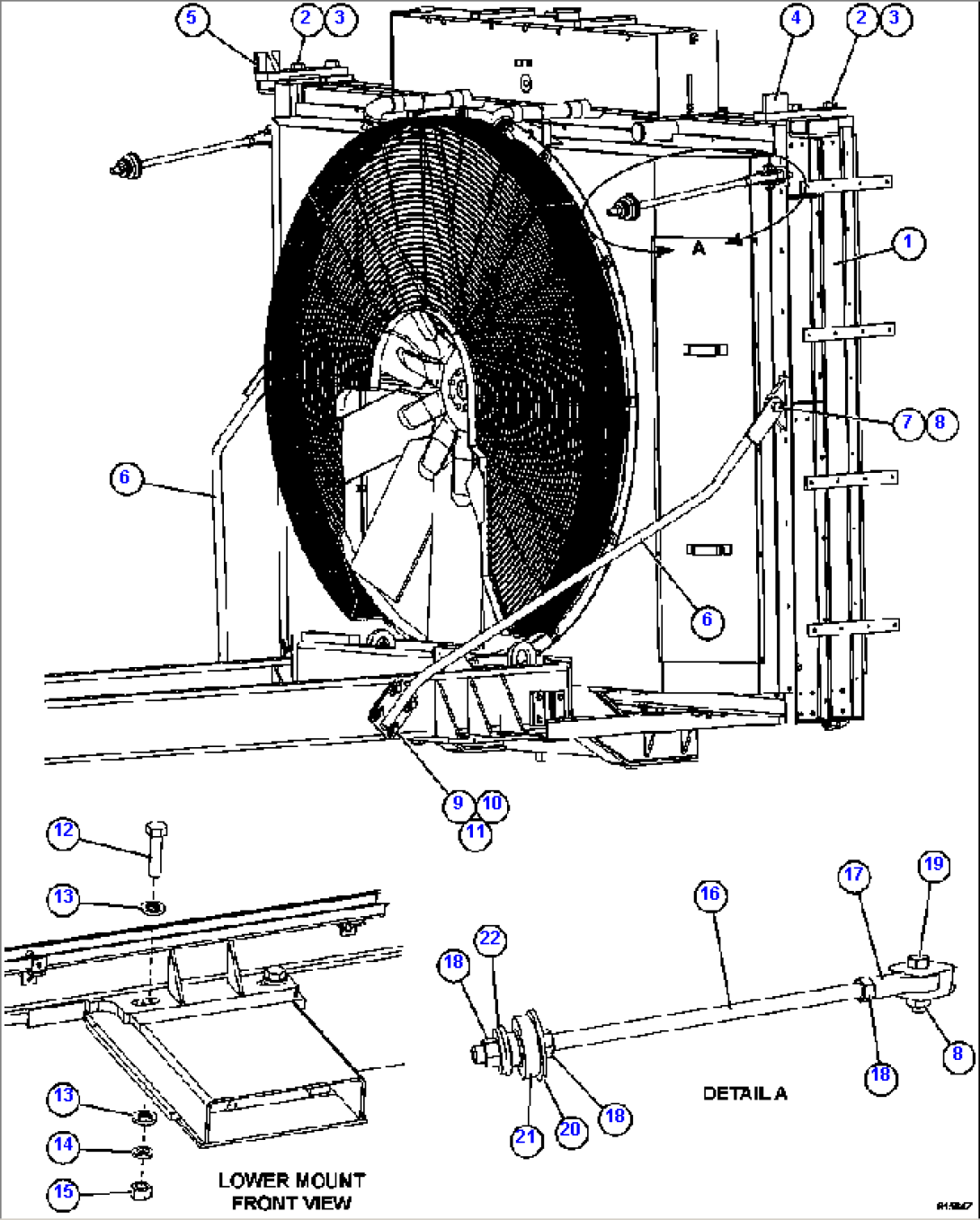

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | PC2169 | RADIATOR & SHROUD ASSEMBLY (SEE INDEX) | ||
| 2 | VN9106 | CAPSCREW - 1 1/4" - 7NC X 3" | ||
| 3 | WA0366 | FLAT WASHER - 1 1/4" | ||
| 4 | EH8107 | BRACKET - RH | ||
| 5 | EH8108 | BRACKET - LH | ||
| 6 | XB4715 | BAR, STABILIZER | ||
| 7 | C1667 | CAPSCREW - 1" - 8NC X 2 1/2" | ||
| 8 | VH8186 | LOCKNUT - 1" - 8NC | ||
| 9 | MM0038 | CAPSCREW - M16 X 2.00 X 35 | ||
| 10 | MM0474 | LOCKWASHER - M16 | ||
| 11 | 01643-31645 | FLAT WASHER - M16 | ||
| 12 | MM0091 | CAPSCREW - M20 X 2.50 X 80 | ||
| 13 | 01643-32060 | FLAT WASHER - M20 | ||
| 14 | MM0475 | LOCKWASHER - M20 | ||
| 15 | MM0182 | NUT - M20 X 2.50 | ||
| 16 | EF3378 | ROD, THREADED | ||
| 17 | PB6831 | ROD END | ||
| 18 | C1532 | NUT (SPECIAL) | ||
| 19 | E3909 | CAPSCREW - 1" - 8NC X 3 1/4" | ||
| 20 | TK6567 | FLAT WASHER (SPECIAL) | ||
| 21 | TG6760 | MOUNT, RUBBER | ||
| 22 | TK6566 | FLAT WASHER (SPECIAL) |
