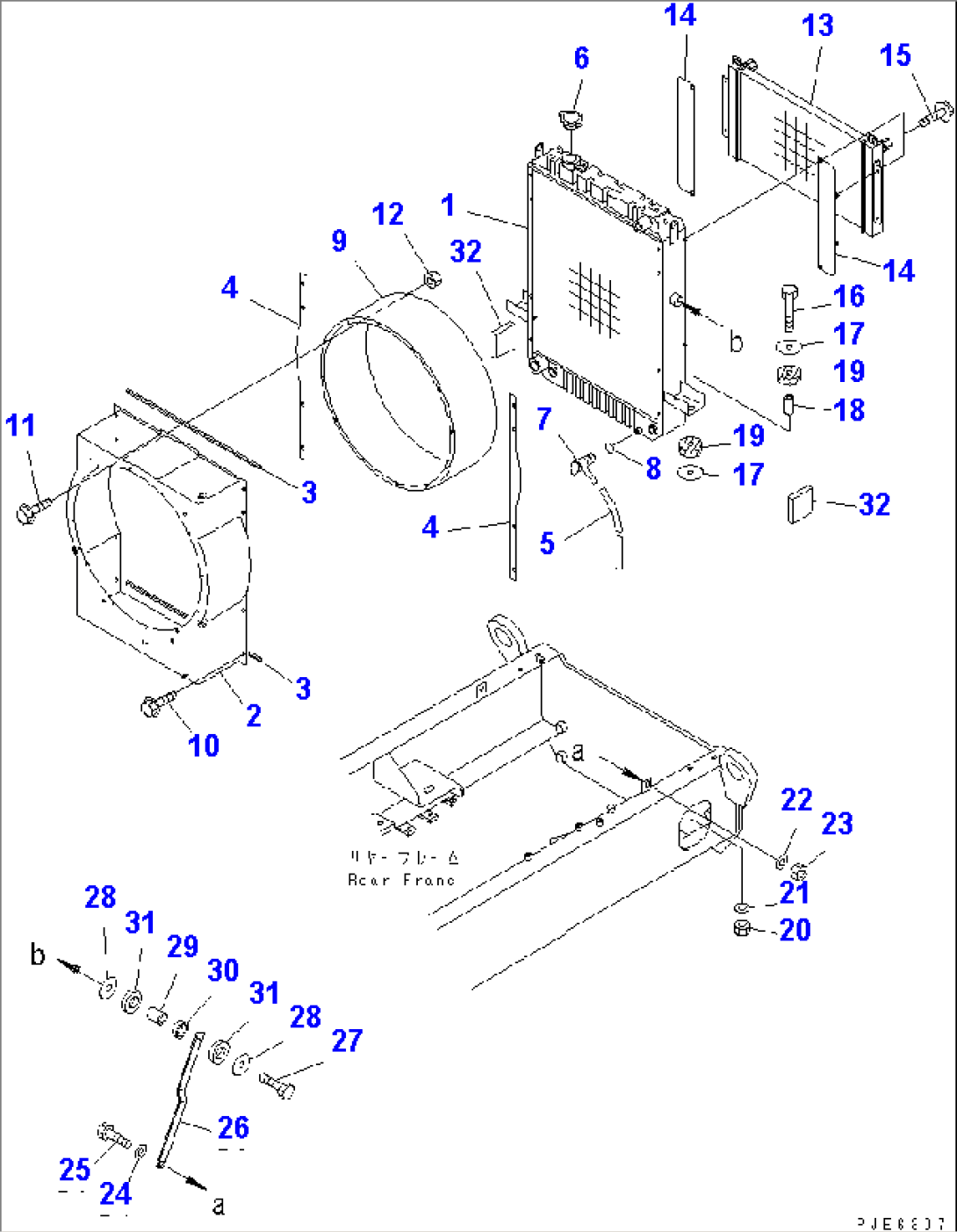

| Item | Part No. | Part Name | Qty | Serial No. |
| 417-03-21061 | RADIATOR ASS'Y | 54516-54516 | ||
| 417-03-21060 | RADIATOR ASS'Y | 53001-54515 | ||
| 417-03-21321 | RADIATOR ASS'Y | 54516-54516 | ||
| 417-03-21320 | RADIATOR | 53001-54515 | ||
| 1 | 417-03-21191 | RADIATOR CORE ASS'Y | 54516-54516 | |
| 1 | 417-03-21190 | RADIATOR CORE ASS'Y | 53001-54515 | |
| 2 | 417-03-21182 | SHROUD | 53001-54333 | |
| 3 | 416-03-11131 | PACKING | 53001-54333 | |
| 4 | 417-03-21330 | PLATE | 53001-54333 | |
| 5 | 416-03-11151 | HOSE | 53001-54333 | |
| 6 | 416-03-11170 | CAP | 53001-54333 | |
| 7 | 415-03-11150 | COCK | 53001-54333 | |
| 8 | 415-03-11160 | O-RING | 53001-54333 | |
| 9 | 418-03-21550 | STATOR ASS'Y | 53001-54333 | |
| 10 | 01435-00816 | BOLT | 53001-54333 | |
| 11 | 01435-00610 | BOLT | 53001-54333 | |
| 12 | 01580-10605 | NUT | 53001-54333 | |
| 13 | 418-62-25120 | OIL COOLER ASS'Y | 53001-54333 | |
| 14 | 417-62-25160 | BRACKET | 53001-54333 | |
| 15 | 01435-20816 | BOLT | 53001-54333 | |
| 16 | 01010-81265 | BOLT | 53001-54333 | |
| 17 | 416-03-11210 | WASHER | 53001-54333 | |
| 18 | 415-03-11210 | SPACER | 53001-54333 | |
| 19 | 416-03-11221 | CUSHION | 53001-54333 | |
| 20 | 01580-01210 | NUT | 53001-54333 | |
| 21 | 01643-31232 | WASHER | 53001-54333 | |
| 22 | 01643-31232 | WASHER | 53001-54333 | |
| 23 | 01580-01210 | NUT | 53001-54333 | |
| 24 | 01643-31232 | WASHER | 53001-54333 | |
| 25 | 416-03-11282 | BOLT | 53001-54333 | |
| 26 | 417-03-21160 | PLATE | 53001-54333 | |
| 27 | 01010-81245 | BOLT | 53001-54333 | |
| 28 | 419-43-17920 | WASHER | 53001-54333 | |
| 29 | 416-03-11270 | SPACER | 53001-54333 | |
| 30 | 416-03-11250 | CUSHION | 53001-54333 | |
| 31 | 416-03-11260 | CUSHION | 53001-54333 | |
| 32 | 417-54-22630 | SHEET | 53001-54333 |
