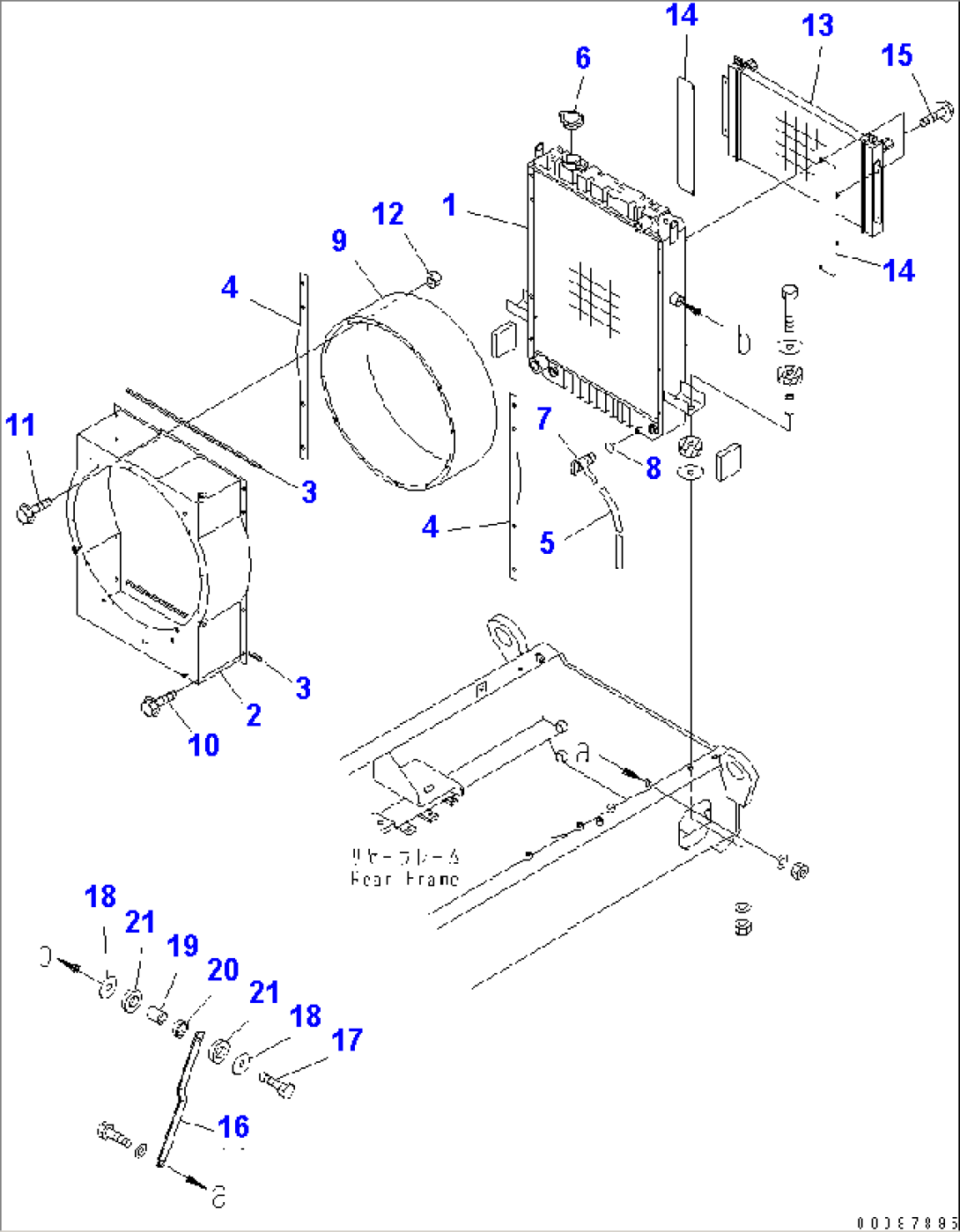

| Item | Part No. | Part Name | Qty | Serial No. |
| 417-03-21061 | RADIATOR ASS'Y | 54572- | ||
| 417-03-21321 | RADIATOR ASS'Y | 54572- | ||
| 1 | 417-03-21191 | RADIATOR CORE ASS'Y | 54572- | |
| 2 | 417-03-21182 | SHROUD | 54572- | |
| 3 | 416-03-11131 | PACKING | 54572- | |
| 4 | 417-03-21330 | PLATE | 54572- | |
| 5 | 416-03-11151 | HOSE | 54572- | |
| 6 | 416-03-11170 | CAP | 54572- | |
| 7 | 415-03-11150 | COCK | 54572- | |
| 8 | 415-03-11160 | O-RING | 54572- | |
| 9 | 418-03-21550 | STATOR ASS'Y | 54572- | |
| 10 | 01435-00816 | BOLT | 54572- | |
| 11 | 01435-00610 | BOLT | 54572- | |
| 12 | 01580-10605 | NUT | 54572- | |
| 13 | 418-62-25120 | OIL COOLER ASS'Y | 54572- | |
| 14 | 417-62-25160 | BRACKET | 54572- | |
| 15 | 01435-20816 | BOLT | 54572- | |
| 16 | 417-03-21161 | PLATE | 54572- | |
| 17 | 01010-81245 | BOLT | 54572- | |
| 18 | 419-43-17920 | WASHER | 54572- | |
| 19 | 416-03-11270 | SPACER | 54572- | |
| 20 | 416-03-11250 | CUSHION | 54572- | |
| 21 | 416-03-11260 | CUSHION | 54572- |
