| Item | Part No. | Part Name | Qty | Serial No. |

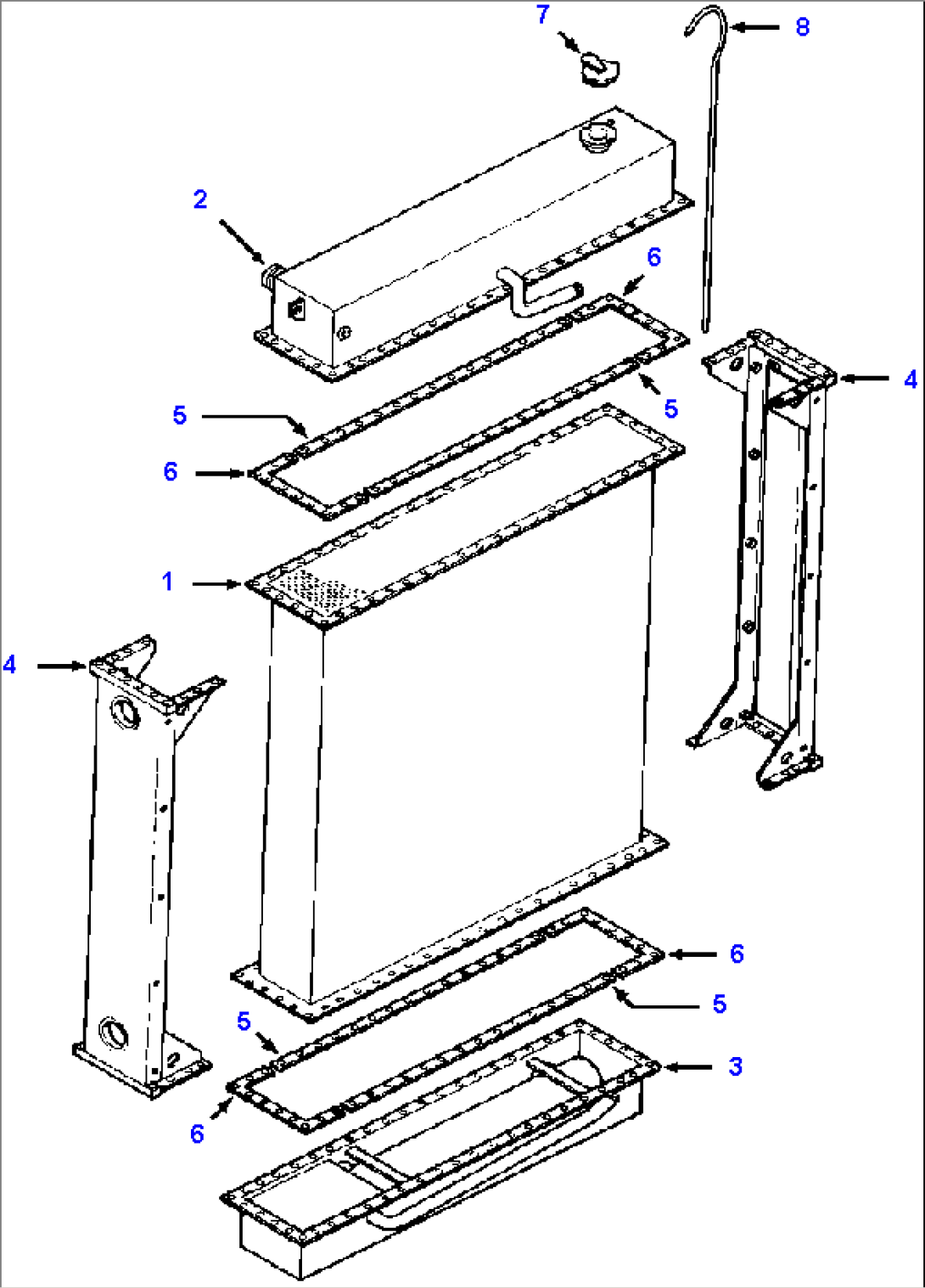

| 1209 720 H93 | RADIATOR ASSEMBLY | |||
| 1 | 1306 046 H1 | CORE AND HEADER | ||
| 2 | 1306 048 H1 | TANK, TOP | ||
| 3 | 1306 049 H1 | TANK, BOTTOM | ||
| 4 | 1306 050 H1 | CHANNEL, SIDE | ||
| 5 | 1306 051 H1 | GASKET, FRONT AND REAR | ||
| 6 | 1306 052 H1 | GASKET, END | ||
| 7 | 73 736 | CAP, RADIATOR | ||
| 8 | (NSS) | TUBE, OVERFLOW | ||
| F1 - PART NUMBER IS A NON-SERVICE PART AND IS LISTED FOR REFERENCE ONLY. | ||||
