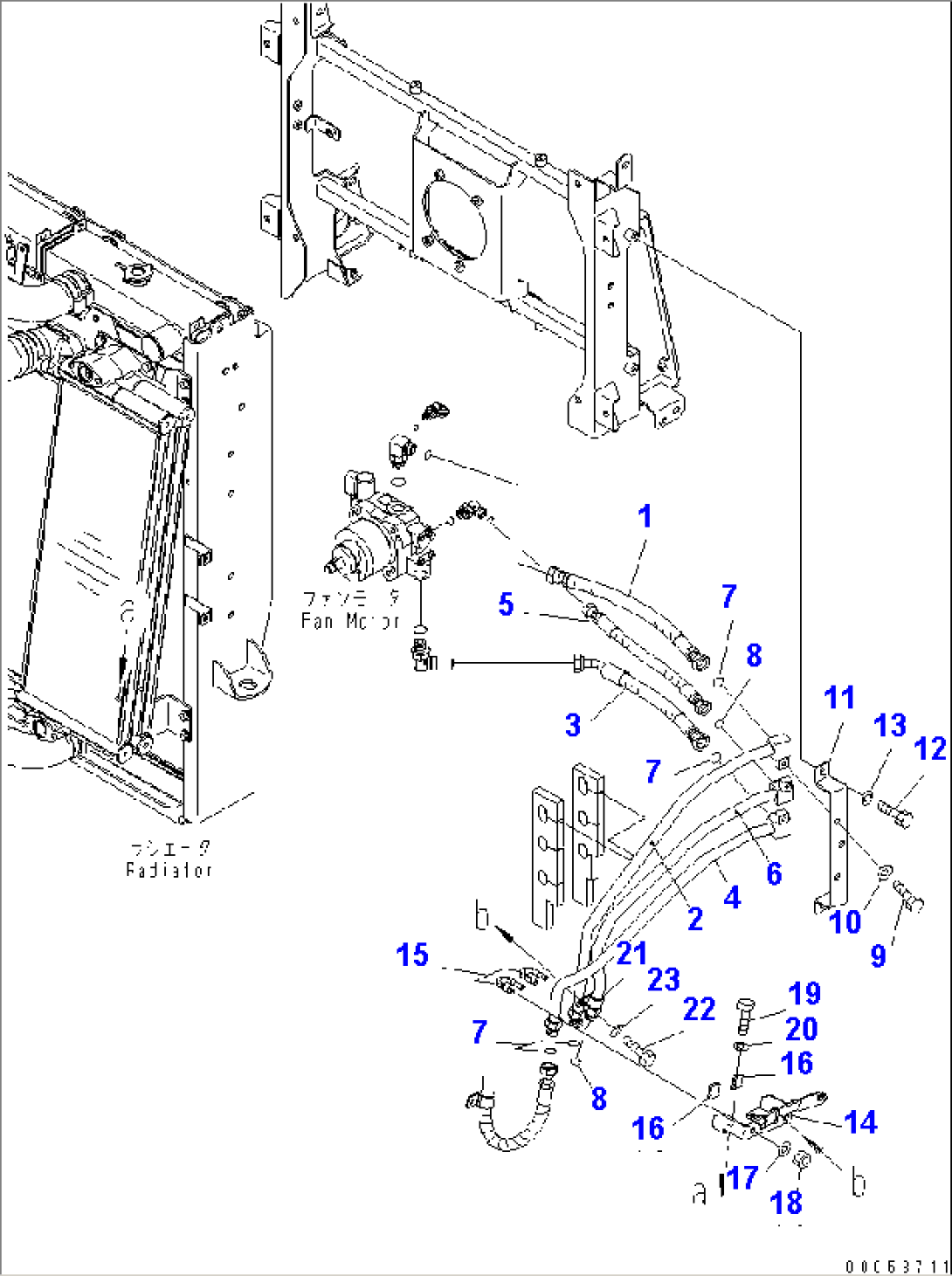

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-62-41480 | HOSE, 445MM | 85001- | |
| 2 | 421-62-41120 | TUBE | 85001- | |
| 3 | 421-62-41240 | HOSE, 385MM | 85001- | |
| 4 | 421-62-41130 | TUBE | 85001- | |
| 5 | 421-62-41490 | HOSE, 380MM | 85001- | |
| 6 | 421-62-41140 | TUBE | 85001- | |
| 7 | 02896-11015 | O-RING | 85001- | |
| 8 | 02896-11012 | O-RING | 85001- | |
| 9 | 01010-81020 | BOLT | 85001- | |
| 10 | 01643-31032 | WASHER | 85001- | |
| 11 | 421-62-41150 | PLATE | 85001- | |
| 12 | 01010-81020 | BOLT | 85001- | |
| 13 | 01643-31032 | WASHER | 85001- | |
| 14 | 421-62-41211 | BRACKET | 85001- | |
| 15 | 07283-32236 | CLIP | 85001- | |
| 16 | 07283-52232 | SEAT | 85001- | |
| 17 | 01643-31032 | WASHER | 85001- | |
| 18 | 01597-01009 | NUT | 85001- | |
| 19 | 01010-81025 | BOLT | 85001- | |
| 20 | 01643-31032 | WASHER | 85001- | |
| 21 | 04434-52110 | CLIP | 85001- | |
| 22 | 01010-81020 | BOLT | 85001- | |
| 23 | 01643-31032 | WASHER | 85001- |
