| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-03-43750 | COVER | H00051- | |
| 2 | 01010-81020 | BOLT | H00051- | |
| 3 | 01643-31032 | WASHER | H00051- | |
| 4 | 418-03-43260 | COVER | H00051- | |
| 5 | 01010-D1020 | BOLT | H00051- | |
| 6 | 01643-71032 | WASHER | H00051- | |
| 7 | (418-03-43860) | BRACKET |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa250pz 6 s/n h00051 up
- C0 cooling system
- Radiator (mounting) (2/2)
Поиск по каталогу

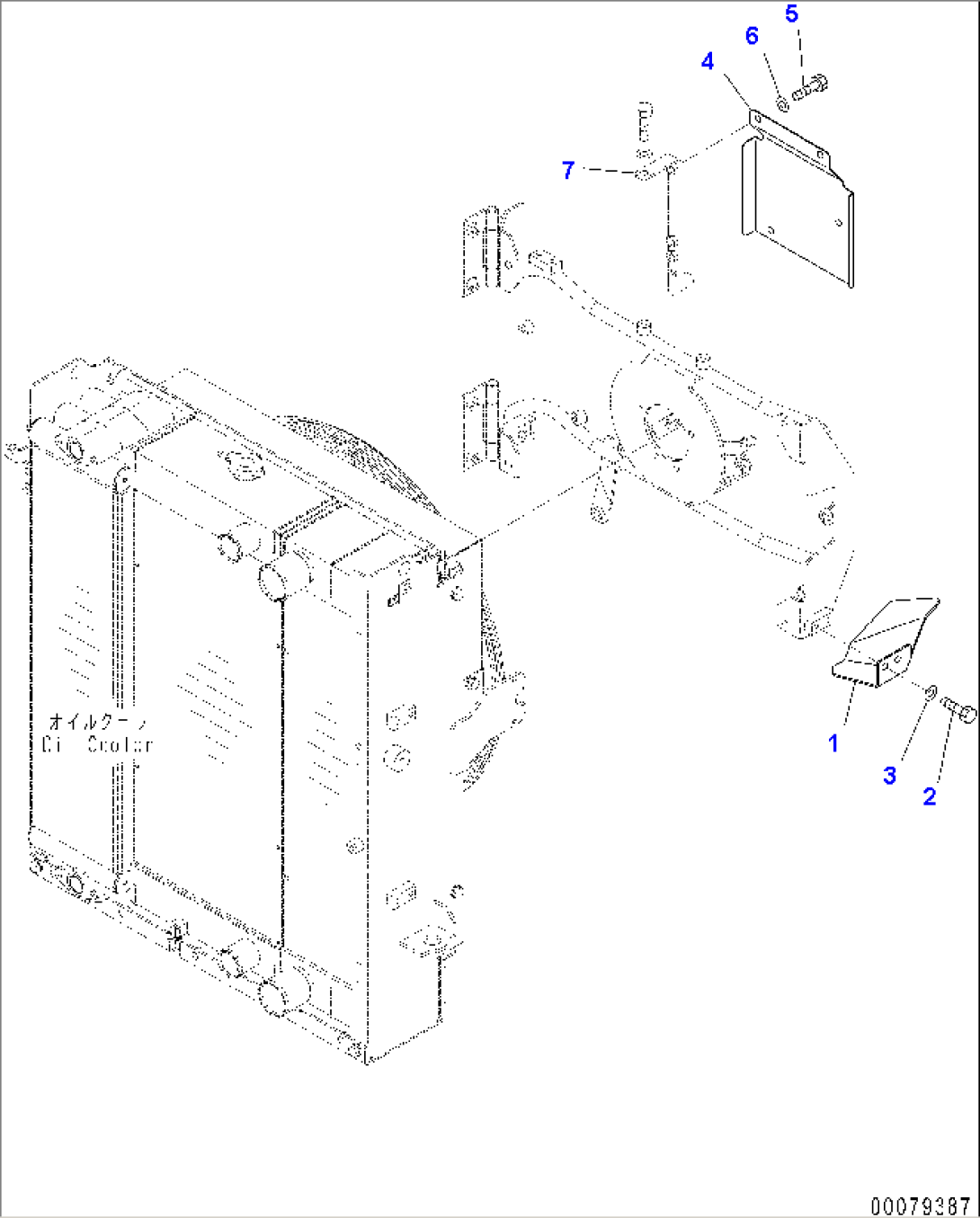

RADIATOR (MOUNTING) (2/2)
