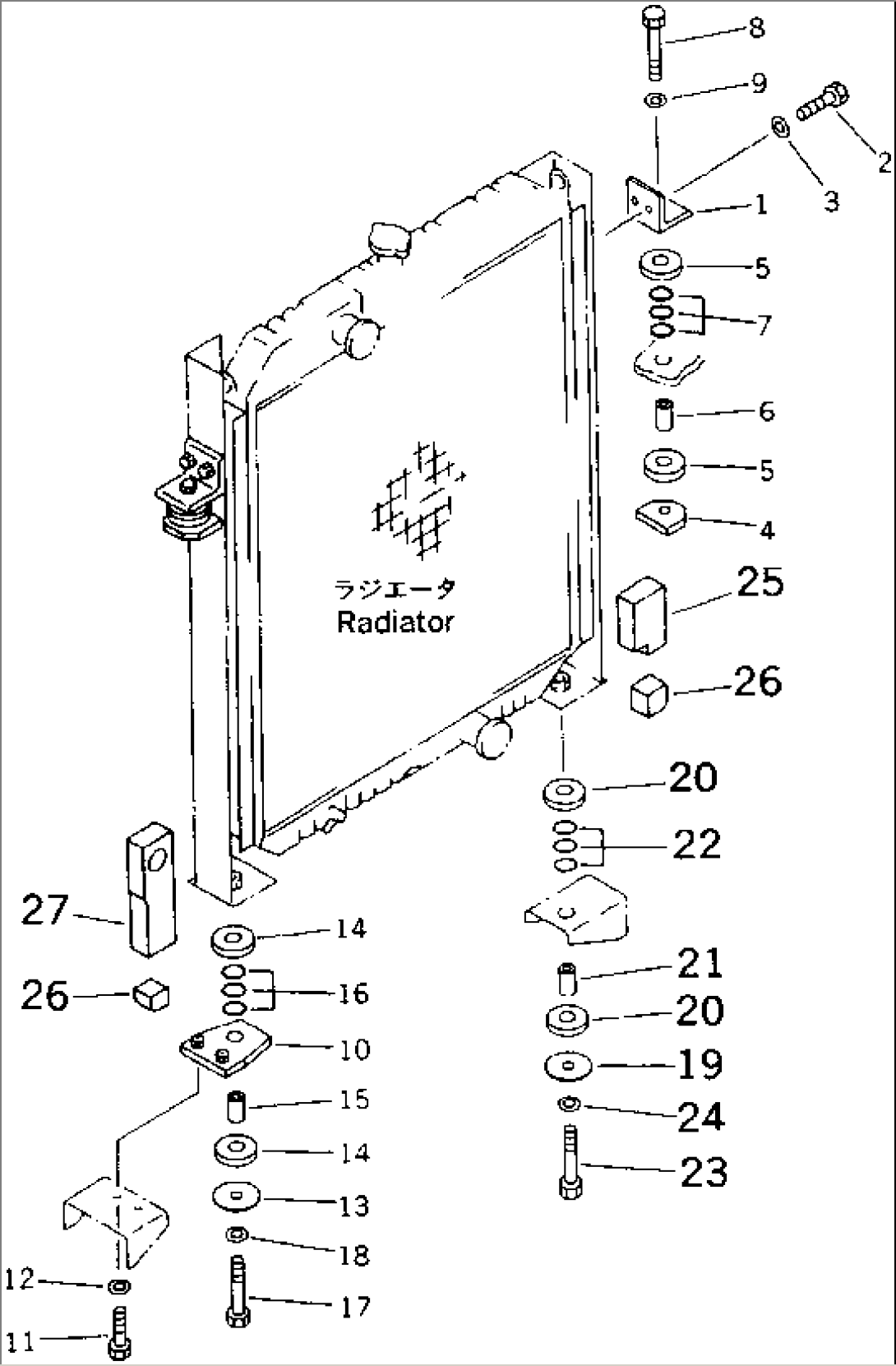

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 207-03-51230 | BRACKET | 1002- | |
| 2 | 01010-81230 | BOLT | 1002- | |
| 3 | 01643-31232 | WASHER | 1002- | |
| 4 | 207-03-51240 | BRACKET | 1002- | |
| 5 | 207-03-51380 | CUSHION | 1002- | |
| 6 | 205-03-71330 | COLLAR | 1002- | |
| 7 | 07000-03022 | O-RING | 1002- | |
| 8 | 01010-81270 | BOLT | 1002- | |
| 9 | 01643-31232 | WASHER | 1002- | |
| 10 | 207-03-51260 | BRACKET | 1002- | |
| 11 | 01010-81235 | BOLT | 1002- | |
| 12 | 01643-31232 | WASHER | 1002- | |
| 13 | 20B-910-3180 | HOLDER | 1002- | |
| 14 | 207-03-51370 | CUSHION | 1002- | |
| 15 | 205-03-71330 | COLLAR | 1002- | |
| 16 | 07000-03022 | O-RING | 1002- | |
| 17 | 01010-81270 | BOLT | 1002- | |
| 18 | 01643-31232 | WASHER | 1002- | |
| 19 | 20B-910-3180 | HOLDER | 1002- | |
| 20 | 207-03-51370 | CUSHION | 1002- | |
| 21 | 20Y-03-11220 | COLLAR | 1002- | |
| 22 | 07000-03022 | O-RING | 1002- | |
| 23 | 01010-81270 | BOLT | 1002- | |
| 24 | 01643-31232 | WASHER | 1002- | |
| 25 | 208-03-61270 | SHEET | 1002- | |
| 26 | 208-03-61280 | SHEET | 1002- | |
| 27 | 208-03-61290 | SHEET | 1002- |
