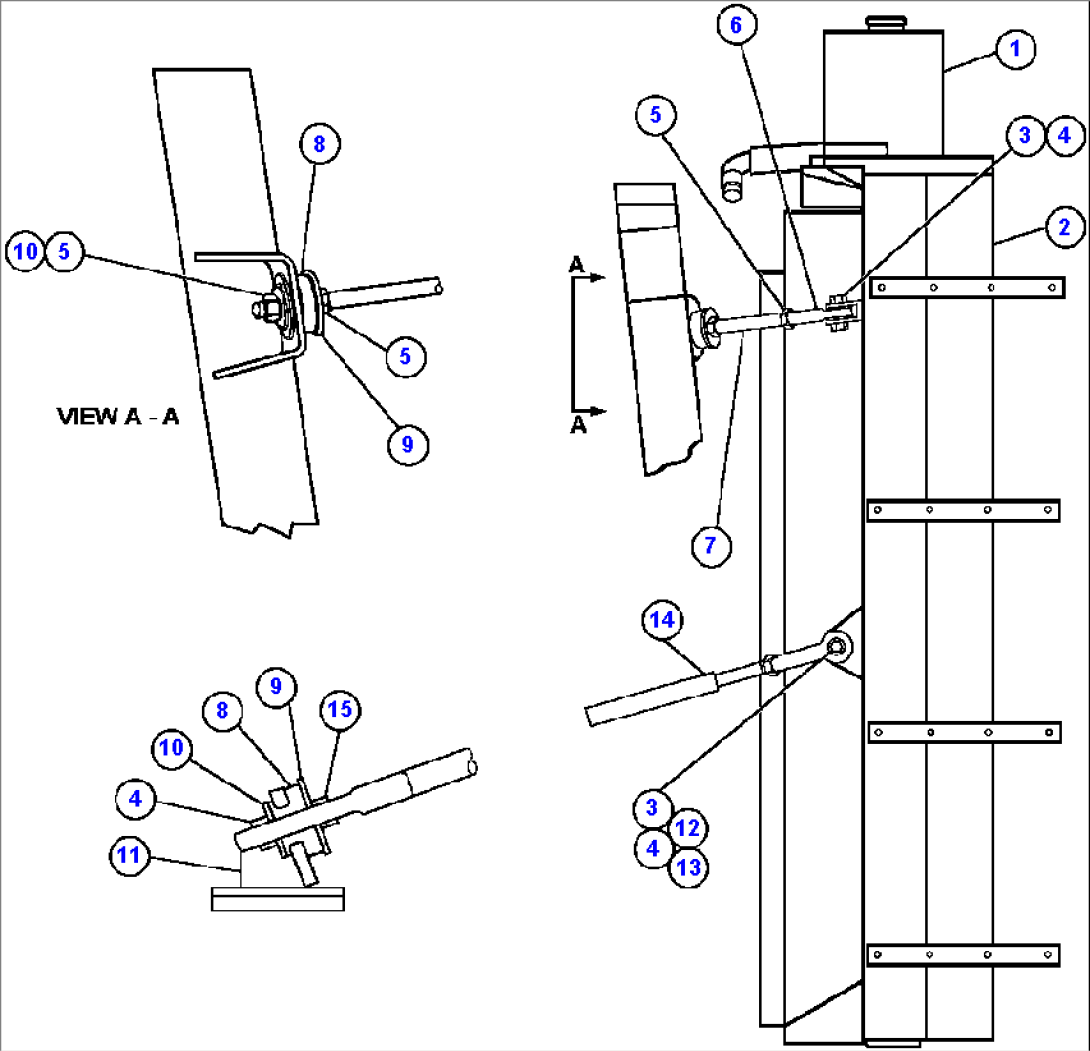

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | BF4332 | TANK, SURGE (INCLUDED IN RADIATOR ASSEMBLY) | ||
| 2 | PC0845 | RADIATOR & SHROUD ASSEMBLY (SEE FIG 41598) | ||
| 3 | E3909 | CAPSCREW - 1" - 8NC X 3 1/4" | ||
| 4 | VH8186 | LOCKNUT - 1" - 8NC | ||
| 5 | C1532 | NUT, HEX | ||
| 6 | PB6831 | END, ROD | ||
| 7 | TY5096 | ROD, THREADED | ||
| 8 | TG6760 | MOUNT, RUBBER | ||
| 9 | TK6567 | WASHER | ||
| 10 | TK6566 | WASHER | ||
| 11 | EH0378 | SUPPORT, RADIATOR (WELDED ON) | ||
| 12 | WA4820 | CLEVIS | ||
| 13 | C5785 | NUT - 1" - 8NC | ||
| 14 | EG4699 | SUPPORT, RADIATOR - R.H. | ||
| 14 | EH2570 | SUPPORT, RADIATOR - L.H. | ||
| 15 | C1531 | JAM NUT - 1" - 8NC |
