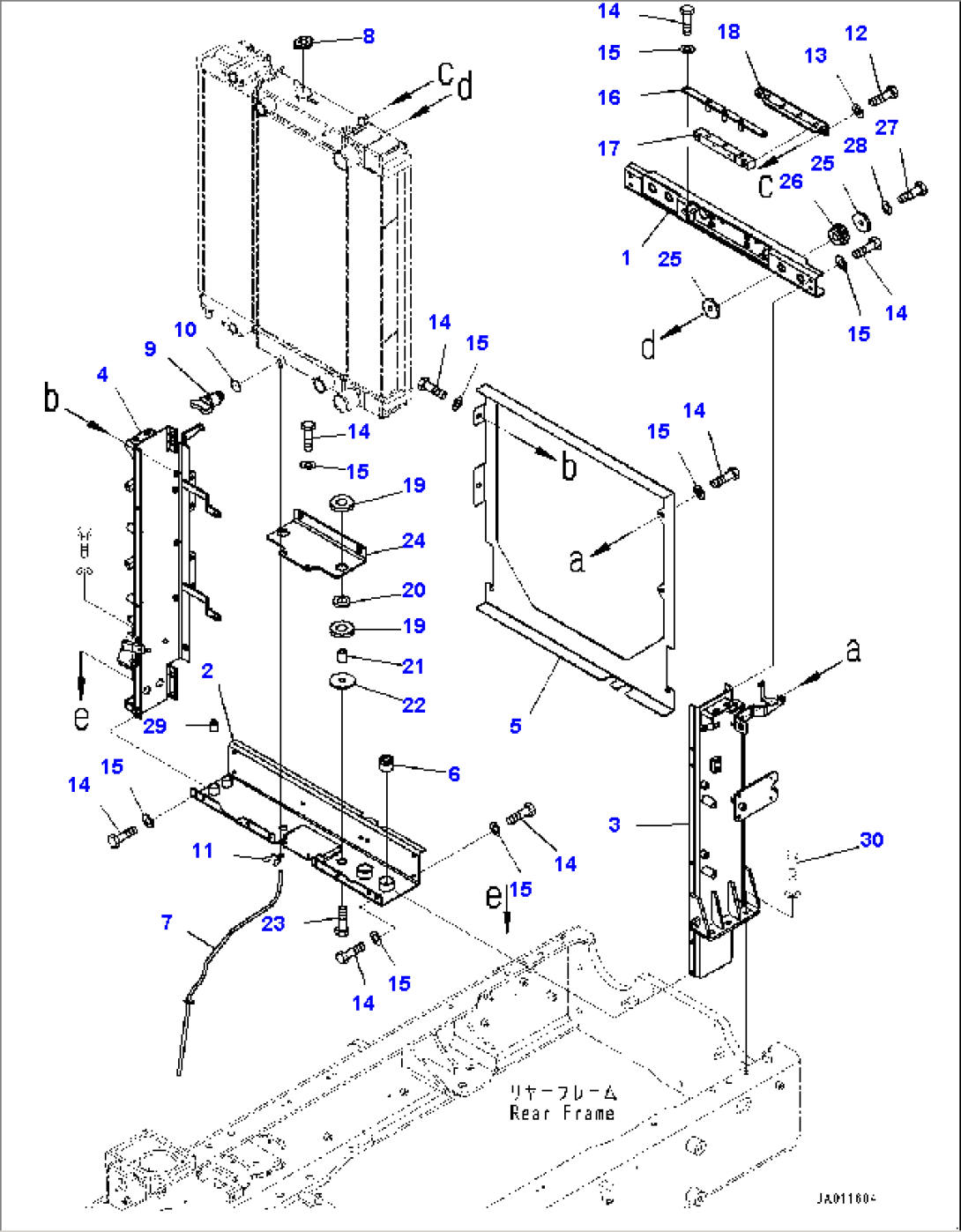

| Item | Part No. | Part Name | Qty | Serial No. |
| 418-03-52101 | Radiator Assembly | 80001- | ||
| 1 | 418-03-52410 | Bracket | 80001- | |
| 2 | 418-03-52420 | Frame | 80001- | |
| 3 | 418-03-52431 | Frame | 80001- | |
| 4 | 418-03-52441 | Frame | 80001- | |
| 5 | 418-03-52450 | Shroud | 80001- | |
| 6 | 23C-03-51751 | Cushion | 80001- | |
| 7 | 419-03-48560 | Hose | 80001- | |
| 8 | 416-S14-2270 | Cap | 80001- | |
| 9 | 205-03-62660 | Plug | 80001- | |
| 10 | 07000-11007 | O-ring | 80001- | |
| 11 | 20Y-03-11330 | Clip | 80001- | |
| 12 | 01010-81030 | Bolt | 80001- | |
| 13 | 01643-31032 | Washer | 80001- | |
| 14 | 01010-81025 | Bolt | 80001- | |
| 15 | 01643-31032 | Washer | 80001- | |
| 16 | 418-03-52660 | Bracket | 80001- | |
| 17 | 423-03-41340 | Rubber | 80001- | |
| 18 | 418-03-52670 | Bracket | 80001- | |
| 19 | 423-03-41370 | Cushion | 80001- | |
| 20 | 423-03-41430 | Cushion | 80001- | |
| 21 | 22T-56-23290 | Spacer | 80001- | |
| 22 | 14X-03-51770 | Washer | 80001- | |
| 23 | 01010-81040 | Bolt | 80001- | |
| 24 | 418-03-52680 | Bracket | 80001- | |
| 25 | 207-03-75590 | Plate | 80001- | |
| 26 | 195-03-41380 | Cushion | 80001- | |
| 27 | 01010-81050 | Bolt | 80001- | |
| 28 | 01643-31032 | Washer | 80001- | |
| 29 | 20Y-03-41590 | Cushion | 80001- | |
| 30 | (01010-81445) | Bolt | - |
