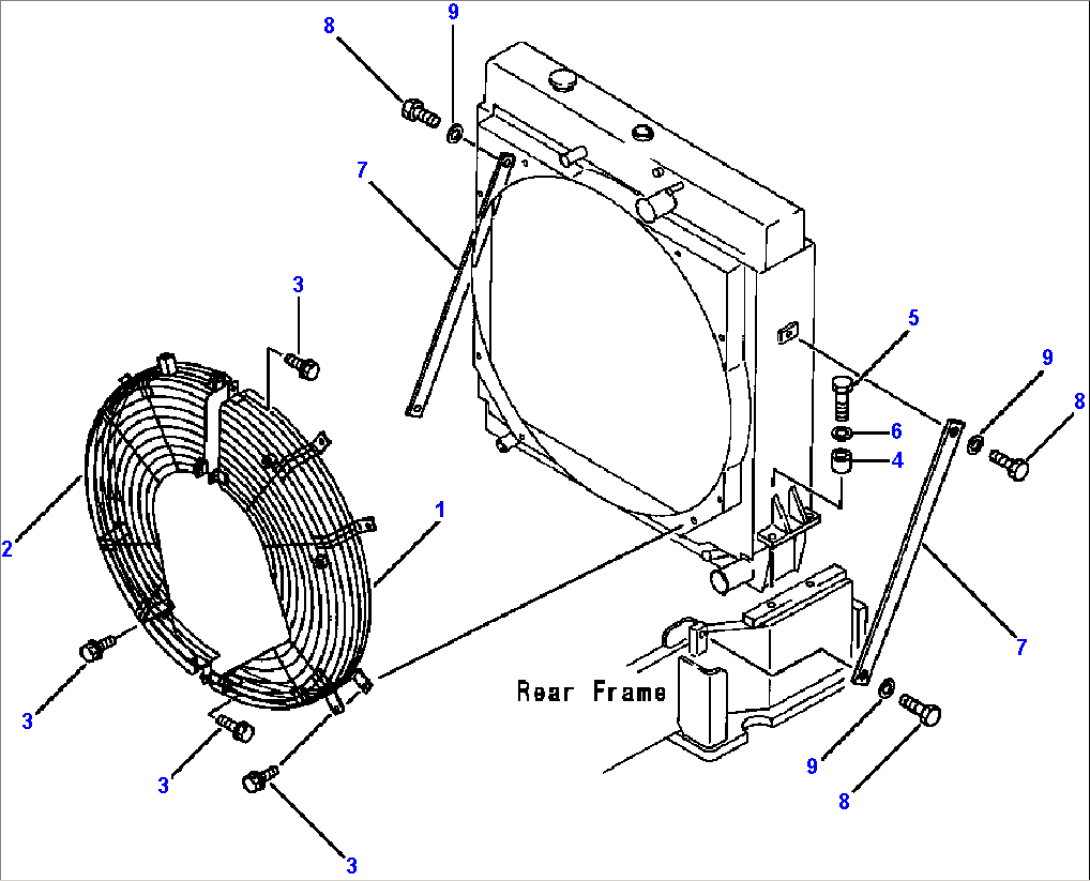

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 425-03-11313 | GUARD, ENGINE FAN - LH | ||
| 2 | 425-03-11323 | GUARD, ENGINE FAN - RH | ||
| 425-963-1350 | GUARD, ENGINE FAN - RH | |||
| 3 | 01435-01020 | BOLT | ||
| 4 | 425-03-12170 | SPACER | ||
| 5 | 01010-32070 | BOLT | ||
| 6 | 01643-32060 | WASHER | ||
| 7 | 425-03-11331 | PLATE | ||
| 8 | 01010-32055 | BOLT | ||
| 9 | 01643-32060 | WASHER | ||
| F1 - USED ON MACHINES WITHOUT AIR CONDITIONER. | ||||
| F2 - USED ON MACHINES WITH AIR CONDITIONER. | ||||
