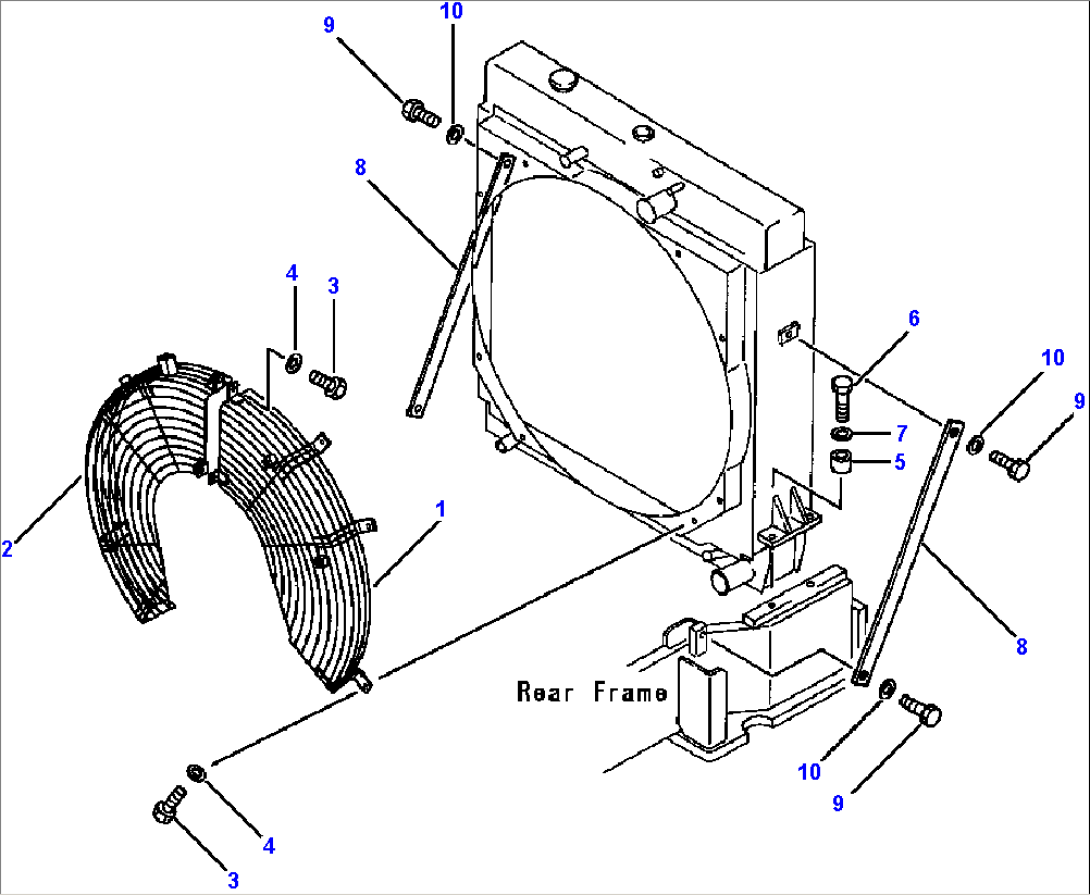

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 425-03-A2540 | GUARD, ENGINE FAN - LH | ||
| 2 | 425-03-A2550 | GUARD, ENGINE FAN - RH | ||
| 3 | 01010-51025 | BOLT, MOUNT GUARD TO SHROUD | ||
| 4 | 01643-31032 | WASHER | ||
| 5 | 425-03-12170 | SPACER | ||
| 6 | 01010-32070 | BOLT, RADIATOR TO REAR FRAME | ||
| 7 | 01643-32060 | WASHER | ||
| 8 | 425-03-11331 | STRUT, RADIATOR MOUNT | ||
| 9 | 01010-32055 | BOLT, STRUT TO RADIATOR AND REAR FRAME | ||
| 10 | 01643-32060 | WASHER |
