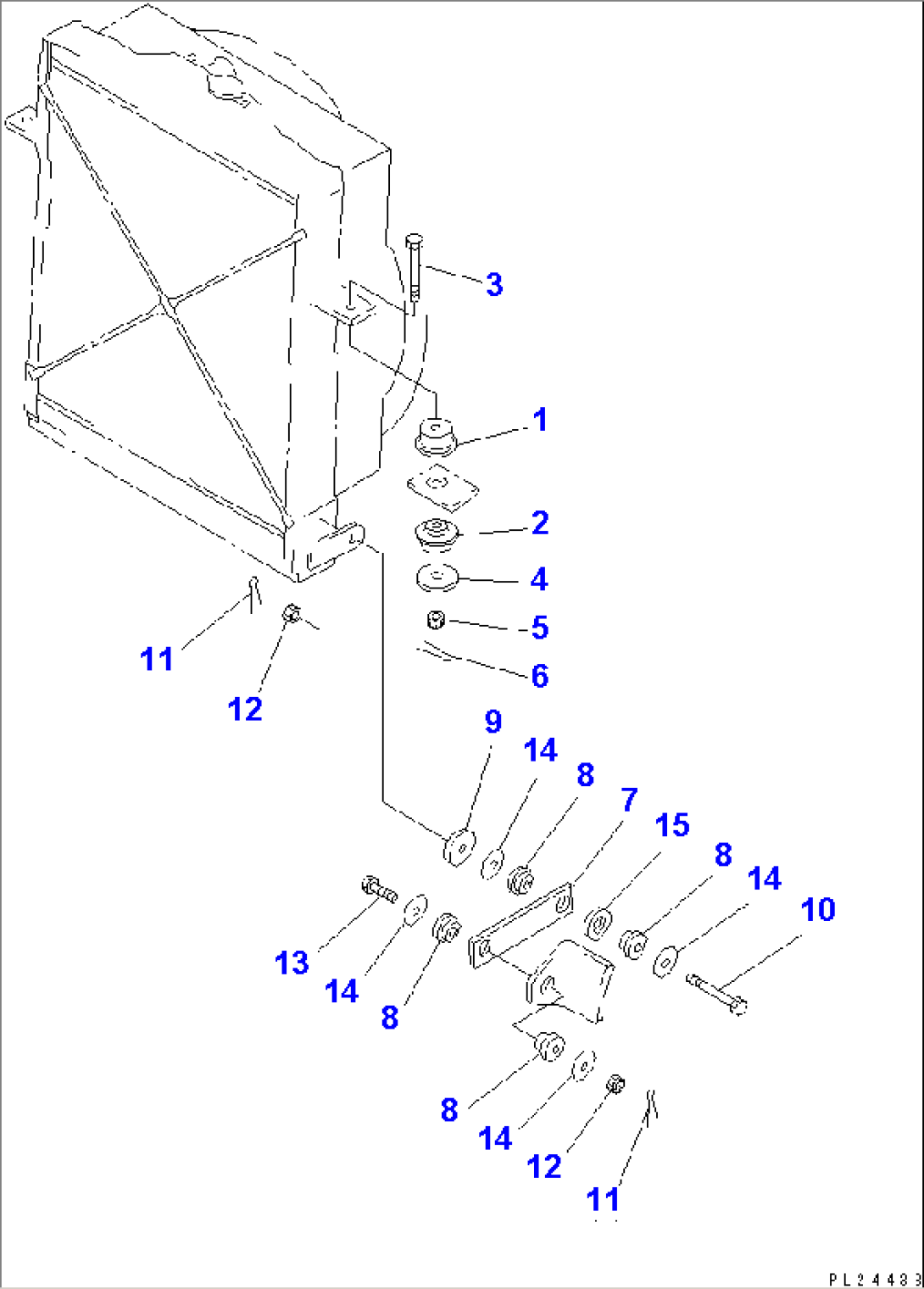

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 565-03-12231 | CUSHION | 1001-1600 | |
| 2 | 565-03-12241 | CUSHION | 1001-1600 | |
| 3 | 01012-81275 | BOLT | 1001-1600 | |
| 4 | 566-03-11230 | SPACER | 1001-1600 | |
| 5 | 01590-31215 | NUT | 1001-1600 | |
| 6 | 04050-13022 | PIN,COTTER | 1001-1600 | |
| 7 | 567-03-41591 | BAR | 1001-1600 | |
| 8 | 565-03-12261 | CUSHION | 1001-1600 | |
| 9 | 711-43-14230 | HOLDER | 1001-1600 | |
| 10 | 01012-81255 | BOLT | 1001-1600 | |
| 11 | 04050-13022 | PIN,COTTER | 1001-1600 | |
| 12 | 01590-31215 | NUT | 1001-1600 | |
| 13 | 01012-81240 | BOLT | 1001-1600 | |
| 14 | 565-54-15180 | WASHER | 1001-1600 | |
| 15 | 01640-22232 | WASHER | 1001-1600 |
