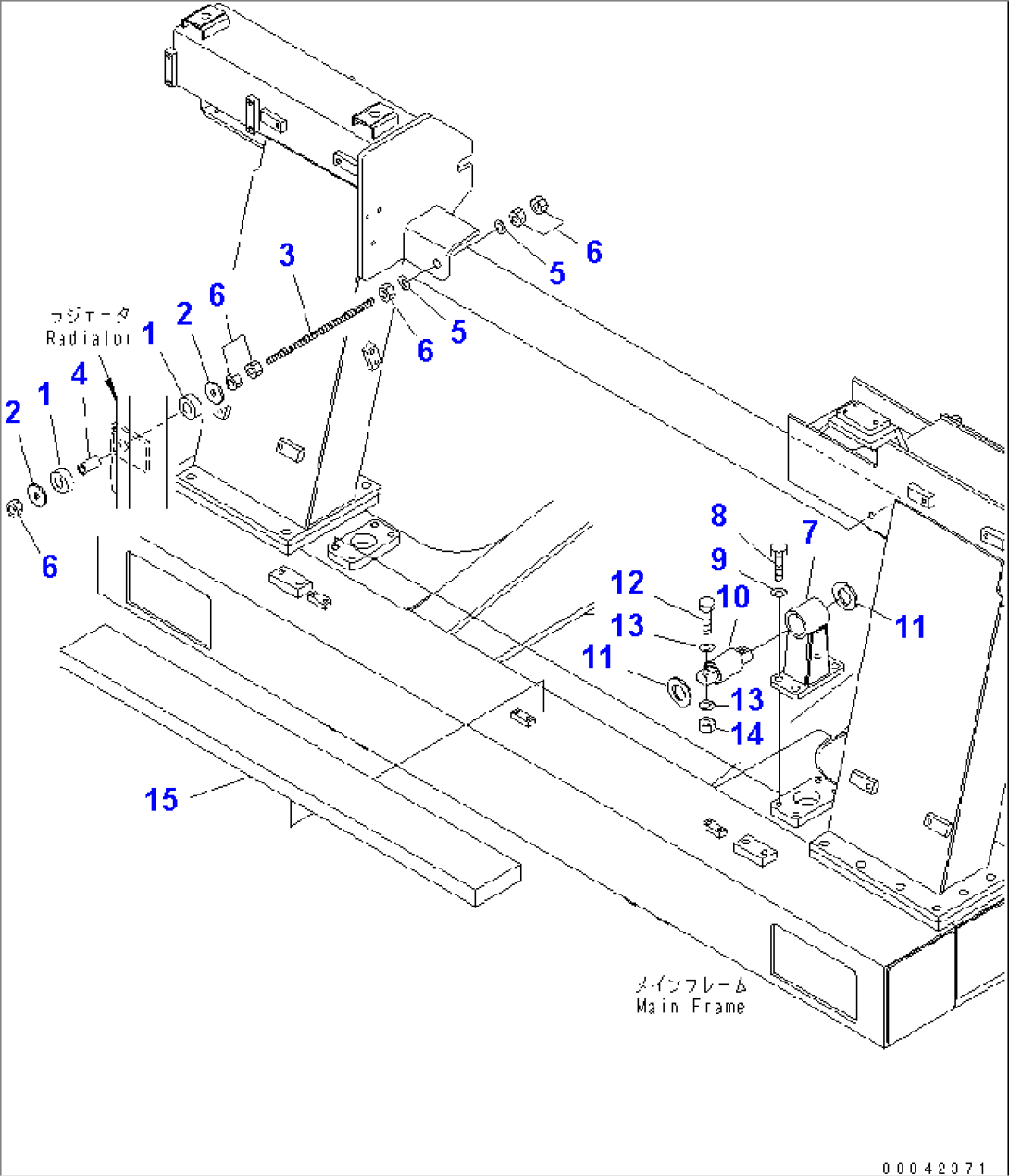

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 285-03-11160 | CUSHION | 3001- | |
| 2 | 285-03-11170 | PLATE | 3001- | |
| 3 | 569-03-61780 | ROD | 3001- | |
| 4 | 566-03-42270 | SPACER | 3001- | |
| 5 | 01643-31645 | WASHER | 3001- | |
| 6 | 01582-11613 | NUT | 3001- | |
| 7 | 561-03-81710 | BRACKET | 3001- | |
| 8 | 01010-81645 | BOLT | 3001- | |
| 9 | 01643-31645 | WASHER | 3001- | |
| 10 | 581-61-21520 | CUSHION | 3001- | |
| 11 | 561-03-81230 | WASHER | 3012- | |
| 11 | 01640-24260 | WASHER | 3001-3011 | |
| 12 | 01010-81490 | BOLT | 3001- | |
| 13 | 01643-31445 | WASHER | 3001- | |
| 14 | 01596-01413 | NUT | 3001- | |
| 15 | 566-03-81840 | SEAL | 3001- |
