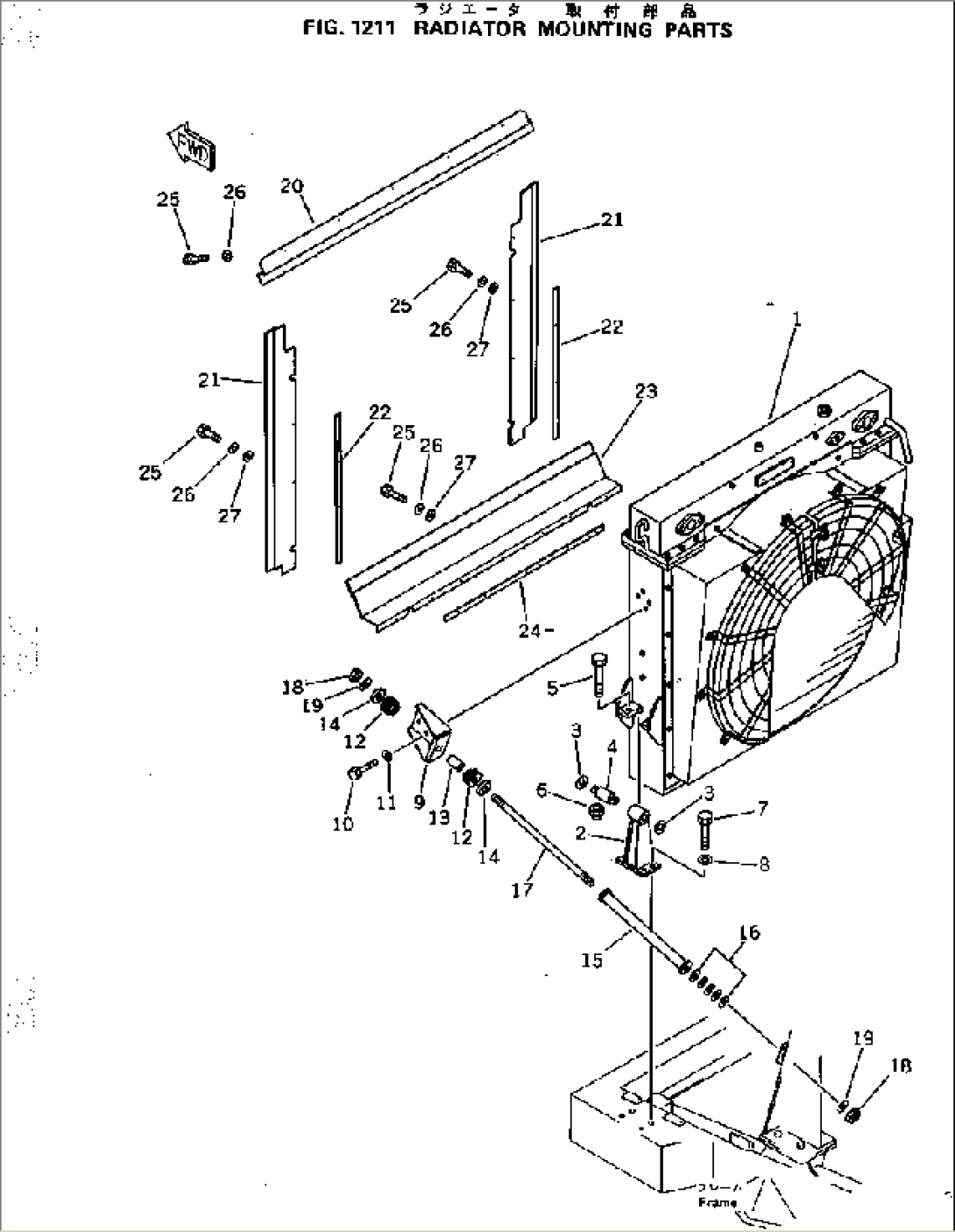

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (561-03-41001) | RADIATOR ASS'Y,(FOR CLUSTER GAUGE) | 1501- | |
| (561-03-41600) | RADIATOR ASS'Y,(FOR MONITOR PANEL) | 1501- | ||
| 2 | 561-03-31720 | BRACKET | 1501- | |
| 3 | 01640-24260 | WASHER | 1501- | |
| 4 | 581-61-21520 | CUSHION | 1501- | |
| 5 | 01010-51480 | BOLT | 1501- | |
| 6 | 01598-01415 | NUT | 1501- | |
| 7 | 01010-51645 | BOLT | 1501- | |
| 8 | 01643-31645 | WASHER | 1501- | |
| 9 | 561-03-31310 | BRACKET,L.H. | 1501- | |
| 561-03-31320 | BRACKET,R.H. | 1501- | ||
| 10 | 01010-51435 | BOLT | 1501- | |
| 11 | 01643-31445 | WASHER | 1501- | |
| 12 | 566-54-12211 | CUSHION | 1501- | |
| 13 | 566-54-21910 | BUSHING | 1501- | |
| 14 | 566-54-21920 | PLATE | 1501- | |
| 15 | 561-03-31330 | TUBE | 1501- | |
| 16 | 411-03-11330 | PLATE | 1501- | |
| 17 | 561-03-31340 | ROD | 1501- | |
| 18 | 01580-11613 | NUT | 1501- | |
| 19 | 01643-31645 | WASHER | 1501- | |
| 20 | 561-03-31810 | BAFFLE | 1501- | |
| 21 | 561-03-31820 | BAFFLE | 1501- | |
| 22 | 561-03-31840 | PLATE | 1501- | |
| 23 | 561-03-31830 | BAFFLE | 1501- | |
| 24 | 561-03-31850 | PLATE | 1501- | |
| 25 | 01010-51230 | BOLT | 1501- | |
| 26 | 01602-21236 | WASHER | 1501- | |
| 27 | 01643-31232 | WASHER | 1501- |
