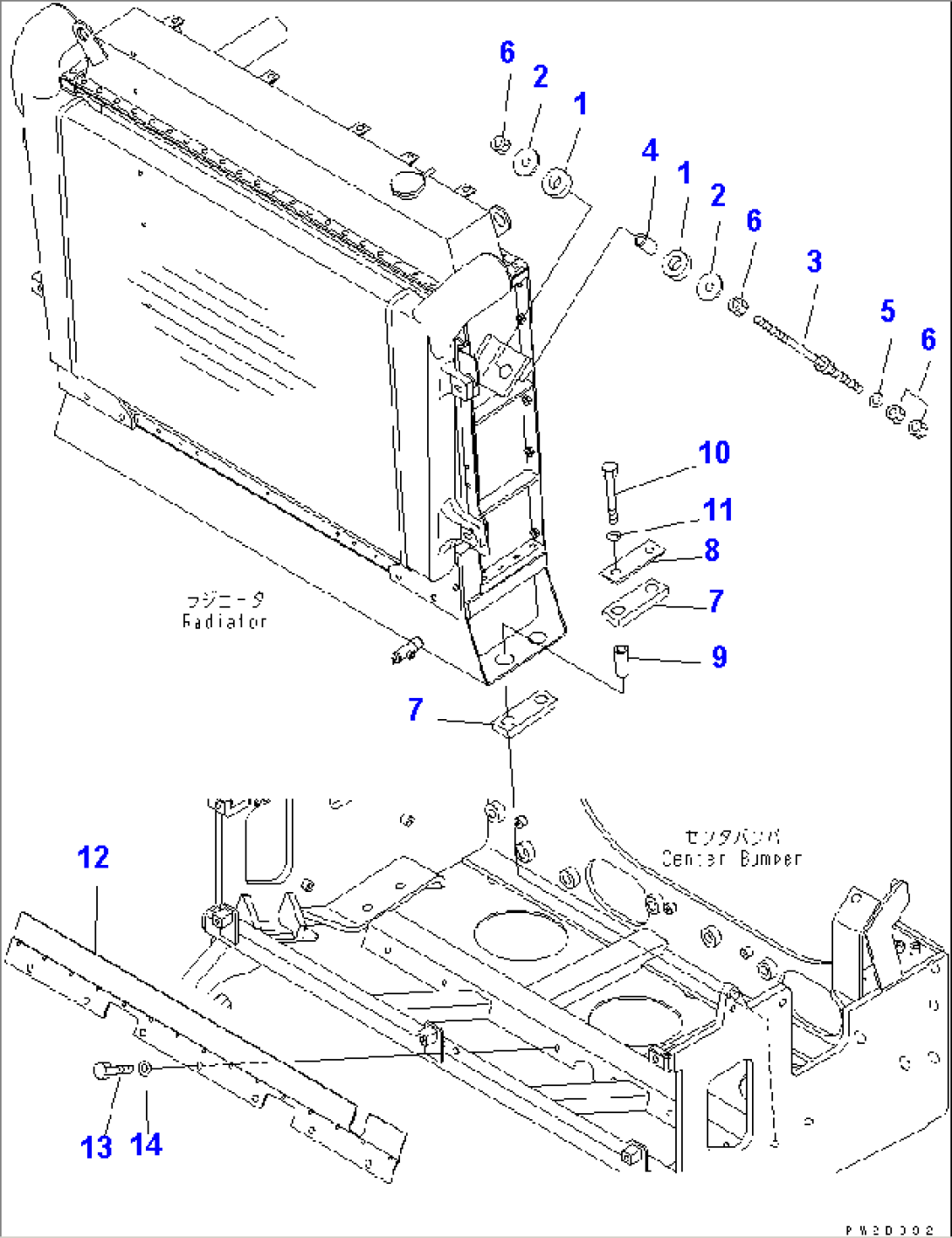

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 285-03-11160 | CUSHION | 1001- | |
| 2 | 285-03-11170 | PLATE | 1001- | |
| 3 | 569-03-42340 | ROD | 1001- | |
| 4 | 566-03-42270 | SPACER | 1001- | |
| 5 | 01643-31645 | WASHER | 1001- | |
| 6 | 01582-11613 | NUT | 1001- | |
| 7 | 285-03-11120 | CUSHION | 1001- | |
| 8 | 285-03-11140 | PLATE | 1001- | |
| 9 | 566-03-42270 | SPACER | 1001- | |
| 10 | 01010-81695 | BOLT | 1001- | |
| 11 | 01643-31645 | WASHER | 1001- | |
| 12 | 56B-03-11842 | BAFFLE | 1001- | |
| 12 | 04400-00414 | RIVET | 1001- | |
| 13 | 01010-81025 | BOLT | 1001- | |
| 14 | 01643-31032 | WASHER | 1001- |
