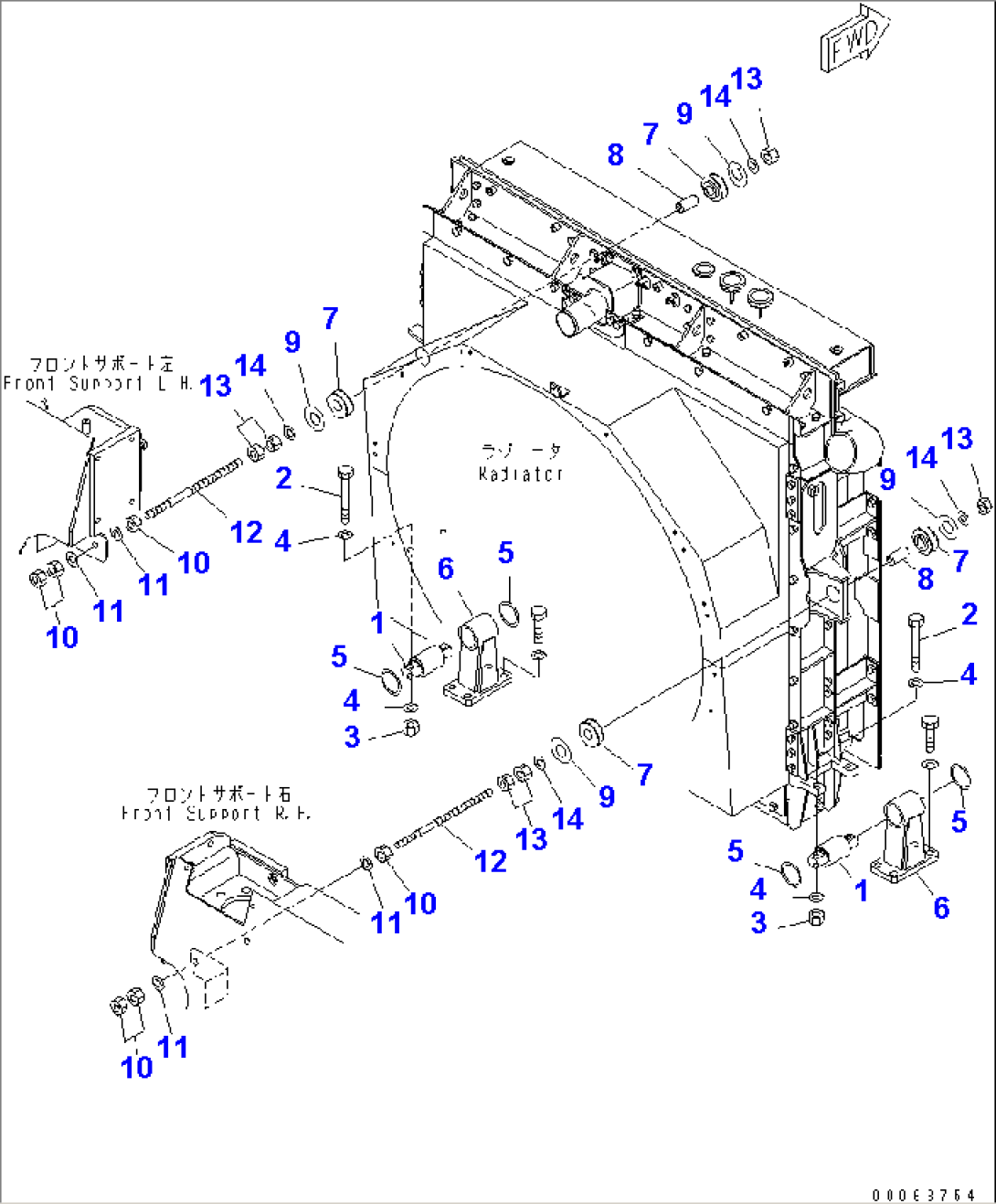

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 581-61-21520 | CUSHION | 10271- | |
| 2 | 01010-81490 | BOLT | 10271- | |
| 3 | 01596-01413 | NUT | 10271- | |
| 4 | 01643-31445 | WASHER | 10271- | |
| 5 | 01640-24260 | WASHER | 10271- | |
| 6 | 561-03-81710 | BRACKET | 10271- | |
| 7 | 566-54-12212 | CUSHION | 10271- | |
| 8 | 569-03-12190 | SPACER | 10271- | |
| 9 | 565-54-12841 | WASHER | 10271- | |
| 10 | 01582-11613 | NUT | 10271- | |
| 11 | 01643-31645 | WASHER | 10271- | |
| 12 | 421-43-15850 | ROD | 10271- | |
| 13 | 01582-11613 | NUT | 10271- | |
| 14 | 01643-31645 | WASHER | 10271- |
