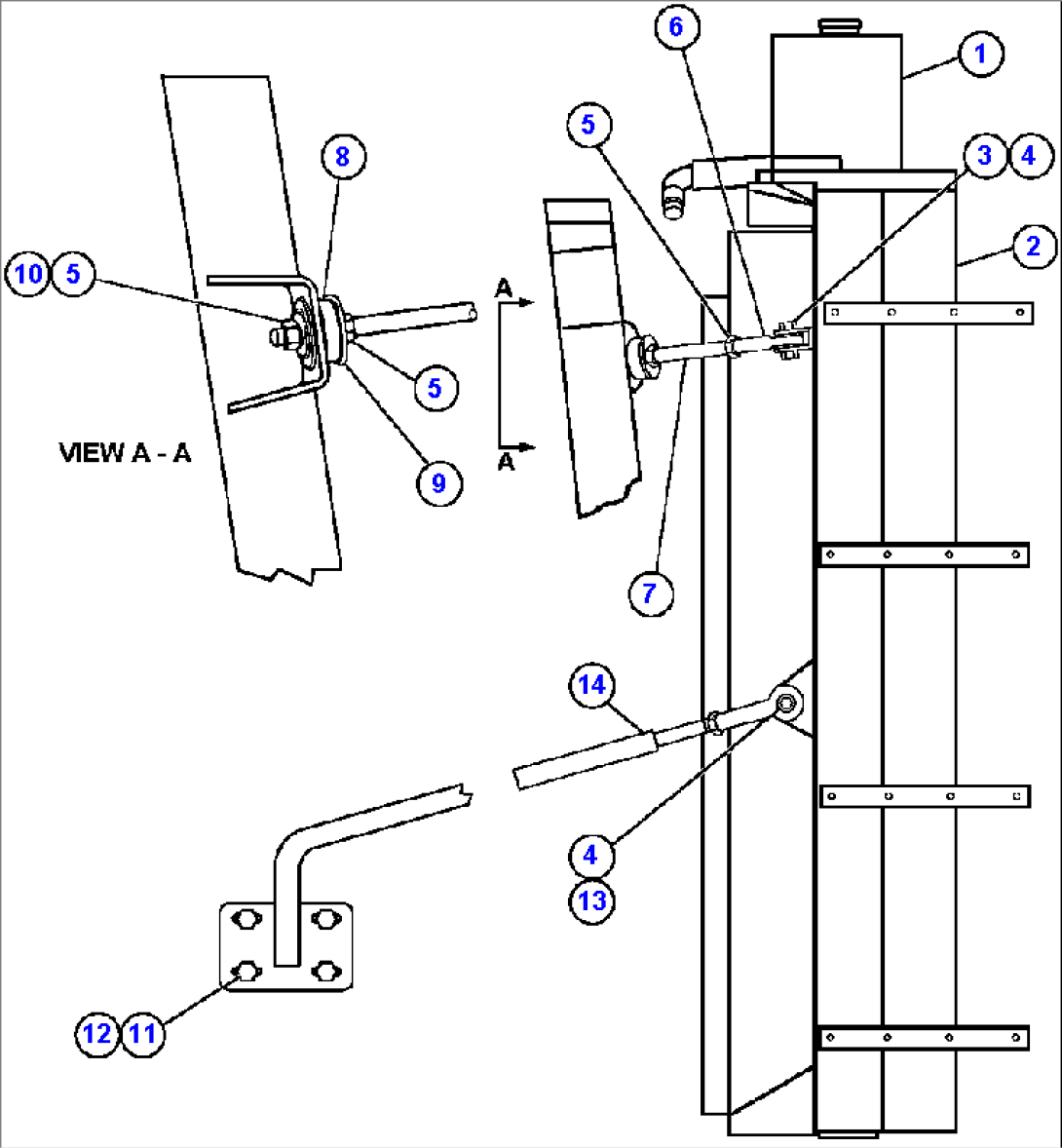

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | BF5349 | TANK, SURGE (INCLUDED IN RADIATOR ASSEMBLY) | ||
| 2 | PC2068 | RADIATOR AND SHROUD ASSEMBLY (SEE INDEX) | ||
| 3 | E3909 | CAPSCREW - 1" - 8NC X 3 1/4" | ||
| 4 | VH8186 | LOCKNUT - 1" - 8NC | ||
| 5 | C1532 | NUT - 1" - 14NF | ||
| 6 | PB6831 | END, ROD | ||
| 7 | TY5096 | ROD, THREADED | ||
| 8 | TG6760 | MOUNT, RUBBER | ||
| 9 | TK6567 | WASHER | ||
| 10 | TK6566 | WASHER | ||
| 11 | MM0038 | CAPSCREW - M16 X 2.00 X 35 | ||
| 12 | MM0706 | FLAT WASHER - M16 (HARDENED) | ||
| 13 | C1667 | CAPSCREW - 1" - 8NC X 2 1/2" | ||
| 14 | EK4411 | BAR, STABILIZER - R.H. SIDE | ||
| 14 | EK4413 | BAR, STABILIZER - L.H. SIDE |
