| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20X-03-22210 | NET,RADIATOR | 2001- | |
| 2 | 20X-03-22220 | BRACKET | 2001- | |
| 3 | 01010-50820 | BOLT | 2001- | |
| 4 | 01643-30823 | WASHER | 2001- | |
| 5 | 01540-20840 | NUT,WING | 2001- | |
| 6 | 01602-20825 | WASHER,SPRING | 2001- |
Поиск по каталогу

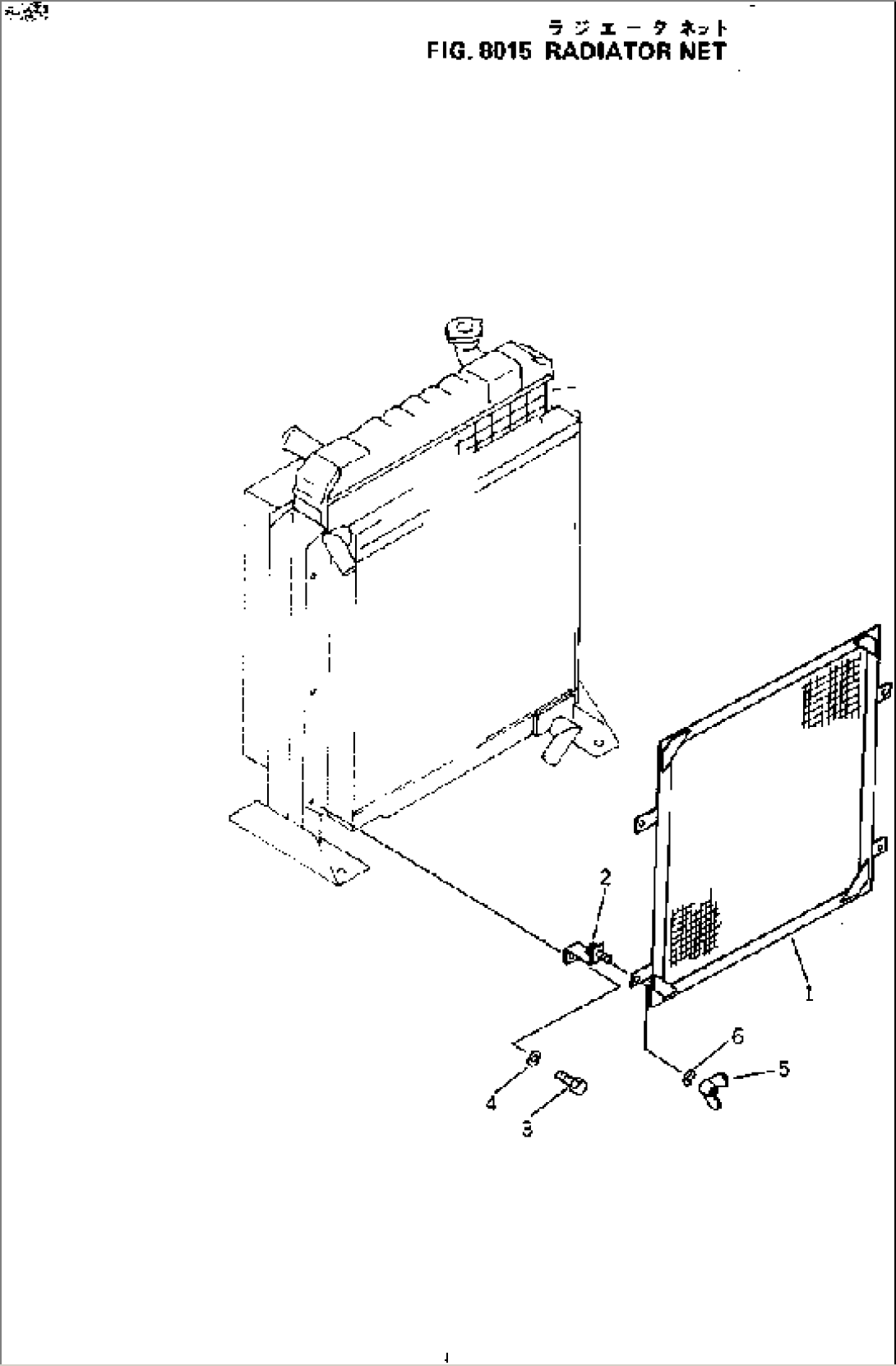

RADIATOR NET
| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20X-03-22210 | NET,RADIATOR | 2001- | |
| 2 | 20X-03-22220 | BRACKET | 2001- | |
| 3 | 01010-50820 | BOLT | 2001- | |
| 4 | 01643-30823 | WASHER | 2001- | |
| 5 | 01540-20840 | NUT,WING | 2001- | |
| 6 | 01602-20825 | WASHER,SPRING | 2001- |
