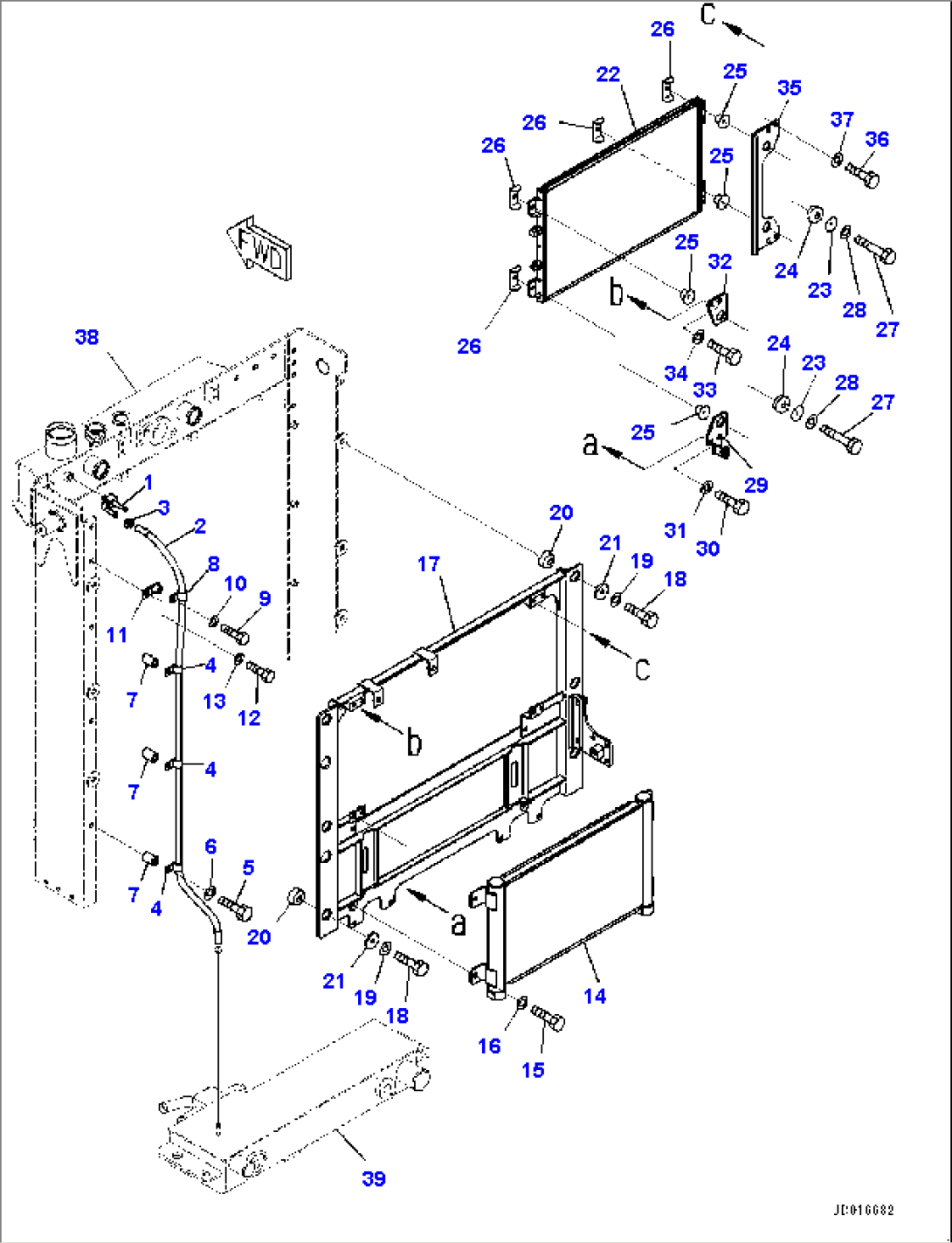

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 17A-03-41930 | Tube | 11609- | |
| 2 | 09483-10314 | Hose | 11609- | |
| 3 | 07281-00197 | Clamp | 11609- | |
| 4 | 04434-51612 | Clip | 11609- | |
| 5 | 01010-81260 | Bolt | 11609- | |
| 6 | 01643-31232 | Washer | 11609- | |
| 7 | 20Y-03-11220 | Collar | 11609- | |
| 8 | 04434-51612 | Clip | 11609- | |
| 9 | 01010-81020 | Bolt | 11609- | |
| 10 | 01643-31032 | Washer | 11609- | |
| 11 | 426-06-11570 | Bracket | 11609- | |
| 12 | 01010-81225 | Bolt | 11609- | |
| 13 | 01643-31232 | Washer | 11609- | |
| 14 | 154-03-76190 | Oil Cooler | 11609- | |
| 15 | 01010-81025 | Bolt | 11609- | |
| 16 | 01643-31032 | Washer | 11609- | |
| 17 | 154-03-76432 | Bracket | 11609- | |
| 18 | 01010-81050 | Bolt | 11609- | |
| 19 | 01643-31032 | Washer | 11609- | |
| 20 | 195-03-41380 | Cushion | 11609- | |
| 21 | 154-03-76280 | Washer | 11609- | |
| 22 | 20Y-979-6131 | Condenser Assembly | 11609- | |
| 23 | 154-911-8140 | Collar | 11609- | |
| 24 | 195-03-41380 | Cushion | 11609- | |
| 25 | 154-911-8210 | Collar | 11609- | |
| 26 | 154-911-8220 | Bracket | 11609- | |
| 27 | 01010-80870 | Bolt | 11609- | |
| 28 | 01643-30823 | Washer | 11609- | |
| 29 | 154-911-8231 | Plate | 11609- | |
| 30 | 01010-81025 | Bolt | 11609- | |
| 31 | 01643-31032 | Washer | 11609- | |
| 32 | 154-911-8241 | Plate | 11609- | |
| 33 | 01010-81025 | Bolt | 11609- | |
| 34 | 01643-31032 | Washer | 11609- | |
| 35 | 154-911-8250 | Plate | 11609- | |
| 36 | 01010-81025 | Bolt | 11609- | |
| 37 | 01643-31032 | Washer | 11609- | |
| 38 | (154-03-75351) | Tank | - | |
| (154-03-75351) | Tank | - | ||
| 39 | (154-03-75611) | Cooler | - |
