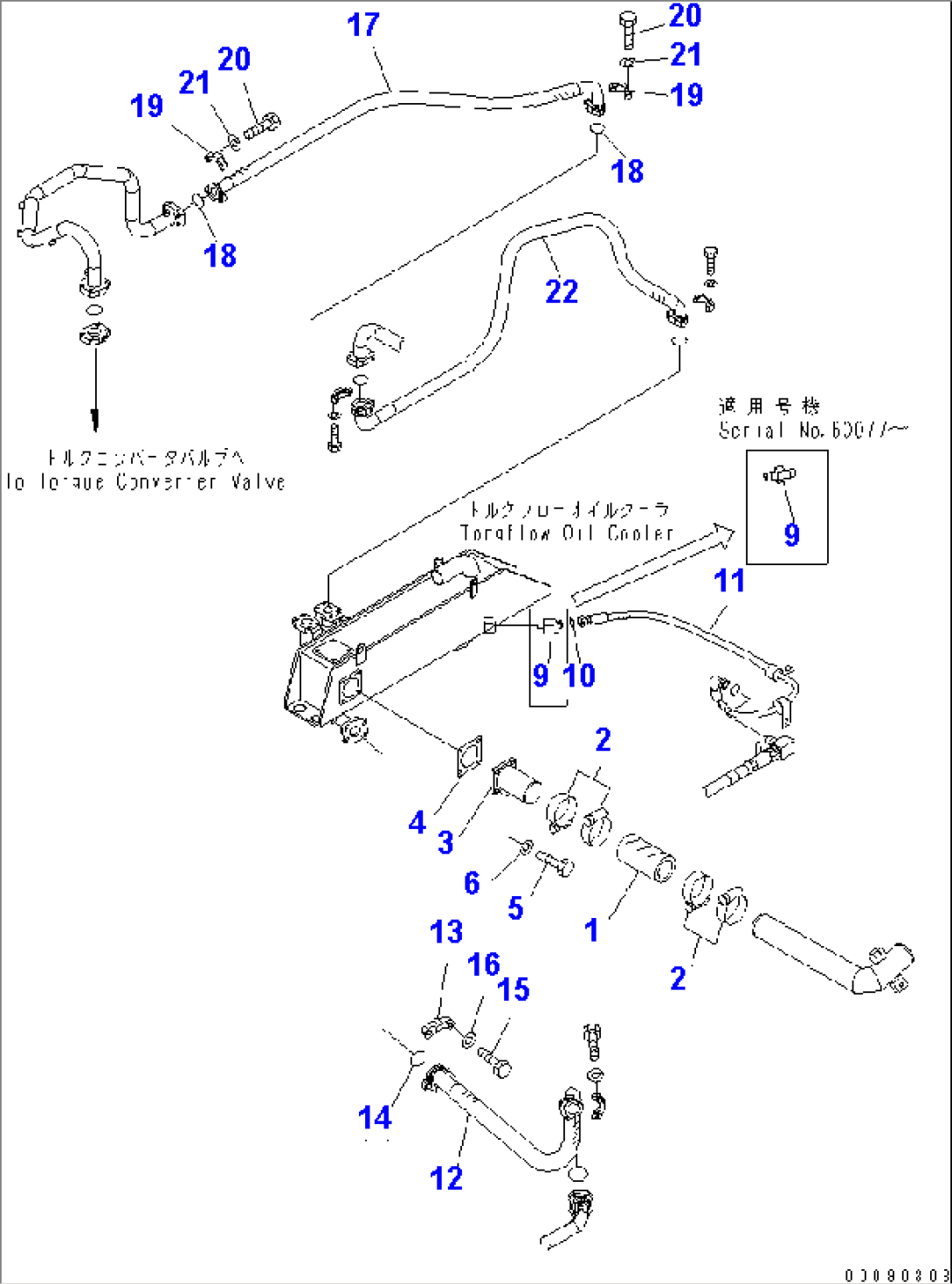

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07260-28722 | HOSE | 60002- | |
| 2 | 07299-00105 | CLAMP | 60002- | |
| 3 | 427-03-22220 | TUBE | 60002- | |
| 4 | 427-03-12530 | GASKET | 60002- | |
| 5 | 01010-81035 | BOLT | 60002- | |
| 6 | 01643-31032 | WASHER | 60002- | |
| 9 | 421-09-37610 | CONNECTOR | 60077- | |
| 9 | 427-Z89-2740 | ELBOW | 60002-60076 | |
| 10 | 02896-21018 | O-RING | 60002- | |
| 11 | 02766-00616 | HOSE | 60077- | |
| 11 | 427-Z89-3630 | HOSE | 60002-60076 | |
| 12 | 07298-02011 | HOSE | 60002- | |
| 13 | 07371-32076 | FLANGE | 60002- | |
| 14 | 07000-F2060 | O-RING | 60002- | |
| 15 | 07372-21240 | BOLT | 60002- | |
| 16 | 01643-51232 | WASHER | 60048- | |
| 17 | 427-S05-6380 | HOSE | 60002- | |
| 18 | 07000-F3048 | O-RING | 60002- | |
| 19 | 07371-31465 | FLANGE | 60002- | |
| 20 | 07372-21240 | BOLT | 60002- | |
| 21 | 01643-51232 | WASHER | 60048- | |
| 22 | 427-16-21620 | HOSE | 60002- |
