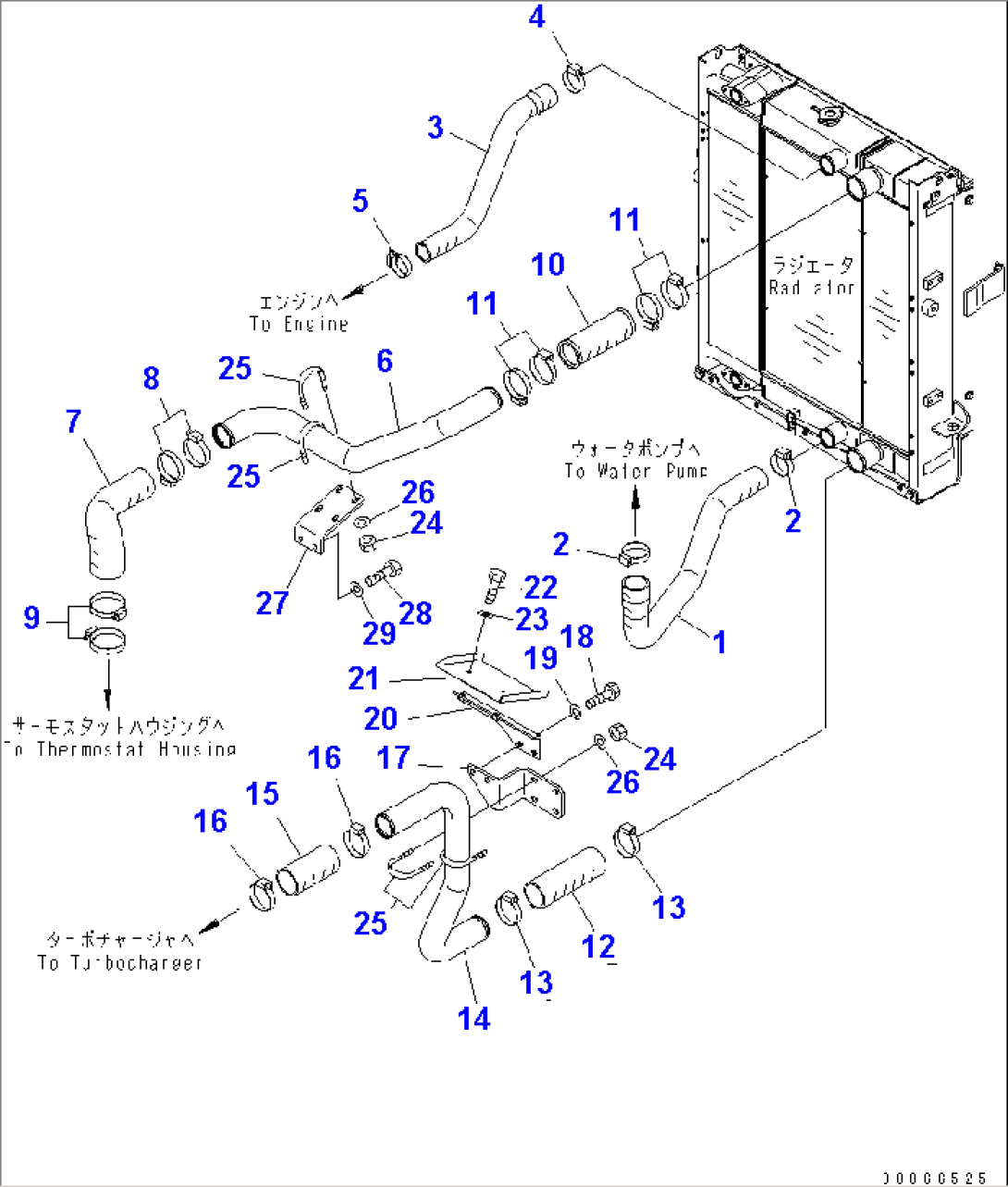

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-03-48150 | HOSE | 70001- | |
| 2 | 07289-00070 | CLAMP | 70001- | |
| 3 | 417-03-48160 | HOSE | 70001- | |
| 4 | 07289-00070 | CLAMP | 70001- | |
| 5 | 07289-00055 | CLAMP | 70001- | |
| 6 | 417-03-48171 | PIPE | 70157- | |
| 6 | 417-03-48170 | PIPE | 70001-70156 | |
| 7 | 417-03-44190 | HOSE | 70001- | |
| 8 | 07289-00070 | CLAMP | 70001- | |
| 9 | 07289-00080 | CLAMP | 70001- | |
| 10 | 417-03-44170 | HOSE, 200MM | 70001- | |
| 11 | 07289-00070 | CLAMP | 70001- | |
| 12 | 418-03-32250 | HOSE | 70001- | |
| 13 | 07299-00070 | CLAMP | 70001- | |
| 14 | 417-03-48180 | PIPE | 70001- | |
| 15 | 418-03-32180 | HOSE | 70001- | |
| 16 | 07299-00070 | CLAMP | 70001- | |
| 17 | 417-03-44110 | BRACKET | 70001- | |
| 18 | 01010-81235 | BOLT | 70001- | |
| 19 | 01643-31232 | WASHER | 70001- | |
| 20 | 417-03-41630 | BRACKET | 70001- | |
| 21 | 417-03-41640 | PLATE | 70001- | |
| 22 | 01010-81020 | BOLT | 70001- | |
| 23 | 01643-31032 | WASHER | 70001- | |
| 24 | 01597-01009 | NUT | 70001- | |
| 25 | 07283-36365 | CLIP | 70001- | |
| 26 | 01643-31032 | WASHER | 70001- | |
| 27 | 417-03-44120 | BRACKET | 70001- | |
| 28 | 01010-81230 | BOLT | 70001- | |
| 29 | 01643-31232 | WASHER | 70001- |
