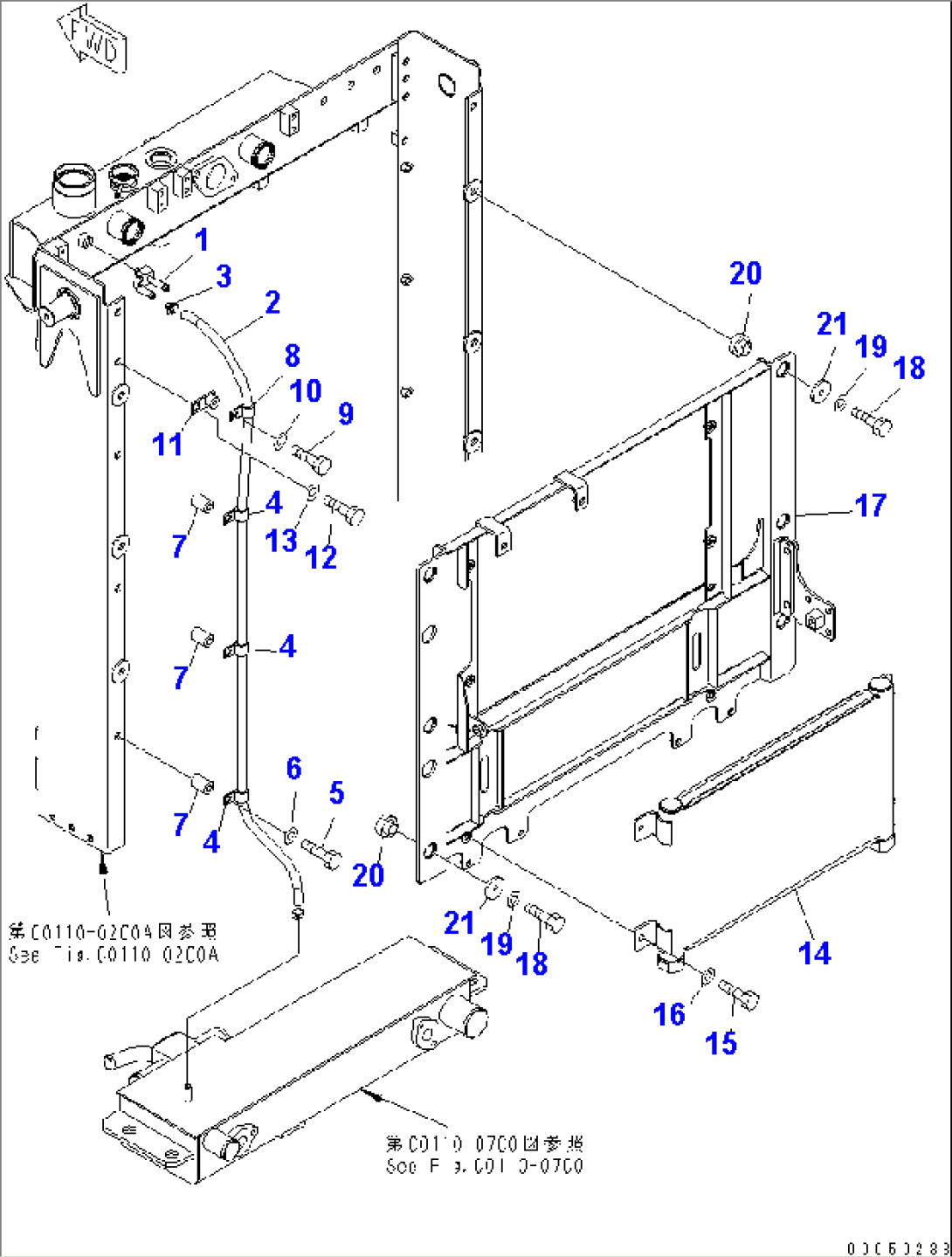

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 17A-03-41930 | TUBE | 1201- | |
| 2 | 09483-10314 | HOSE | 1206- | |
| 3 | 07281-00197 | CLAMP | 1201- | |
| 4 | 04434-51612 | CLIP | 1201- | |
| 5 | 01010-81260 | BOLT | 1206- | |
| 6 | 01643-31232 | WASHER | 1201- | |
| 7 | 20Y-03-11220 | COLLAR | 1206- | |
| 8 | 04434-51612 | CLIP | 1206- | |
| 9 | 01010-81020 | BOLT | 1206- | |
| 10 | 01643-31032 | WASHER | 1206- | |
| 11 | 426-06-11570 | BRACKET | 1206- | |
| 12 | 01010-81225 | BOLT | 1206- | |
| 13 | 01643-31232 | WASHER | 1206- | |
| 14 | 154-03-76190 | OIL COOLER | 1206- | |
| 15 | 01010-81025 | BOLT | 1206- | |
| 16 | 01643-31032 | WASHER | 1206- | |
| 17 | 154-03-76432 | BRACKET | 11284- | |
| 17 | 154-03-76431 | BRACKET | 1206-11283 | |
| 18 | 01010-81050 | BOLT | 1206- | |
| 19 | 01643-31032 | WASHER | 1206- | |
| 20 | 195-03-41380 | CUSHION | 1206- | |
| 21 | 154-03-76280 | WASHER | 1206- |
