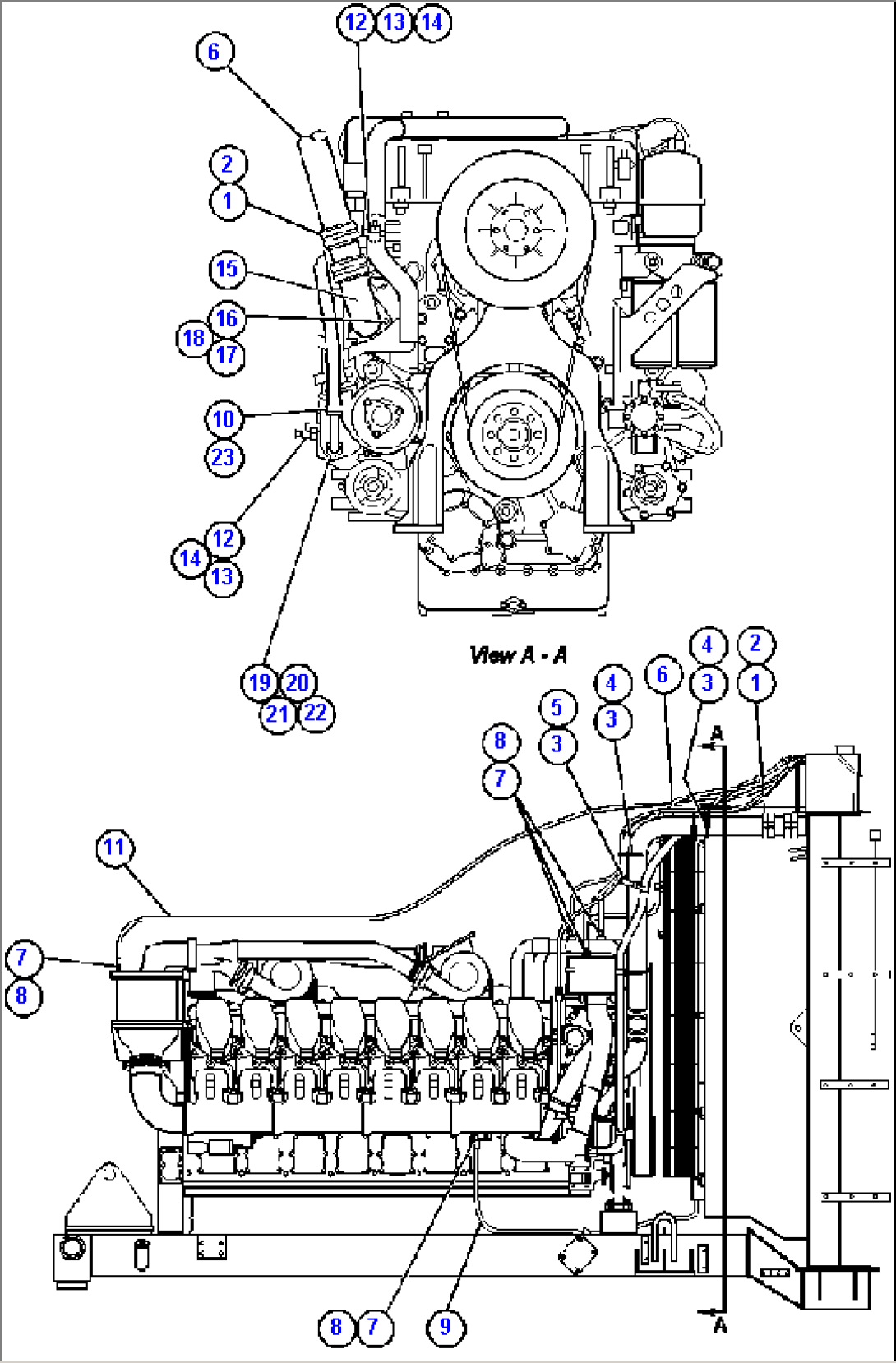

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EH0431 | HOSE, COOLANT | ||
| 2 | WB1049 | CLAMP, T-BOLT | ||
| 3 | TA1432 | CLAMP | ||
| 4 | TF6924 | CLAMP | ||
| 5 | TF6925 | CLAMP | ||
| 6 | EG6239 | TUBE | ||
| 7 | PC0119 | SEAL, ADAPTOR | ||
| 8 | PC0122 | ADAPTOR, METRIC TO JIC | ||
| 9 | HA7560 | HOSE | ||
| 10 | ED5464 | HOSE | ||
| 11 | HA6822 | HOSE | ||
| 12 | MM0728 | SEAL, ADAPTOR | ||
| 13 | MM0726 | ADAPTOR | ||
| 14 | VN6280 | VALVE, WATER SHUT-OFF | ||
| 15 | EG6301 | TUBE | ||
| 16 | EG6539 | GASKET | ||
| 17 | MM0606 | CAPSCREW - M10 X 1.50 X 30 ZINC | ||
| 18 | MM0471 | LOCKWASHER - M10 | ||
| 19 | WB0367 | FITTING, STRAIGHT ADAPTOR | ||
| 20 | ED9901 | SEAL, RING | ||
| 21 | PB9390 | ADAPTOR, METRIC TO INCH | ||
| 22 | ED8256 | TUBE | ||
| 23 | CD9707 | CLAMP |
