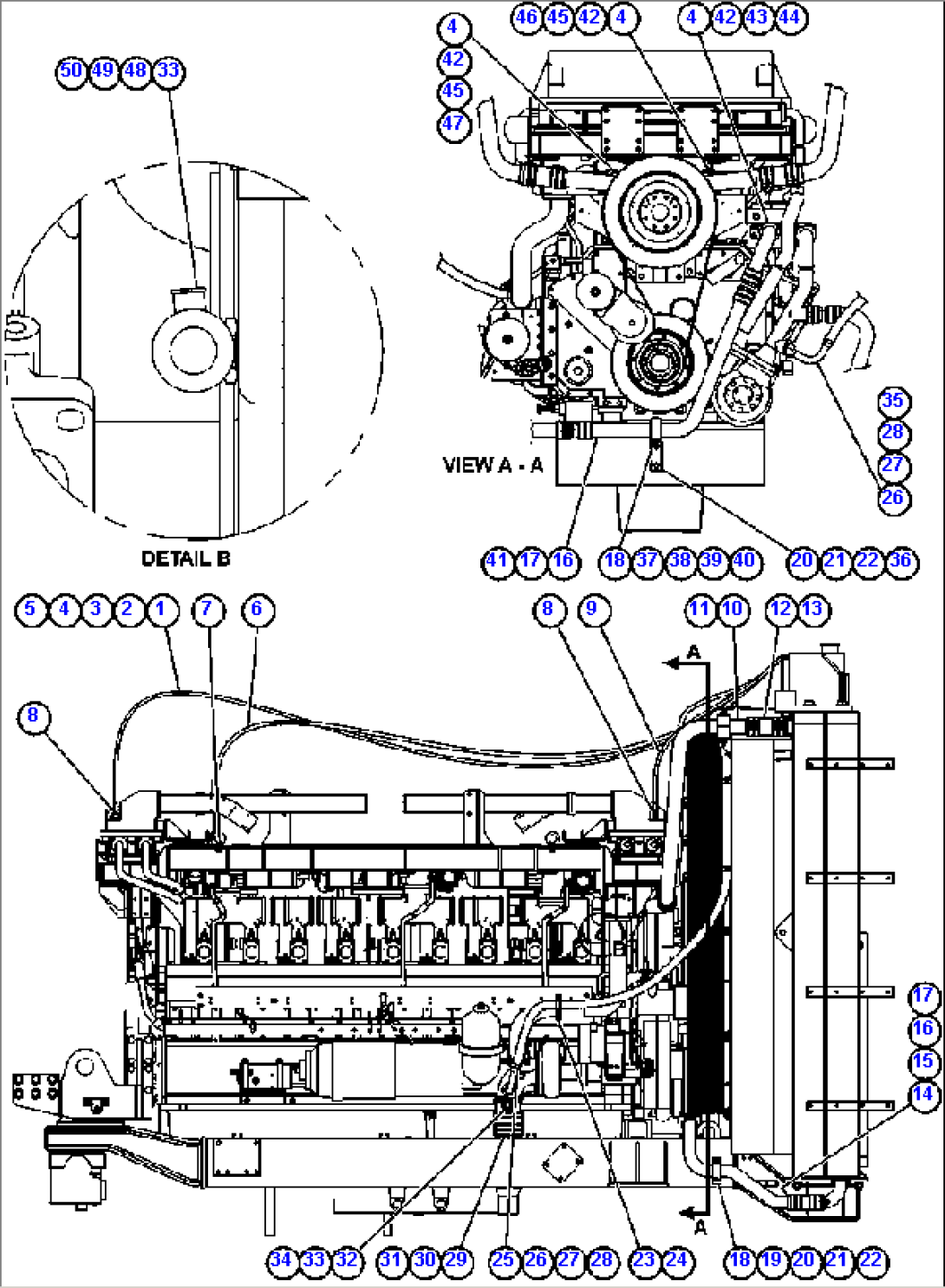

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | HA3435 | HOSE | ||
| 2 | TR6925 | CLAMP | ||
| 3 | MM0647 | STUD, WELD - M10 X 20 | ||
| 4 | MM0471 | LOCKWASHER - M10 | ||
| 5 | MM0178 | NUT - M10 X 1.50 | ||
| 6 | HA7753 | HOSE | ||
| 7 | TG3393 | FITTING, 90 DEG | ||
| 8 | WB1142 | ADAPTOR - METRIC TO JIC | ||
| 9 | HA2986 | HOSE | ||
| 10 | EH7773 | TUBE - R.H. | ||
| 11 | EH7767 | TUBE - L.H. | ||
| 12 | WB1020 | CLAMP - T-BOLT | ||
| 13 | EH7753 | HOSE | ||
| 14 | EH7789 | TUBE - R.H. | ||
| 15 | EH7784 | TUBE - L.H. | ||
| 16 | EG6269 | HOSE, COOLANT | ||
| 17 | WB1088 | CLAMP, T-BOLT | ||
| 18 | WA5460 | CLAMP | ||
| 19 | EH3382 | BRACKET | ||
| 20 | TC1234 | CAPSCREW - 3/8" - 16NC X 3/4" | ||
| 21 | TR1231 | LOCKWASHER - 3/8" | ||
| 22 | TR4436 | FLAT WASHER - 3/8" | ||
| 23 | TA1432 | CLAMP | ||
| 24 | TF6924 | CLAMP | ||
| 25 | ED5464 | HOSE | ||
| 26 | CD9707 | CLAMP | ||
| 27 | PC0818 | ADAPTOR - METRIC TO JIC | ||
| 28 | ED8256 | TUBE | ||
| 29 | WB1051 | CLAMP, T-BOLT | ||
| 30 | ED0020 | HOSE | ||
| 31 | EH3376 | TUBE | ||
| 32 | WB1192 | ADAPTOR | ||
| 33 | VN6280 | VALVE, WATER SHUTOFF | ||
| 34 | SD5209 | BUSHING, PIPE | ||
| 35 | TM2966 | HOSE | ||
| 36 | EH7794 | BRACKET, MOUNTING | ||
| 37 | C5759 | CAPSCREW - 1/2" - 13NC X 5" | ||
| 38 | TR5445 | LOCKWASHER - 1/2" | ||
| 39 | TR6008 | FLAT WASHER - 1/2" | ||
| 40 | C1523 | NUT - 1/2" - 13NC | ||
| 41 | EH7791 | TUBE | ||
| 42 | MM0606 | CAPSCREW - M10 X 1.50 X 30 | ||
| 43 | EH2022 | GASKET | ||
| 44 | EH7768 | TUBE | ||
| 45 | EH7754 | GASKET | ||
| 46 | EH7766 | TUBE | ||
| 47 | EH7764 | TUBE | ||
| 48 | WB1141 | ADAPTOR - PIPE TO JIC | ||
| 49 | WB1063 | ADAPTOR, METRIC - 90 DEG | ||
| 50 | SD5209 | BUSHING, PIPE |
