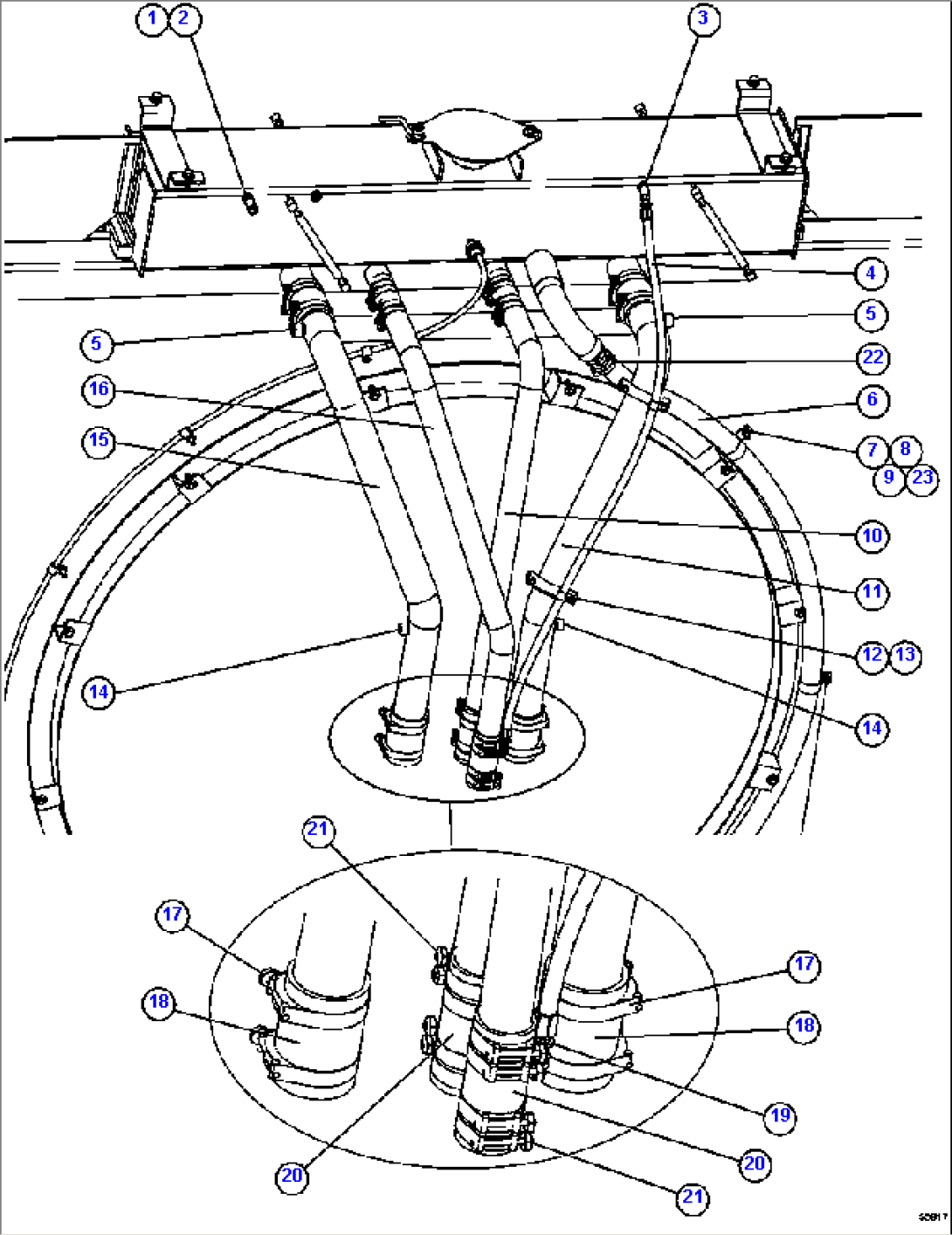

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | R0086 | BUSHING, PIPE - 3/8" X 1/4" | ||
| 2 | SD5163 | FITTING, PIPE | ||
| 3 | WB0288 | FITTING, ELBOW - 90 DEG | ||
| 4 | HA3622 | HOSE | ||
| 5 | C5771 | PLUG, PIPE - 1/2" | ||
| 6 | TZ4694 | HOSE | ||
| 7 | WB3094 | CLAMP, CUSHIONED - 1 3/4" | ||
| 8 | MM0471 | LOCKWASHER - M10 | ||
| 9 | MM0719 | NUT - M10 X 1.50 | ||
| 10 | EF7092 | TUBE | ||
| 11 | EF5724 | TUBE | ||
| 12 | VD6174 | CLAMP, U-BOLT | ||
| 13 | TF6925 | CLAMP, VINYL - 3/4" | ||
| 14 | C5770 | PLUG, PIPE - 3/8" | ||
| 15 | EF5725 | TUBE | ||
| 16 | EF7091 | TUBE | ||
| 17 | WA1054 | CLAMP, T-BOLT | ||
| 18 | EC0364 | HOSE | ||
| 19 | WB0461 | FITTING, STRAIGHT | ||
| 20 | TZ8128 | HOSE | ||
| 21 | VW4027 | CLAMP, T-BOLT | ||
| 22 | CD9707 | CLAMP, WORM DRIVE | ||
| 23 | MM0461 | FLAT WASHER - M10 |
