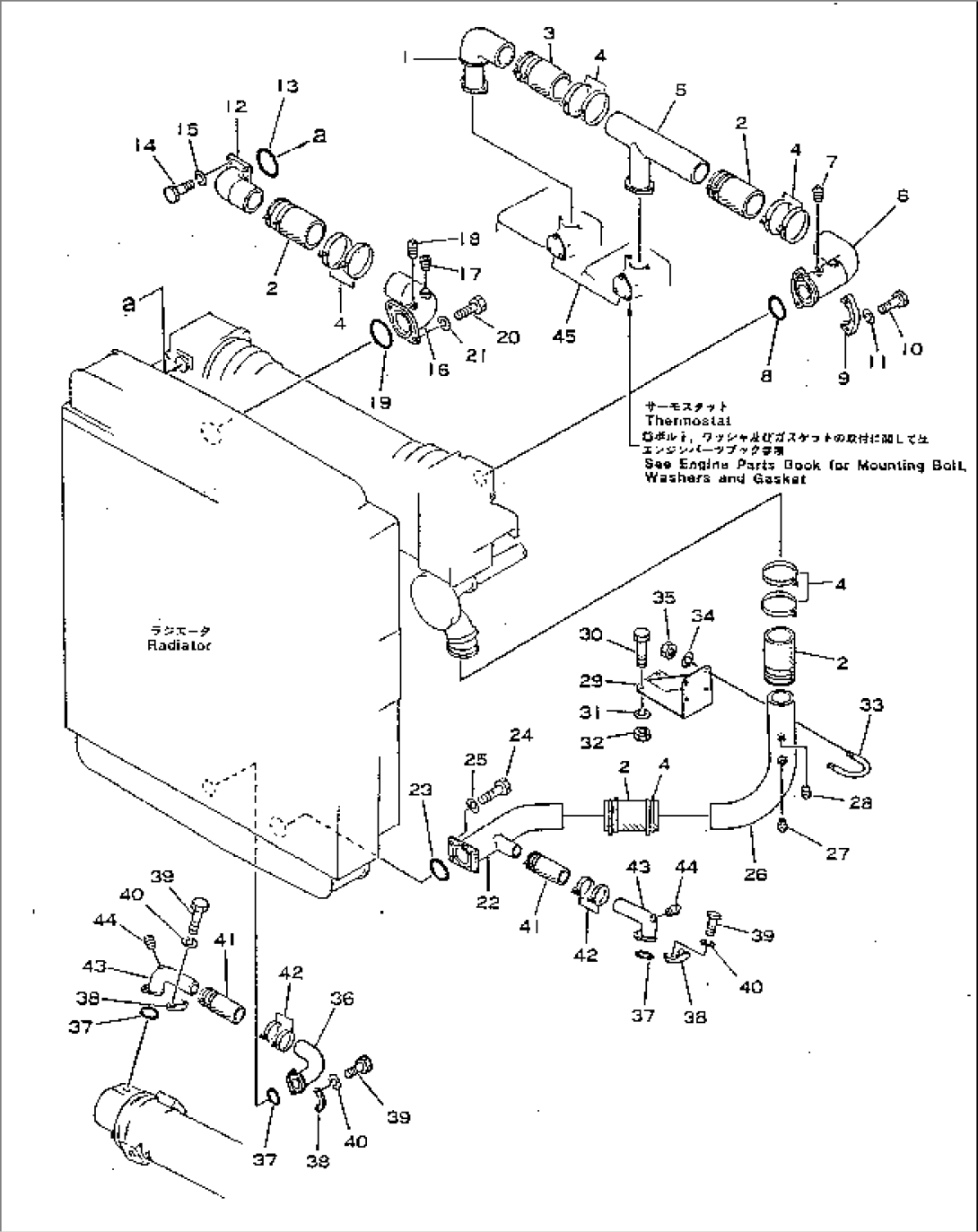

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 568-03-22122 | TUBE | 1036- | |
| 1 | 568-03-22121 | TUBE | 1002-1035 | |
| 2 | 07260-38718 | HOSE | 1106- | |
| 2 | 07260-28718 | HOSE | 1058-1105 | |
| 2 | 07260-38718 | HOSE | 1055-1057 | |
| 2 | 07260-28718 | HOSE | 1036-1054 | |
| 2 | 07260-28718 | HOSE | 1002-1035 | |
| 3 | 568-92-11410 | HOSE | 1106- | |
| 3 | 569-03-12171 | HOSE | 1058-1105 | |
| 3 | 568-92-11410 | HOSE | 1055-1057 | |
| 4 | 07281-01159 | CLAMP | 1002- | |
| 5 | 568-03-22132 | TUBE | 1036- | |
| 5 | 568-03-22131 | TUBE | 1002-1035 | |
| 6 | 568-03-22142 | TUBE | 1036- | |
| 6 | 568-03-22141 | TUBE | 1002-1035 | |
| 7 | 07042-20415 | PLUG | 1002- | |
| 8 | 07000-02085 | O-RING | 1002- | |
| 9 | 07371-03010 | FLANGE | 1002- | |
| 10 | 07372-21650 | BOLT | 1002- | |
| 11 | 01602-21648 | WASHER | 1002- | |
| 12 | 568-03-22351 | TUBE | 1002- | |
| 13 | 07000-02090 | O-RING | 1002- | |
| 14 | 01010-51235 | BOLT | 1002- | |
| 15 | 01602-21236 | WASHER | 1002- | |
| 16 | 568-03-22360 | TUBE | 1002- | |
| 17 | 02720-20810 | PLUG | 1002- | |
| 18 | 07042-20108 | PLUG | 1002- | |
| 19 | 07000-02100 | O-RING | 1002- | |
| 20 | 01010-51435 | BOLT | 1002- | |
| 21 | 01602-21442 | WASHER | 1002- | |
| 22 | 568-03-22151 | TUBE | 1002- | |
| 23 | 07000-02085 | O-RING | 1002- | |
| 24 | 01010-51440 | BOLT | 1002- | |
| 25 | 01602-21442 | WASHER | 1002- | |
| 26 | 568-03-22161 | TUBE | 1076- | |
| 26 | 568-03-22160 | TUBE | 1002-1075 | |
| 27 | 07042-20415 | PLUG | 1002- | |
| 28 | 07042-20108 | PLUG | 1002- | |
| 29 | 568-03-22281 | BRACKET | 1076- | |
| 29 | 568-03-22280 | BRACKET | 1002-1075 | |
| 30 | 01010-51255 | BOLT | 1002- | |
| 31 | 01602-21236 | WASHER | 1002- | |
| 32 | 01580-11210 | NUT | 1002- | |
| 33 | 07283-18973 | CLIP | 1002- | |
| 34 | 01643-31232 | WASHER | 1002- | |
| 35 | 01599-01214 | NUT | 1002- | |
| 36 | 568-03-22380 | TUBE | 1002- | |
| 37 | 07000-03048 | O-RING | 1002- | |
| 38 | 07371-01460 | FLANGE | 1002- | |
| 39 | 07372-21235 | BOLT | 1002- | |
| 40 | 01602-21236 | WASHER | 1002- | |
| 41 | 07260-34716 | HOSE | 1106- | |
| 41 | 568-03-22420 | HOSE | 1058-1105 | |
| 41 | 07260-34716 | HOSE | 1055-1057 | |
| 41 | 568-03-22420 | HOSE | 1002-1054 | |
| 42 | 07281-00709 | CLAMP | 1002- | |
| 43 | 568-03-22170 | TUBE | 1002- | |
| 44 | 07042-20108 | PLUG | 1002- | |
| 45 | 569-03-12270 | COVER | 1036- | |
| 45 | 568-03-22530 | PLATE | 1002-1035 |
