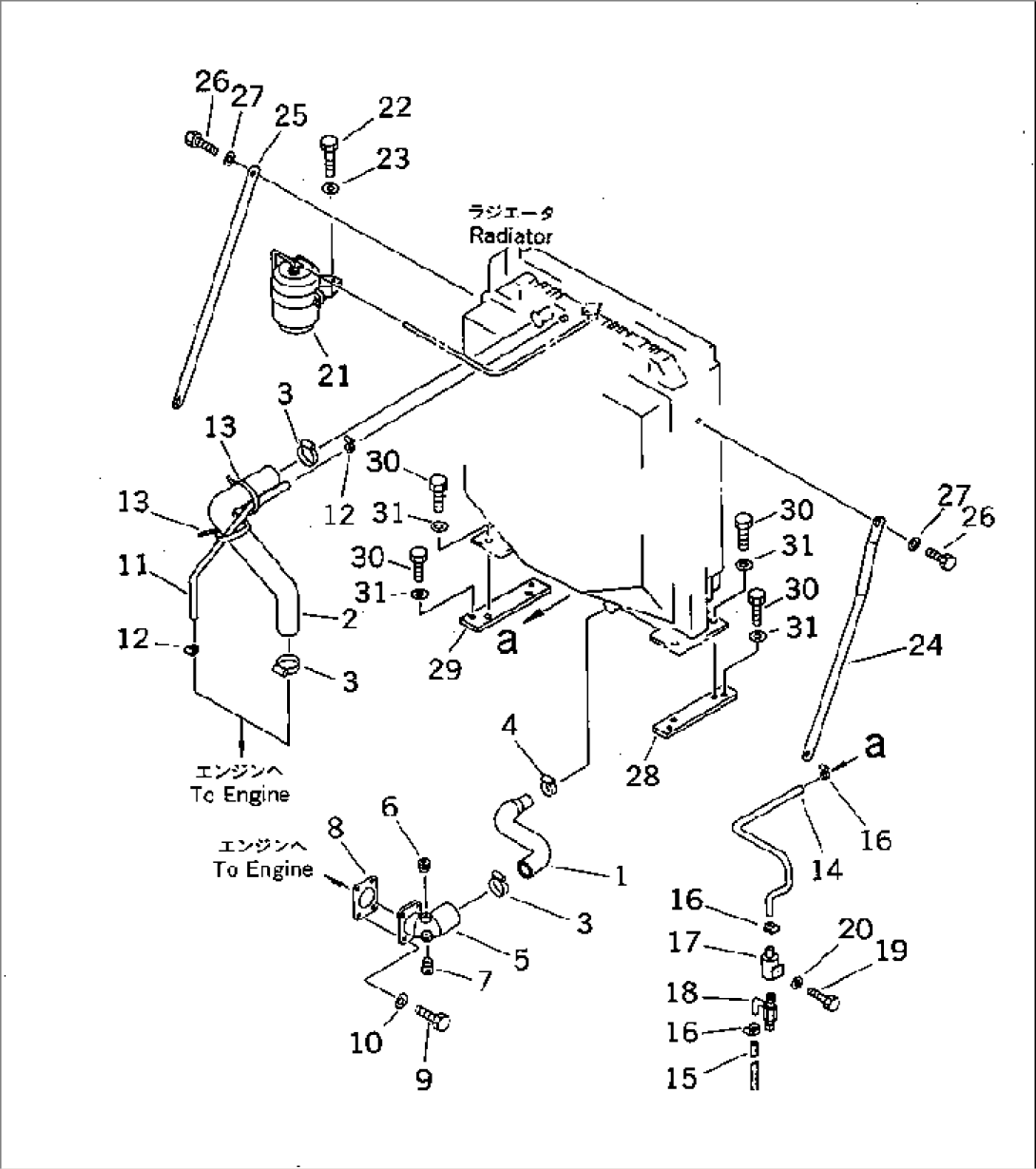

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 262-03-52140 | HOSE | 11009- | |
| 2 | 262-03-52150 | HOSE | 11009- | |
| 3 | 07281-00809 | CLAMP | 11009- | |
| 4 | 07281-00909 | CLAMP | 11009- | |
| 5 | 235-03-11410 | CONNECTOR | 11009- | |
| 6 | 07042-20415 | PLUG | 11009- | |
| 7 | 07042-70617 | PLUG | 11009- | |
| 8 | 235-03-11360 | GASKET | 11009- | |
| 9 | 01010-51030 | BOLT | 11009- | |
| 10 | 01643-31032 | WASHER | 11009- | |
| 11 | 07260-20985 | HOSE | 11009- | |
| 12 | 07281-00197 | CLAMP | 11009- | |
| 13 | 08034-00834 | BAND | 11009- | |
| 14 | 07261-21410 | HOSE | 11009- | |
| 15 | 07260-21422 | HOSE | 11009- | |
| 16 | 07281-00259 | CLAMP | 11009- | |
| 17 | 232-03-56110 | NIPPLE | 11009- | |
| 18 | 07730-40004 | VALVE | 11009- | |
| 19 | 01010-51020 | BOLT | 11009- | |
| 20 | 01643-31032 | WASHER | 11009- | |
| 21 | 262-03-51120 | TANK | 11009- | |
| 22 | 01010-51020 | BOLT | 11009- | |
| 23 | 01643-31032 | WASHER | 11009- | |
| 24 | 262-03-52160 | STAY,L.H. | 11009- | |
| 25 | 262-03-52110 | STAY,R.H. | 11009- | |
| 26 | 01010-51235 | BOLT | 11009- | |
| 27 | 01643-31032 | WASHER | 11009- | |
| 28 | 262-03-52120 | PLATE,L.H. | 11009- | |
| 29 | 262-03-52130 | PLATE,R.H. | 11009- | |
| 30 | 01010-52055 | BOLT | 11009- | |
| 31 | 01643-32060 | WASHER | 11009- |
