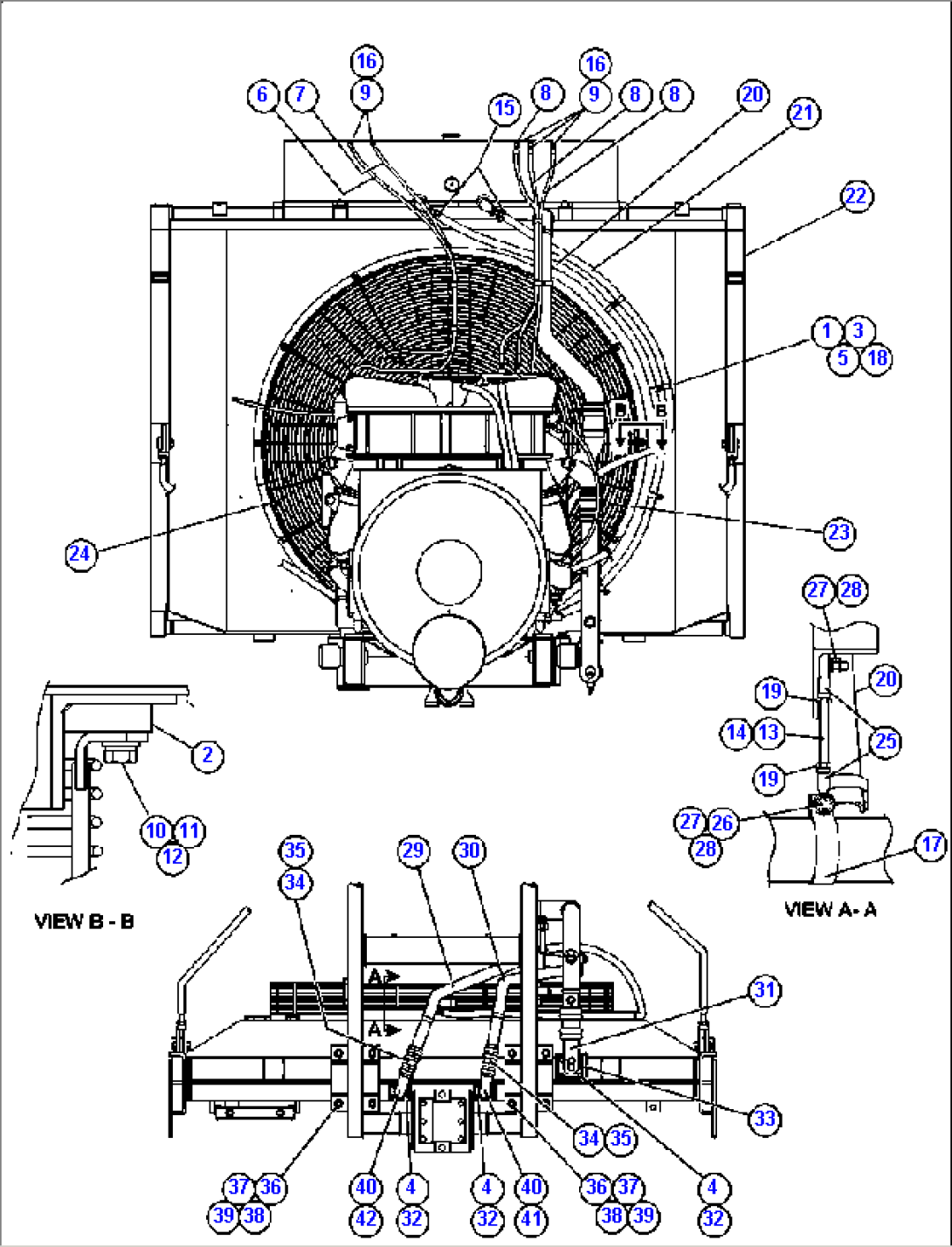

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | WA0720 | FLAT WASHER - 3/8" | ||
| 2 | EF3348 | PAD, THREADED | ||
| 3 | C1547 | FLAT WASHER - 3/8" | ||
| 4 | C0312 | LOCKWASHER - 3/8" | ||
| 5 | C1521 | NUT - 3/8" | ||
| 6 | HA4778 | HOSE | ||
| 7 | TA0634 | HOSE | ||
| 8 | HA0241 | HOSE | ||
| 9 | WB0288 | FITTING - 45 DEG | ||
| 10 | MM0036 | CAPSCREW - M10 X 1.50 X 20 | ||
| 11 | MM0471 | LOCKWASHER - M10 | ||
| 12 | MM0704 | FLAT WASHER - M10 | ||
| 13 | EG7530 | ROD, THREADED - R.H. | ||
| 14 | EG7531 | ROD, THREADED - L.H. | ||
| 15 | CD9707 | CLAMP | ||
| 16 | WB0358 | FITTING, ADAPTOR | ||
| 17 | PC0064 | CLAMP | ||
| 18 | TG2563 | CLAMP | ||
| 19 | SF4358 | NUT, JAM | ||
| 20 | EH1428 | HOSE | ||
| 21 | TA9465 | HOSE | ||
| 22 | PC0845 | RADIATOR ASSEMBLY (SEE INDEX) | ||
| 23 | EG6868 | GUARD, FAN - R.H. | ||
| 24 | EG6867 | GUARD, FAN - L.H. | ||
| 25 | WA1601 | END, ROD | ||
| 26 | C1639 | CAPSCREW - 5/16" - 18NC X 2" | ||
| 27 | VN9752 | NUT, LOCKING - 5/16" | ||
| 28 | TV0177 | FLAT WASHER - 5/16" | ||
| 29 | EH0952 | TUBE | ||
| 30 | EH3407 | TUBE | ||
| 31 | EG6529 | ELBOW | ||
| 32 | C1603 | CAPSCREW - 3/8" - 16NC X 1 1/4" | ||
| 33 | EG6530 | GASKET | ||
| 34 | EG6269 | HOSE | ||
| 35 | WB1088 | CLAMP | ||
| 36 | C1648 | CAPSCREW - 3/4" - 10NC X 3" | ||
| 37 | WA0362 | FLAT WASHER - 3/4" | ||
| 38 | C1542 | LOCKWASHER - 3/4" | ||
| 39 | C1527 | NUT - 3/4" - 10NC | ||
| 40 | EG6540 | GASKET | ||
| 41 | EG6541 | ELBOW | ||
| 42 | EG6543 | ELBOW |
