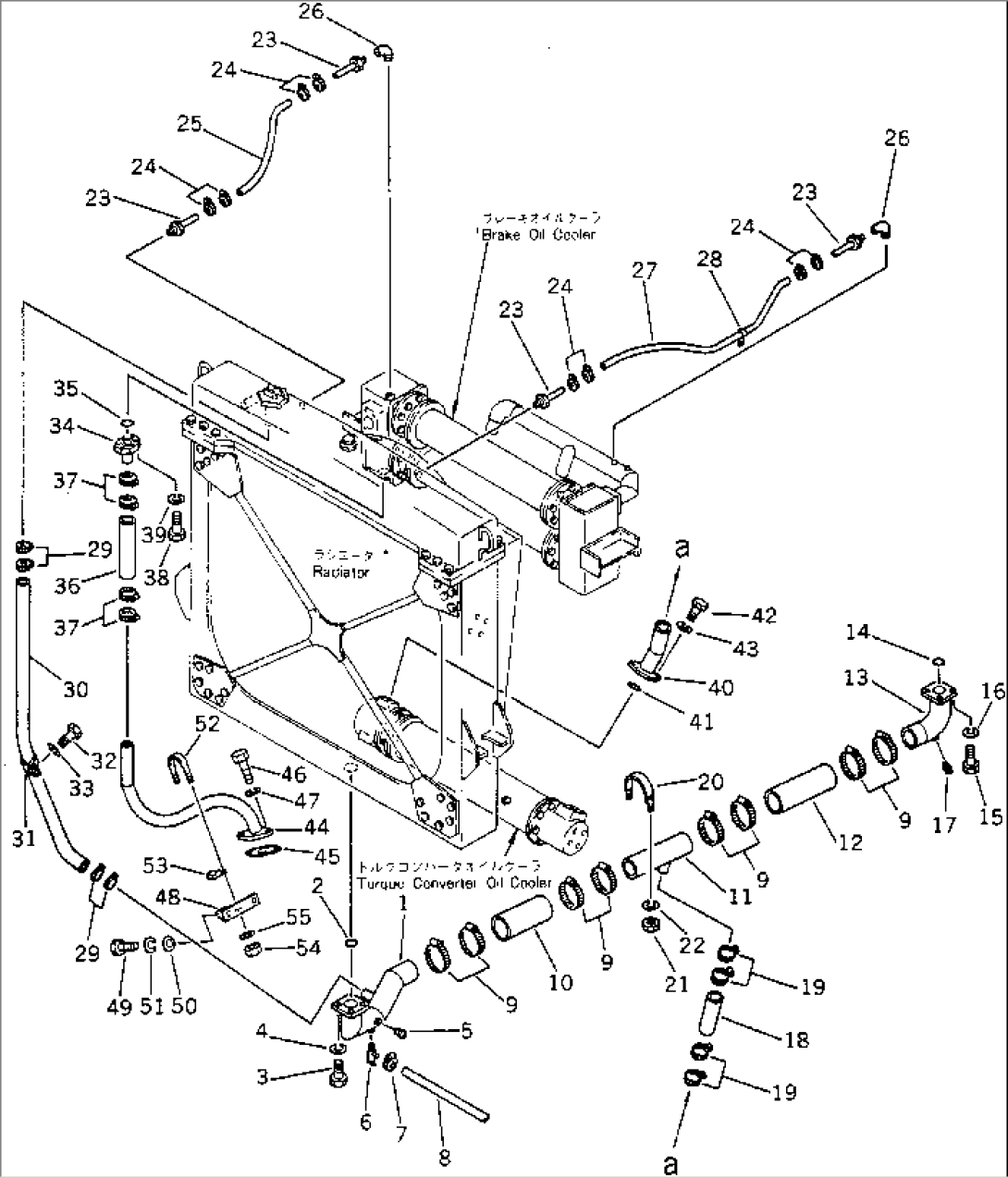

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-03-31551 | TUBE | 1002- | |
| 2 | 07000-02120 | O-RING | 1002- | |
| 3 | 01010-51240 | BOLT | 1002- | |
| 4 | 01602-21236 | WASHER | 1002- | |
| 5 | 07042-20415 | PLUG | 1002- | |
| 6 | 175-803-1340 | COCK | 1002- | |
| 7 | 07281-00359 | CLAMP | 1002- | |
| 8 | 287-35-11940 | TUBE | 1002- | |
| 9 | 07281-01469 | CLAMP | 1002- | |
| 10 | 581-03-12540 | HOSE | 1002- | |
| 11 | 561-03-31561 | TUBE | 1002- | |
| 12 | 581-03-12540 | HOSE | 1002- | |
| 13 | 562-03-12570 | FLANGE | 1002- | |
| 14 | 07000-02125 | O-RING | 1002- | |
| 15 | 02010-70638 | BOLT | 1002- | |
| 16 | 01602-20929 | WASHER | 1002- | |
| 17 | 07042-20108 | PLUG | 1002- | |
| 18 | 07260-25822 | HOSE | 1002- | |
| 19 | 07281-05832 | CLAMP | 1002- | |
| 20 | 567-02-11170 | CLIP | 1002- | |
| 21 | 01580-11008 | NUT | 1002- | |
| 22 | 01602-21030 | WASHER | 1002- | |
| 23 | 195-03-11530 | NIPPLE | 1002- | |
| 24 | 07281-00197 | CLAMP | 1002- | |
| 25 | 07260-20950 | HOSE | 1002- | |
| 26 | 07323-30200 | ELBOW | 1002- | |
| 27 | 07260-20980 | HOSE | 1002- | |
| 28 | 08036-01814 | CLIP | 1002- | |
| 29 | 07281-00709 | CLAMP | 1002- | |
| 30 | 07261-24715 | HOSE | 1002- | |
| 31 | 281-82-11740 | CLIP | 1002- | |
| 32 | 01010-51230 | BOLT | 1002- | |
| 33 | 01602-21236 | WASHER | 1002- | |
| 34 | 561-03-31640 | TUBE | 1002- | |
| 35 | 07000-02060 | O-RING | 1002- | |
| 36 | 07260-25825 | HOSE | 1002- | |
| 37 | 07281-00809 | CLAMP | 1002- | |
| 38 | 01010-51255 | BOLT | 1002- | |
| 39 | 01602-21236 | WASHER | 1002- | |
| 40 | 561-03-31631 | TUBE | 1002- | |
| 41 | 07000-02060 | O-RING | 1002- | |
| 42 | 01010-51240 | BOLT | 1002- | |
| 43 | 01602-21236 | WASHER | 1002- | |
| 44 | 561-03-31730 | TUBE | 1002- | |
| 45 | 561-03-31750 | GASKET | 1002- | |
| 46 | 02010-70632 | BOLT | 1002- | |
| 47 | 01602-00929 | WASHER | 1002- | |
| 48 | 561-03-31740 | BRACKET | 1002- | |
| 49 | 02011-70627 | BOLT | 1002- | |
| 50 | 01643-31032 | WASHER | 1002- | |
| 51 | 01602-00929 | WASHER | 1002- | |
| 52 | 07283-36155 | CLIP | 1002- | |
| 53 | 07283-56170 | SEAT | 1002- | |
| 54 | 01599-01011 | NUT | 1002- | |
| 55 | 01643-31032 | WASHER | 1002- |
