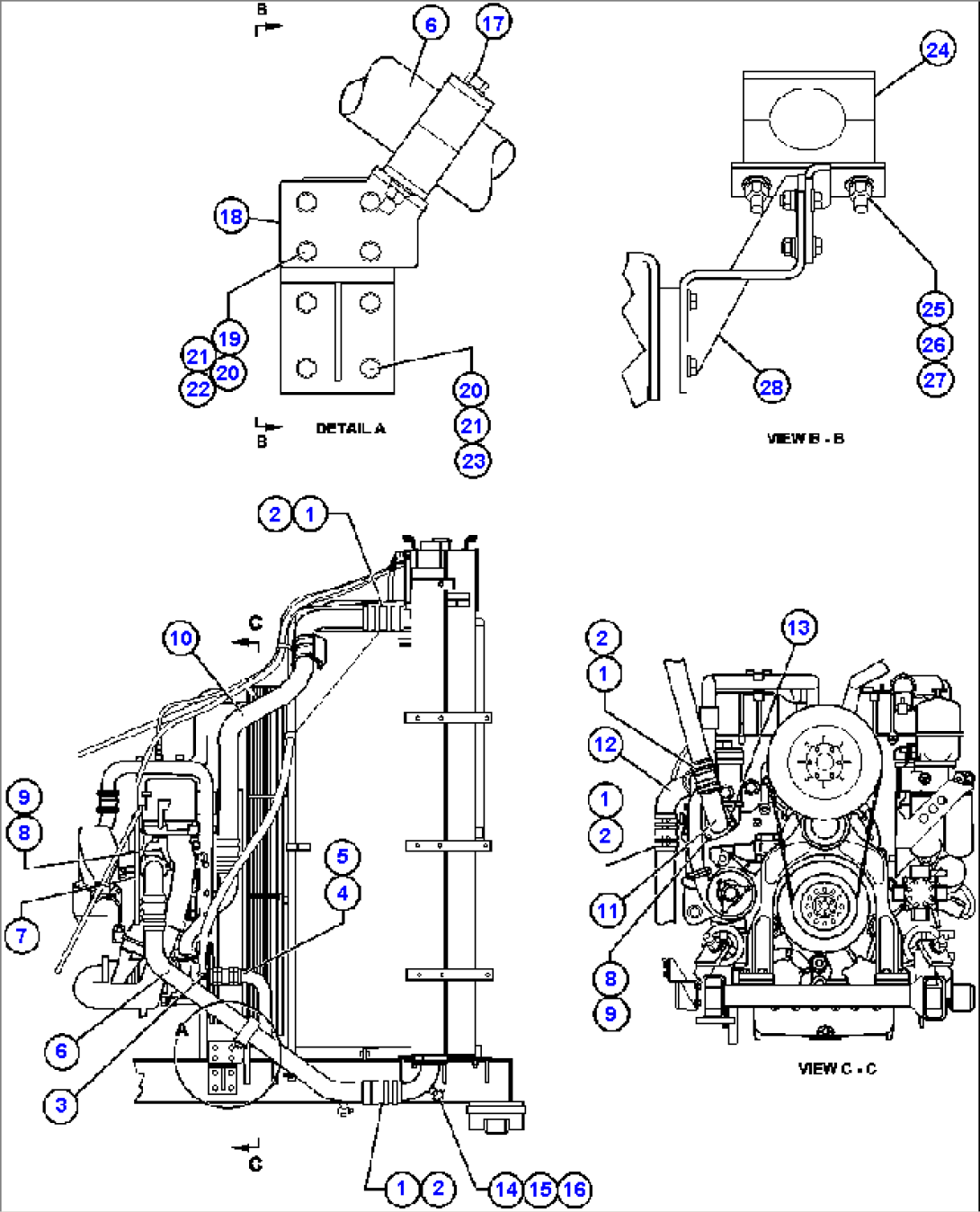

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EF7181 | HOSE | ||
| 2 | VN0823 | CLAMP, T-BOLT | ||
| 3 | CD9707 | CLAMP | ||
| 4 | EG6269 | HOSE, COOLANT | ||
| 5 | WB1088 | CLAMP, T-BOLT | ||
| 6 | EG4381 | TUBE | ||
| 7 | EG4197 | GASKET | ||
| 8 | MM0606 | CAPSCREW - M10 X 1.50 X 30 | ||
| 9 | MM0471 | LOCKWASHER - M10 | ||
| 10 | EG4391 | TUBE | ||
| 11 | EG4385 | ELBOW | ||
| 12 | EG4198 | ELBOW | ||
| 13 | EG4384 | GASKET | ||
| 14 | E2579 | NIPPLE, CLOSE | ||
| 15 | SF9435 | PIPE PLUG, MAGNETIC | ||
| 16 | TF6957 | COCK, DRAIN | ||
| 17 | SR7219 | CAPSCREW - 5/8" - 11NC X 7" | ||
| 18 | EG7550 | BRACKET | ||
| 19 | MM0620 | CAPSCREW - M12 X 1.75 X 40 | ||
| 20 | MM0472 | LOCKWASHER - M12 | ||
| 21 | MM0462 | FLAT WASHER - M12 | ||
| 22 | MM0179 | NUT - M12 X 1.75 | ||
| 23 | MM0619 | CAPSCREW - M12 X 1.75 X 35 | ||
| 24 | WB0992 | CLAMP | ||
| 25 | SD1979 | FLAT WASHER - 5/8" | ||
| 26 | C1541 | LOCKWASHER - 5/8" | ||
| 27 | C1525 | NUT - 5/8" - 11NC | ||
| 28 | EG7549 | BRACKET |
