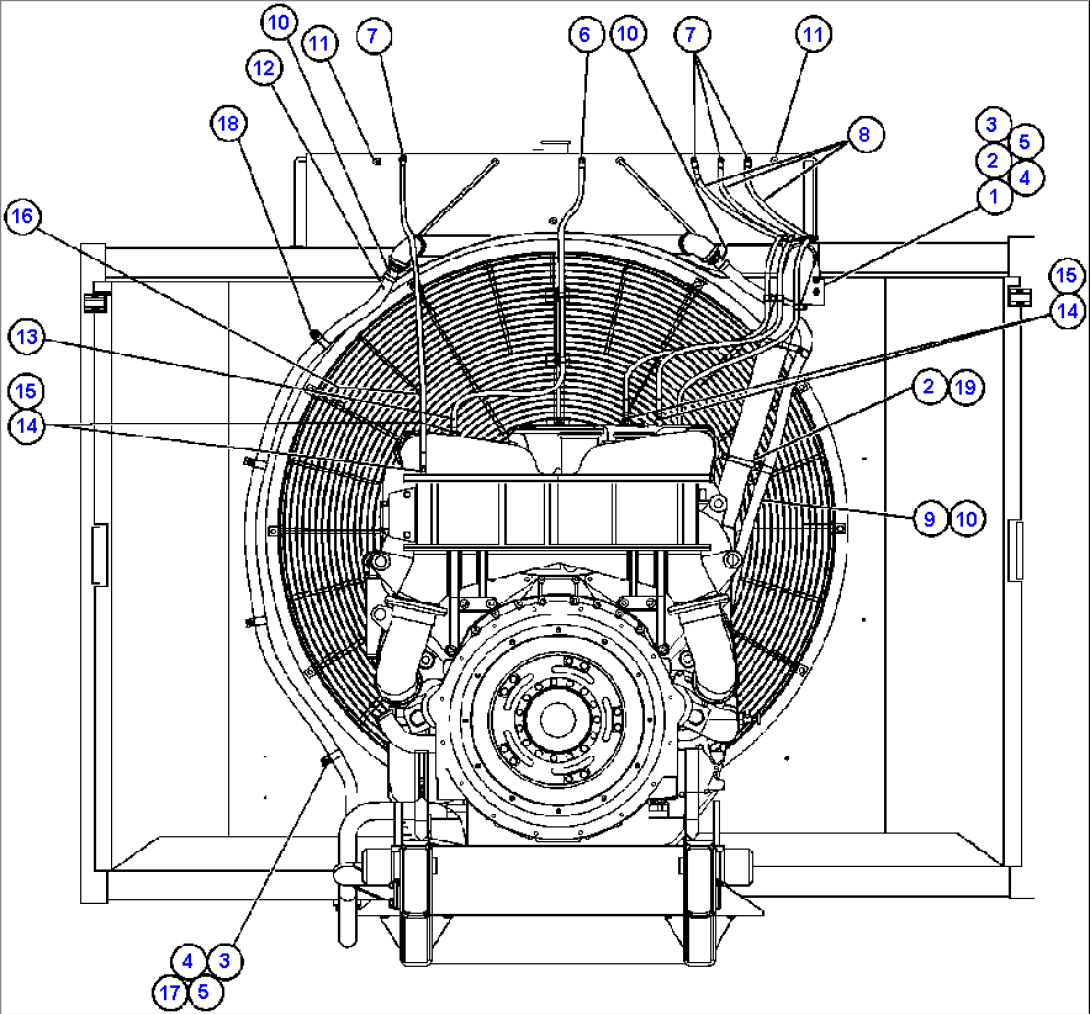

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EG8031 | BRACKET | ||
| 2 | TA1432 | CLAMP | ||
| 3 | MM0461 | FLAT WASHER - M10 | ||
| 4 | MM0471 | LOCKWASHER - M10 | ||
| 5 | MM0178 | NUT - M10 | ||
| 6 | TD9743 | FITTING, STRAIGHT ADAPTOR | ||
| 7 | WA3038 | FITTING, STRAIGHT ADAPTOR | ||
| 8 | HA7600 | HOSE | ||
| 9 | ED5464 | HOSE - R.H. | ||
| 10 | CD9707 | CLAMP | ||
| 11 | C5770 | PLUG | ||
| 12 | TM2966 | HOSE, L.H. | ||
| 13 | HA7600 | HOSE | ||
| 14 | ADAPTOR (1) | |||
| 15 | ADAPTOR (1) | |||
| 16 | HA6730 | HOSE | ||
| 17 | TC6058 | CLAMP | ||
| 18 | TG2568 | CLAMP | ||
| 19 | TF6925 | CLAMP | ||
| NS|20 | NOTE: (1) SUPPLIED BY ENGINE MANUFACTOR. |
