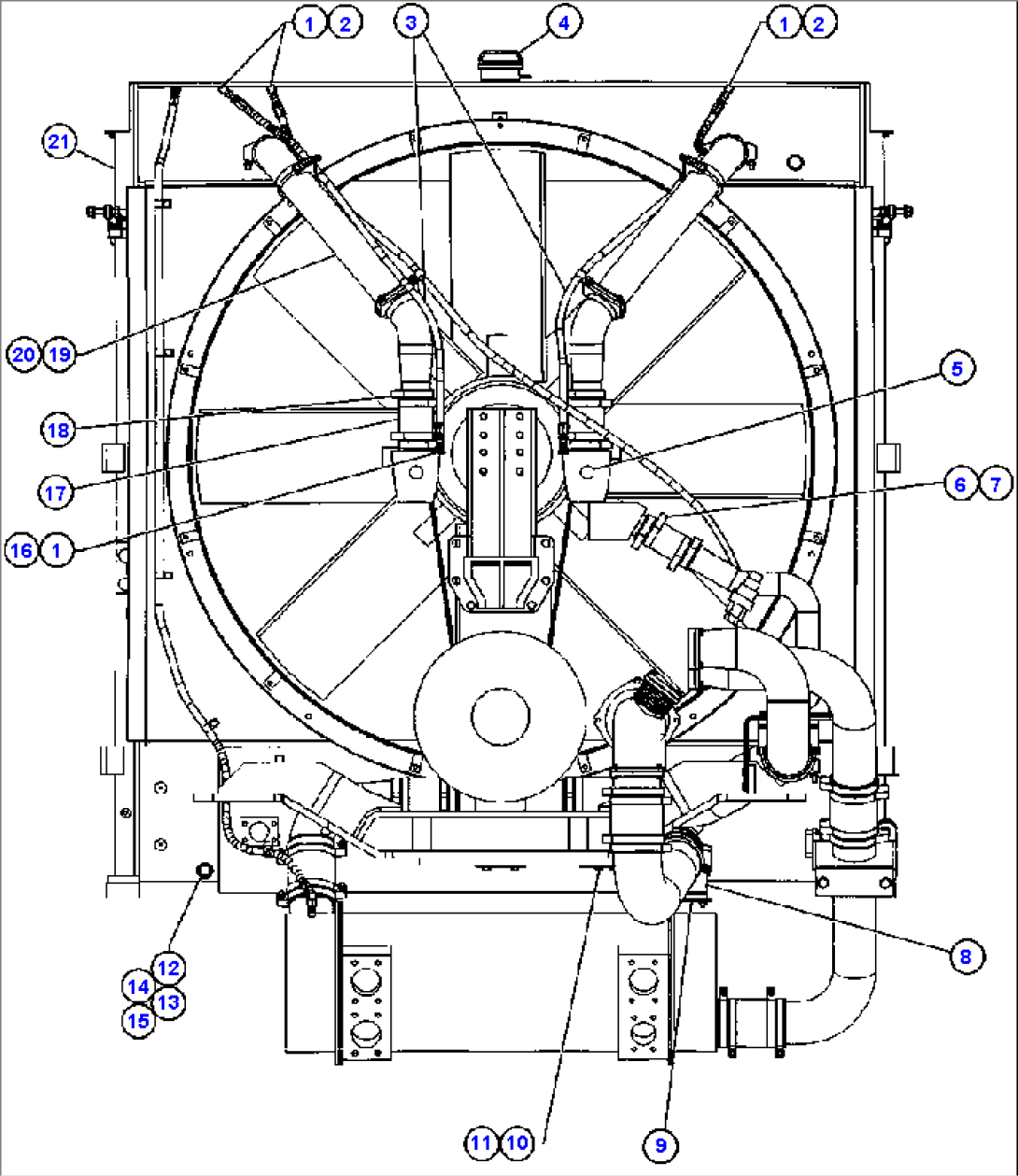

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | WB0461 | FITTING, ADAPTOR | ||
| 2 | WB0374 | FITTING | ||
| 3 | VM4251 | HOSE | ||
| 4 | VE1474 | CAP | ||
| 5 | R2028 | PLUG, PIPE | ||
| 6 | EF7179 | HOSE | ||
| 7 | VN3497 | CLAMP, T-BOLT | ||
| 8 | KC4602 | CLAMP | ||
| 9 | EF5294 | PLATE, BENT | ||
| 10 | MM0010 | CAPSCREW - M12 X 1.75 X 25 | ||
| 11 | 01643-31232 | WASHER | ||
| 12 | SF4094 | BUSHING, PIPE - 3/4" X 1/2" | ||
| 13 | S7198 | NIPPLE | ||
| 14 | TF6957 | DRAIN COCK | ||
| 15 | C5771 | PLUG, PIPE | ||
| 16 | VC6038 | BUSHING, REDUCING | ||
| 17 | EF7180 | HOSE | ||
| 18 | WA1054 | CLAMP, T-BOLT | ||
| 19 | EF4972 | TUBE, ENG/RAD - R.H. | ||
| 20 | EF4971 | TUBE, ENG/RAD - L.H. | ||
| 21 | PC0237 | RADIATOR ASSEMBLY |
