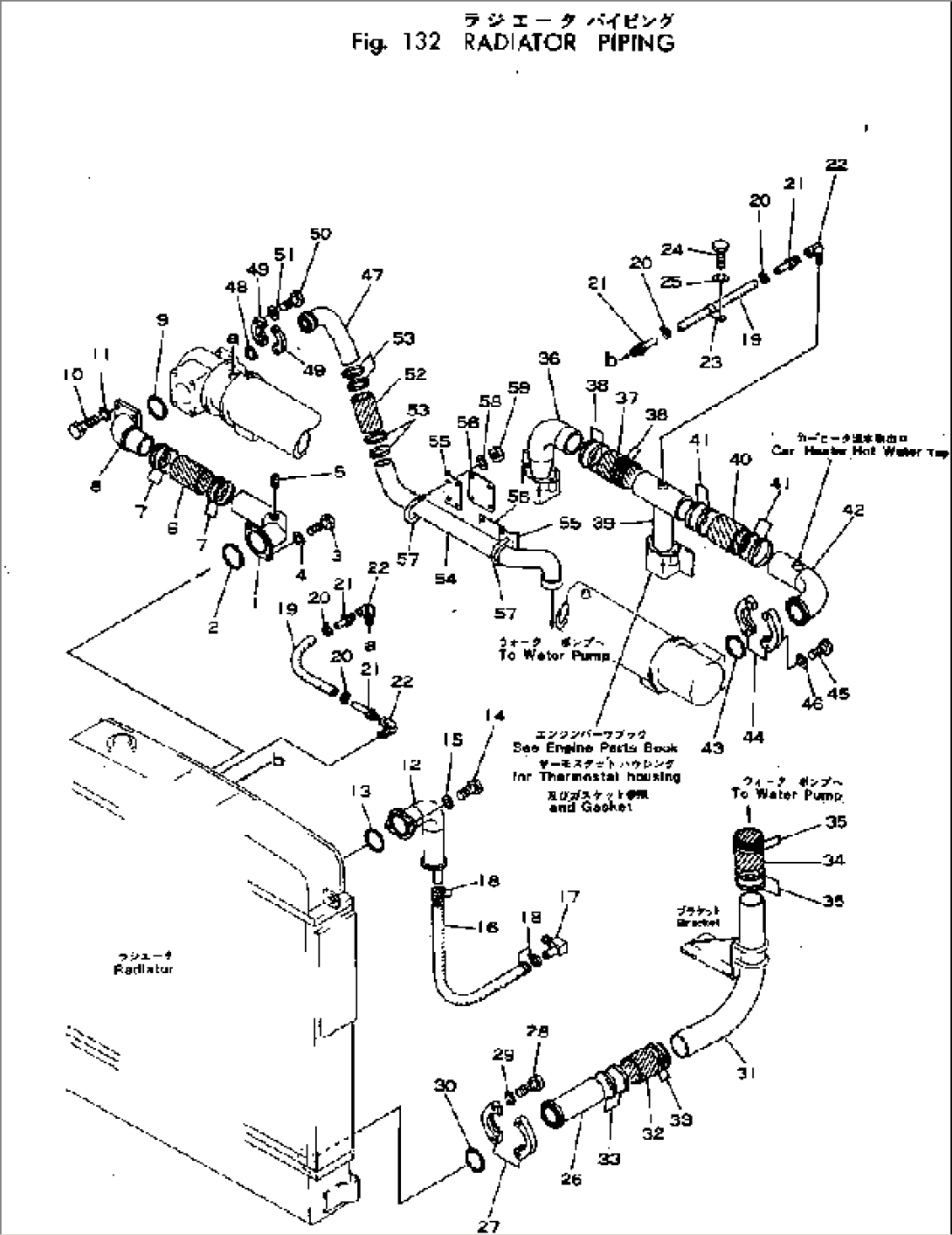

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-03-12131 | TUBE | 1002- | |
| 2 | 07000-02100 | O-RING | 1002- | |
| 3 | 01010-51435 | BOLT | 1002- | |
| 4 | 01602-21442 | WASHER | 1002- | |
| 5 | 02721-10813 | PLUG | 1002- | |
| 6 | 07260-28718 | HOSE | 1002- | |
| 7 | 566-09-15260 | CLAMP | 1069- | |
| 7 | \0\07281-11159 | CLAMP | 1002-1068 | |
| 8 | 568-03-22351 | TUBE | 1002- | |
| 9 | 07000-02090 | O-RING | 1002- | |
| 10 | 01010-51235 | BOLT | 1002- | |
| 11 | 01602-21236 | WASHER | 1002- | |
| 12 | 569-03-12140 | TUBE | 1002- | |
| 13 | 07000-02100 | O-RING | 1002- | |
| 14 | 01010-51435 | BOLT | 1002- | |
| 15 | 01602-21442 | WASHER | 1002- | |
| 16 | 568-03-22430 | HOSE | 1002- | |
| 17 | 568-03-22271 | ELBOW | 1020- | |
| 17 | \0\568-03-22270 | ELBOW | 1002-1019 | |
| 18 | 07281-10489 | CLAMP | 1002- | |
| 19 | 07260-20963 | HOSE | 1002- | |
| 20 | 07281-10197 | CLAMP | 1002- | |
| 21 | 195-03-11530 | NIPPLE | 1002- | |
| 22 | 07323-30200 | ELBOW | 1002- | |
| 23 | 08036-01814 | CLIP | 1002- | |
| 24 | 01010-51016 | BOLT | 1002- | |
| 25 | 01602-21030 | WASHER | 1002- | |
| 26 | 569-03-12150 | TUBE | 1002- | |
| 27 | 07371-33010 | FLANGE | 1069- | |
| 27 | \0\07371-03010 | FLANGE | 1002-1068 | |
| 28 | 07372-21650 | BOLT | 1002- | |
| 29 | 01602-21648 | WASHER | 1002- | |
| 30 | 07000-02085 | O-RING | 1002- | |
| 31 | 569-03-12162 | TUBE | 1020- | |
| 31 | 569-03-12161 | TUBE | 1002-1019 | |
| 32 | 07260-28718 | HOSE | 1002- | |
| 33 | 566-09-15260 | CLAMP | 1069- | |
| 33 | \0\07281-11159 | CLAMP | 1002-1068 | |
| 34 | 569-03-12171 | HOSE | 1002- | |
| 35 | 566-09-15260 | CLAMP | 1069- | |
| 35 | \0\07281-11159 | CLAMP | 1002-1068 | |
| 36 | 569-03-12210 | TUBE | 1002- | |
| 37 | 569-03-12171 | HOSE | 1002- | |
| 38 | 566-09-15260 | CLAMP | 1069- | |
| 38 | \0\07281-11159 | CLAMP | 1002-1068 | |
| 39 | 569-03-12220 | TUBE | 1002- | |
| 40 | 07260-28718 | HOSE | 1002- | |
| 41 | 566-09-15260 | CLAMP | 1069- | |
| 41 | \0\07281-11159 | CLAMP | 1002-1068 | |
| 42 | 569-03-12230 | TUBE | 1002- | |
| 43 | 07000-02085 | O-RING | 1002- | |
| 44 | 07371-33010 | FLANGE | 1069- | |
| 44 | \0\07371-03010 | FLANGE | 1002-1068 | |
| 45 | 07372-21650 | BOLT | 1002- | |
| 46 | 01602-21648 | WASHER | 1002- | |
| 47 | 569-03-12240 | TUBE | 1002- | |
| 48 | 07000-02060 | O-RING | 1002- | |
| 49 | 07371-32076 | FLANGE | 1069- | |
| 49 | \0\07371-22076 | FLANGE | 1002-1068 | |
| 50 | 07372-21240 | BOLT | 1002- | |
| 51 | 01602-21236 | WASHER | 1002- | |
| 52 | 07260-25814 | HOSE | 1002- | |
| 53 | 07281-10809 | CLAMP | 1002- | |
| 54 | 569-03-12250 | TUBE | 1002- | |
| 55 | 569-03-12260 | BRACKET | 1002- | |
| 56 | 569-03-12270 | COVER | 1002- | |
| 57 | 07283-26155 | CLIP | 1002- | |
| 58 | 01643-31032 | WASHER | 1002- | |
| 59 | 01599-01011 | NUT | 1002- |
