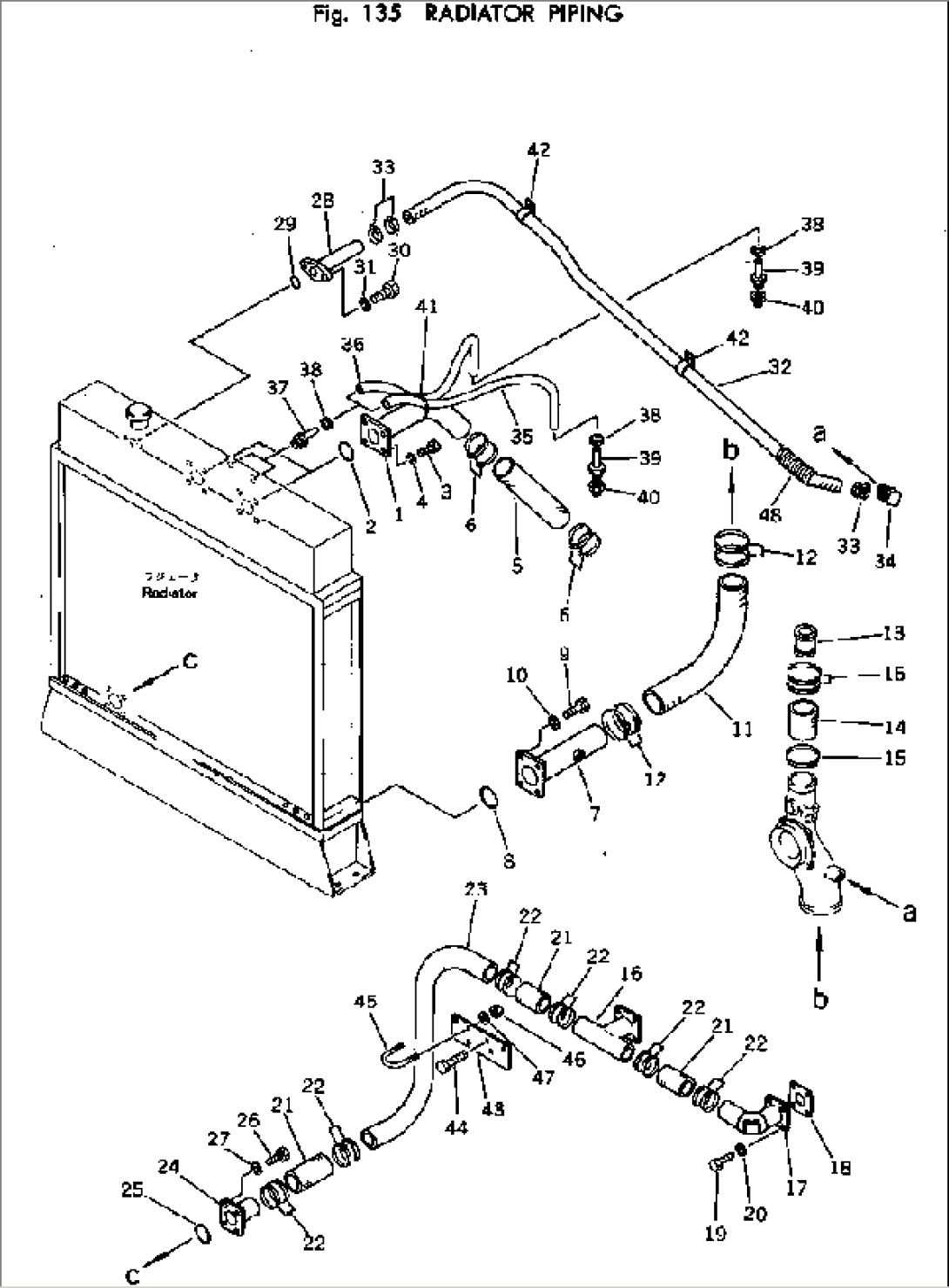

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-03-42120 | TUBE | 1102- | |
| 2 | 07000-22075 | O-RING | 1102- | |
| 3 | 01010-51240 | BOLT | 1102- | |
| 4 | 01602-21236 | WASHER | 1102- | |
| 5 | 07260-27436 | HOSE | 1102- | |
| 6 | 566-09-15240 | CLAMP | 1226- | |
| 6 | 07281-11029 | CLAMP | 1102-1225 | |
| 7 | 569-03-42140 | TUBE | 1102- | |
| 8 | 07000-22085 | O-RING | 1102- | |
| 9 | 01010-51435 | BOLT | 1102- | |
| 10 | 01602-21442 | WASHER | 1102- | |
| 11 | 569-03-42150 | HOSE | 1102- | |
| 12 | 569-03-32320 | CLAMP | 1226- | |
| 12 | 07281-11159 | CLAMP | 1102-1225 | |
| 13 | 569-03-42330 | PLUG | 1102- | |
| 14 | (CU67369-C) | HOSE | 1102- | |
| 15 | (CU43828-E) | CLAMP | 1102- | |
| 16 | 569-03-42221 | TUBE | 1137- | |
| 16 | 569-03-42220 | TUBE | 1102-1136 | |
| 17 | 569-03-42211 | TUBE | 1137- | |
| 17 | 569-03-42210 | TUBE | 1102-1136 | |
| 18 | 568-03-22612 | GASKET | 1137- | |
| 18 | 568-03-22611 | GASKET | 1102-1136 | |
| 19 | (CUS-169-A) | BOLT | 1102- | |
| 20 | 01602-21030 | WASHER | 1102- | |
| 21 | 566-03-12370 | HOSE | 1102- | |
| 22 | 569-61-45390 | CLAMP | 1226- | |
| 22 | 07281-10809 | CLAMP | 1102-1225 | |
| 23 | 569-03-42240 | TUBE | 1102- | |
| 24 | 569-03-42250 | TUBE | 1102- | |
| 25 | 07000-22075 | O-RING | 1102- | |
| 26 | 01010-51230 | BOLT | 1102- | |
| 27 | 01602-21236 | WASHER | 1102- | |
| 28 | 569-03-42270 | TUBE | 1102- | |
| 29 | 07000-03028 | O-RING | 1102- | |
| 30 | 01010-51030 | BOLT | 1102- | |
| 31 | 01602-21030 | WASHER | 1102- | |
| 32 | 569-03-42190 | HOSE | 1102- | |
| 33 | 569-03-42290 | CLAMP | 1226- | |
| 33 | 07281-10489 | CLAMP | 1102-1225 | |
| 34 | 568-03-22270 | ELBOW | 1102- | |
| 35 | 07261-20909 | HOSE | 1102- | |
| 36 | 07261-20910 | HOSE | 1102- | |
| 37 | 195-03-11530 | NIPPLE | 1102- | |
| 38 | 07280-01920 | CLAMP | 1102- | |
| 39 | 569-03-42310 | NIPPLE | 1102- | |
| 40 | 512-06-11280 | NIPPLE | 1102- | |
| 41 | 08034-00536 | BAND | 1102- | |
| 42 | 566-03-12620 | CLAMP | 1102- | |
| 43 | 569-03-42260 | PLATE | 1102- | |
| 44 | 02010-20744 | BOLT | 1102- | |
| 45 | 07283-26155 | CLIP | 1102- | |
| 46 | 01599-01011 | NUT | 1102- | |
| 47 | 01643-31032 | WASHER | 1102- | |
| 48 | 565-04-11420 | TUBE | 1102- |
