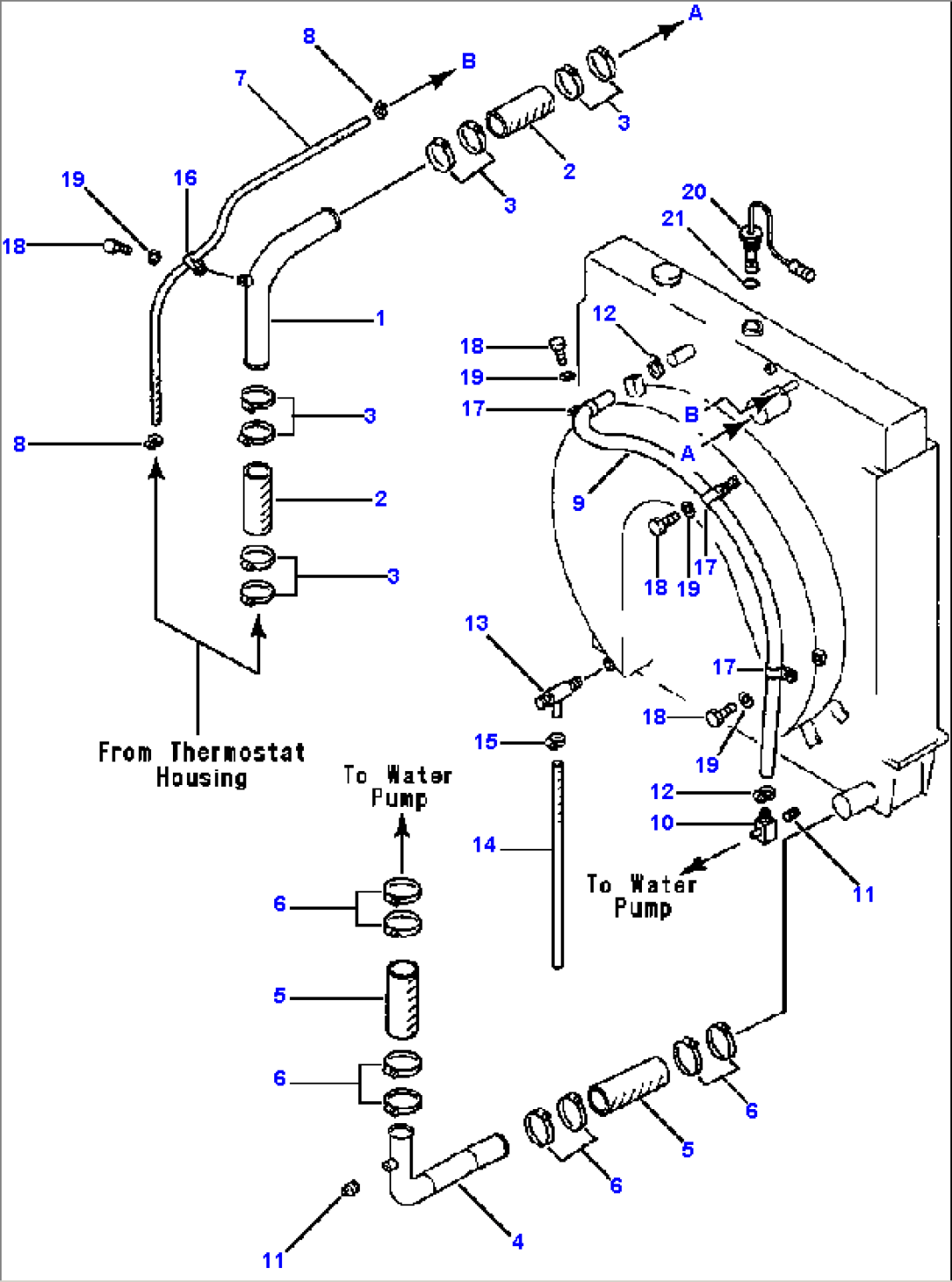

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 425-03-12111 | TUBE | ||
| 2 | 425-03-12120 | HOSE | ||
| 3 | 07281-00809 | CLAMP | ||
| 4 | 425-03-12162 | TUBE | ||
| 5 | 425-03-12180 | HOSE | ||
| 6 | 07281-01029 | CLAMP | ||
| 7 | 09483-00308 | HOSE | ||
| 8 | 07281-00197 | CLAMP | ||
| 9 | 09483-06180 | HOSE | ||
| 10 | 425-03-12152 | ELBOW | ||
| 11 | 425-03-12240 | PLUG | ||
| 12 | 07281-00419 | CLAMP | ||
| 13 | 07730-50004 | VALVE, RADIATOR DRAIN | ||
| 14 | 07260-21445 | HOSE, DRAIN | ||
| 15 | 07281-00259 | CLAMP | ||
| 16 | 424-06-12740 | CLIP | ||
| 17 | 113-899-7950 | CLIP | ||
| 18 | 01010-51020 | BOLT | ||
| 19 | 01643-31032 | WASHER | ||
| 20 | 7861-91-4540 | SENSOR, RADIATOR WATER LEVEL | ||
| 21 | 07002-23634 | O-RING, SENSOR |
