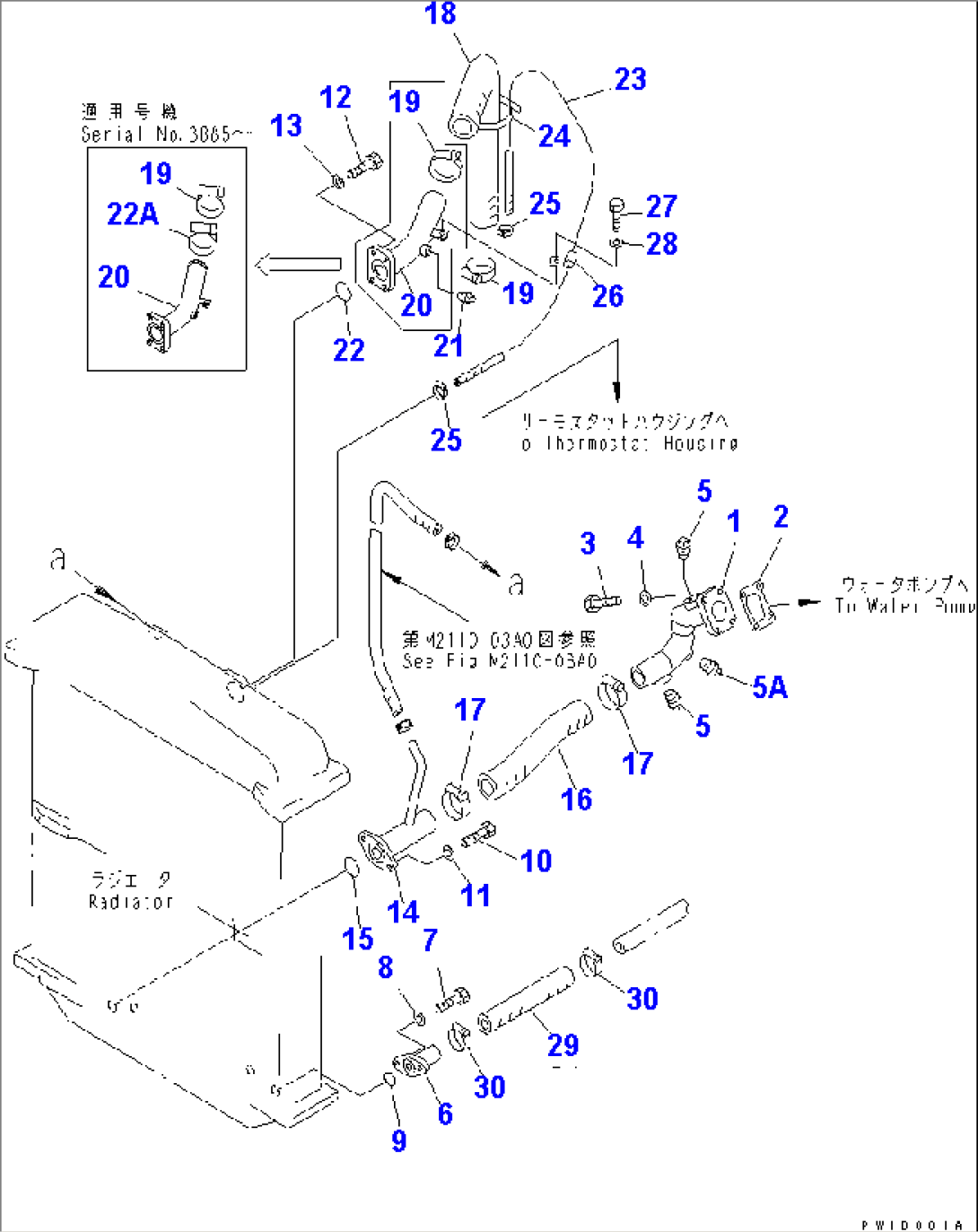

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 154-03-31380 | TUBE | 3689- | |
| 2 | 154-03-31571 | GASKET | 3689- | |
| 3 | 01010-81035 | BOLT | 3689- | |
| 4 | 01643-31032 | WASHER | 3689- | |
| 5 | 07042-30415 | PLUG | 3689- | |
| 5A | 07042-30108 | PLUG | 3689- | |
| 6 | 154-03-31550 | TUBE | 3689- | |
| 7 | 01010-81235 | BOLT | 3689- | |
| 8 | 01602-21236 | WASHER | 3689- | |
| 9 | 07000-63045 | O-RING | 3689- | |
| 10 | 01010-81235 | BOLT | 3689- | |
| 11 | 01602-21236 | WASHER | 3689- | |
| 12 | 01010-81240 | BOLT | 3689- | |
| 13 | 01643-31232 | WASHER | 3689- | |
| 14 | 154-03-31560 | TUBE | 3689- | |
| 15 | 07000-62060 | O-RING | 3689- | |
| 16 | 154-03-31321 | HOSE | 3689- | |
| 17 | 07289-00070 | CLAMP | 3704- | |
| \0\208-09-11120 | CLAMP | 3689-3703 | ||
| 18 | 154-03-31331 | HOSE | 3689- | |
| 19 | 07289-00070 | CLAMP | 3704- | |
| \0\208-09-11120 | CLAMP | 3689-3703 | ||
| 154-03-00191 | TUBE ASS'Y | 3689- | ||
| 20 | \6\ | TUBE | 3689- | |
| 21 | 07042-30108 | PLUG | 3689- | |
| 22 | 07000-42070 | O-RING | 3689- | |
| 22A | 07289-00070 | CLAMP | 3885- | |
| 23 | 154-03-31350 | HOSE | 3689- | |
| 24 | 08034-00536 | BAND | 3689- | |
| 25 | 07281-00197 | CLAMP | 3689- | |
| 26 | 08036-01814 | CLIP | 3689- | |
| 27 | 01010-81220 | BOLT | 3689- | |
| 28 | 01643-31232 | WASHER | 3689- | |
| 29 | 154-03-31530 | HOSE | 3689- | |
| 30 | 07281-00609 | CLAMP | 3689- |
