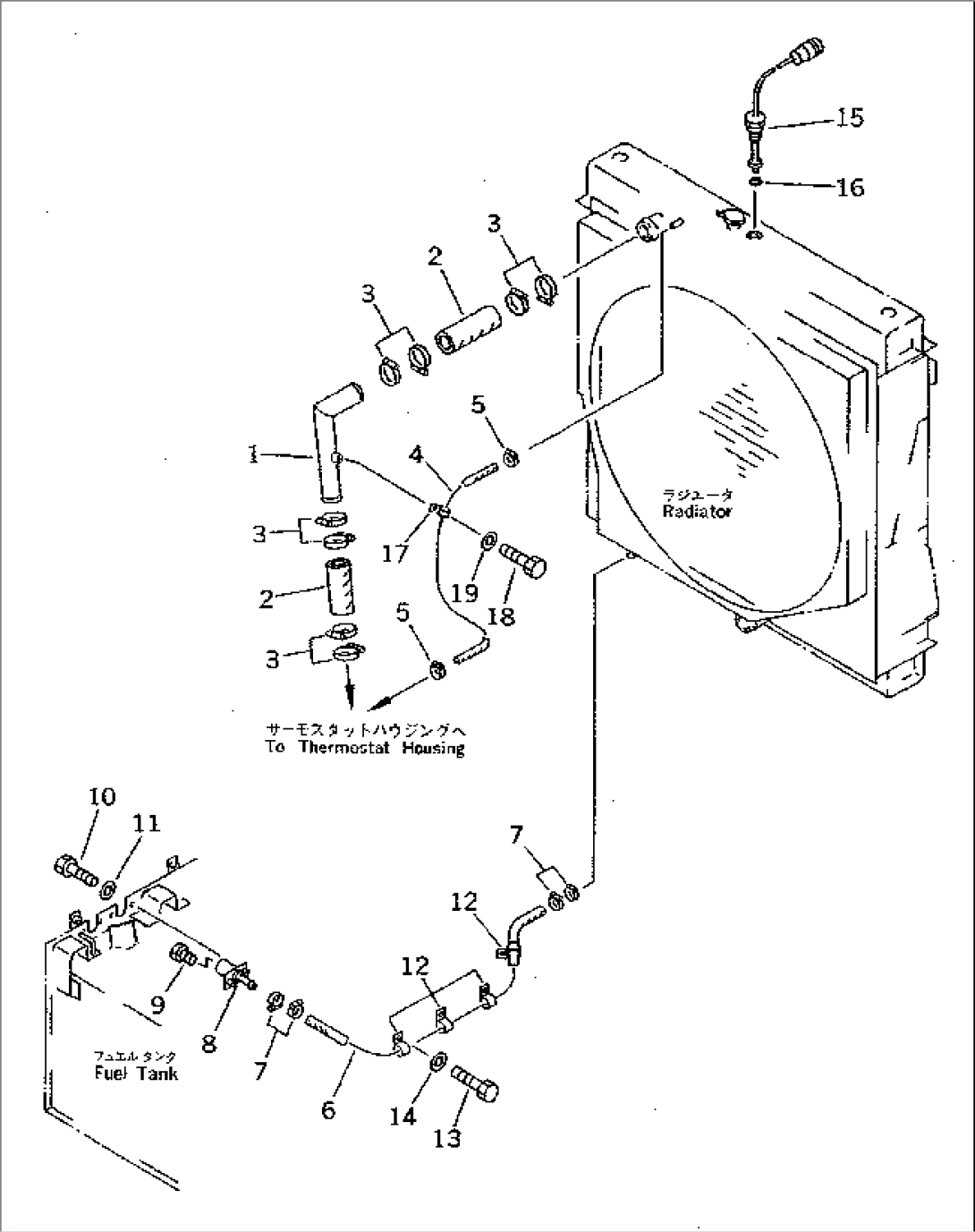

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 428-03-12123 | TUBE | 10001- | |
| 2 | 07260-27418 | HOSE | 10001- | |
| 3 | 07281-01029 | CLAMP | 10001- | |
| 4 | 09483-40310 | HOSE | 10001- | |
| 5 | 07281-00197 | CLAMP | 10001- | |
| 6 | 426-09-11240 | HOSE | 10001- | |
| 7 | 07281-00359 | CLAMP | 10001- | |
| 8 | 426-01-11231 | TUBE | 10001- | |
| 9 | 424-01-11110 | PLUG | 10001- | |
| 10 | 01010-51030 | BOLT | 10001- | |
| 11 | 01643-31032 | WASHER | 10001- | |
| 12 | 08036-03014 | CLIP | 10001- | |
| 13 | 01010-81020 | BOLT | 10001- | |
| 14 | 01643-31032 | WASHER | 10001- | |
| 15 | 7861-91-4540 | SENSOR,RADIATOR WATER LEVEL | 10001- | |
| 16 | 07002-23634 | O-RING | 10001- | |
| 17 | 423-35-12970 | CLIP | 10001- | |
| 18 | 01010-81016 | BOLT | 10001- | |
| 19 | 01643-31032 | WASHER | 10001- |
