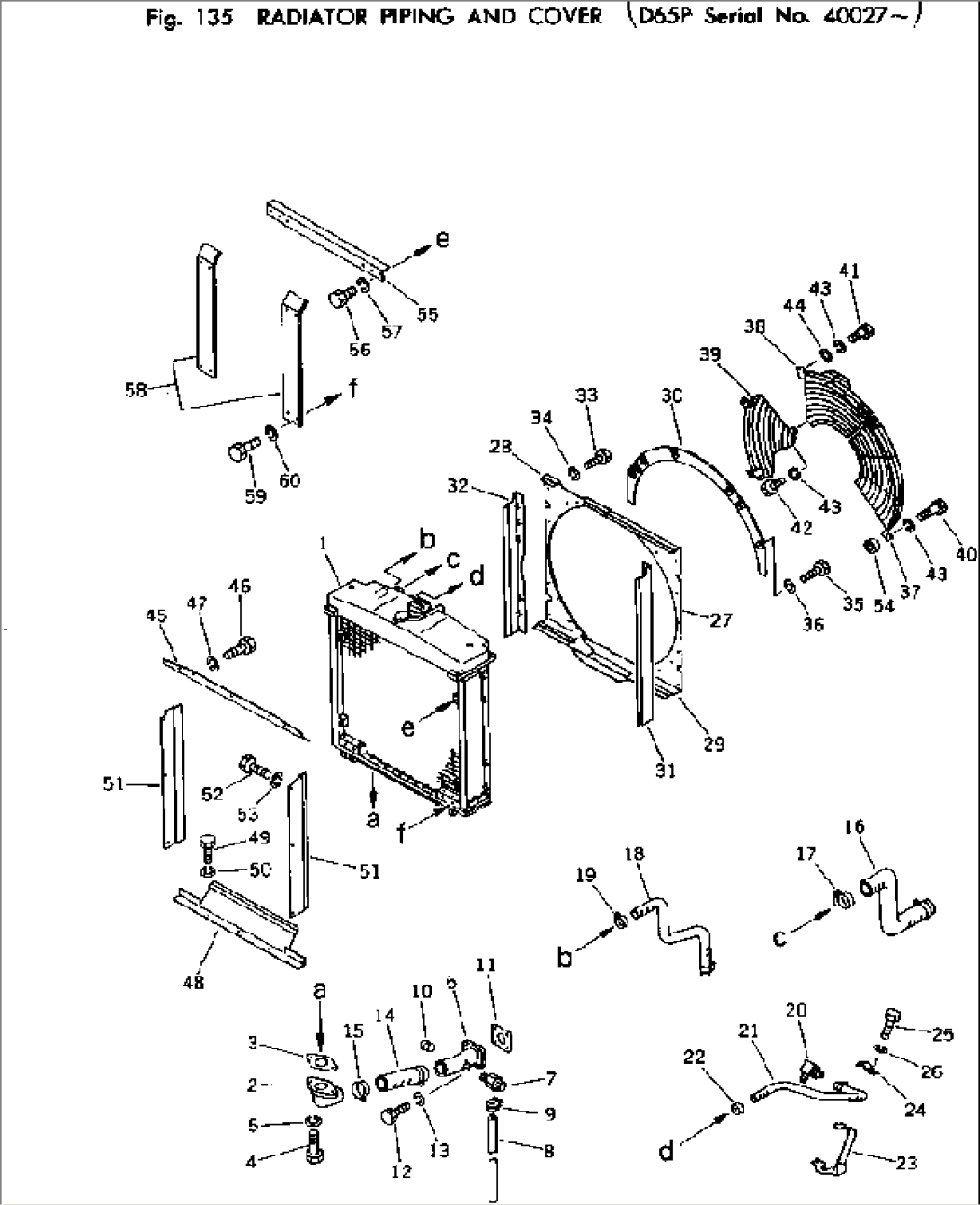

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (144-03-00301) | RADIATOR ASS'Y | 40001- | |
| 2 | 144-03-15391 | TUBE | 40001- | |
| 3 | 144-03-12170 | PACKING | 40001- | |
| 4 | 01010-51235 | BOLT | 40001- | |
| 5 | 01602-21236 | WASHER | 40001- | |
| 6 | 144-03-15381 | TUBE | 40001- | |
| 7 | 07730-30004 | VALVE | 40001- | |
| 8 | 07270-01530 | TUBE | 40001- | |
| 8 | 07270-31530 | TUBE,(FOR COLD WEATHER) | 40001- | |
| 9 | 07281-00197 | CLAMP | 40001- | |
| 10 | 07043-00415 | PLUG | 40001- | |
| 11 | 144-03-12160 | PACKING | 40001- | |
| 12 | 01010-31030 | BOLT | 40001- | |
| 13 | 01602-01030 | WASHER | 40001- | |
| 14 | 144-03-15430 | HOSE | 40001- | |
| 15 | 07281-00809 | CLAMP | 40001- | |
| 16 | 144-03-15360 | HOSE | 40001- | |
| 17 | 07281-00809 | CLAMP | 40001- | |
| 18 | 144-03-15420 | HOSE | 40001- | |
| 19 | 07281-00419 | CLAMP | 40001- | |
| 20 | 6631-11-6231 | ELBOW | 40001- | |
| 21 | 07261-20910 | HOSE | 40001- | |
| 22 | 07280-01920 | CLAMP | 40001- | |
| 23 | 144-03-12211 | BRACKET | 40001- | |
| 24 | 141-03-13380 | CLIP | 40001- | |
| 25 | 01010-31225 | BOLT | 40001- | |
| 26 | 01602-01236 | WASHER | 40001- | |
| 27 | 144-03-15270 | SHROUD,UPPER | 40001- | |
| 28 | 144-03-15280 | SHROUD,UPPER | 40001- | |
| 29 | 144-03-15220 | SHROUD,LOWER | 40001- | |
| 30 | 144-03-15440 | COVER,UPPER | 40027- | |
| 31 | 14G-03-11171 | PLATE | 40001- | |
| 32 | 14G-03-11181 | PLATE | 40001- | |
| 33 | 01010-51230 | BOLT | 40027- | |
| 34 | 01602-21236 | WASHER | 40027- | |
| 35 | 01010-51240 | BOLT | 40027- | |
| 36 | 01602-21236 | WASHER | 40027- | |
| 37 | 144-03-15511 | NET,L.H. | 40001- | |
| 38 | 144-03-15521 | NET,CENTER | 40027- | |
| 39 | 144-03-15531 | NET,R.H. | 40001- | |
| 40 | 01010-51030 | BOLT | 40027- | |
| 41 | 01011-51020 | BOLT | 40027- | |
| 42 | 01010-51020 | BOLT | 40001- | |
| 43 | 01602-21030 | WASHER | 40001- | |
| 44 | 01643-31232 | WASHER | 40027- | |
| 45 | 144-03-15310 | COVER | 40001- | |
| 46 | 01010-50820 | BOLT | 40001- | |
| 47 | 01602-20825 | WASHER | 40001- | |
| 48 | 14G-03-11190 | COVER | 40001- | |
| 49 | 01010-50820 | BOLT | 40001- | |
| 50 | 01602-20825 | WASHER | 40001- | |
| 51 | 14G-03-11160 | COVER | 40001- | |
| 52 | 01010-50820 | BOLT | 40001- | |
| 53 | 01602-20825 | WASHER | 40001- | |
| 54 | 6131-22-3760 | BOSS | 40027- | |
| 55 | 144-03-16120 | ANGLE | 40027- | |
| 56 | 01010-51025 | BOLT | 40027- | |
| 57 | 01602-21030 | WASHER | 40027- | |
| 58 | 144-03-16110 | PLATE | 40027- | |
| 59 | 01010-51025 | BOLT | 40027- | |
| 60 | 01602-21030 | WASHER | 40027- |
