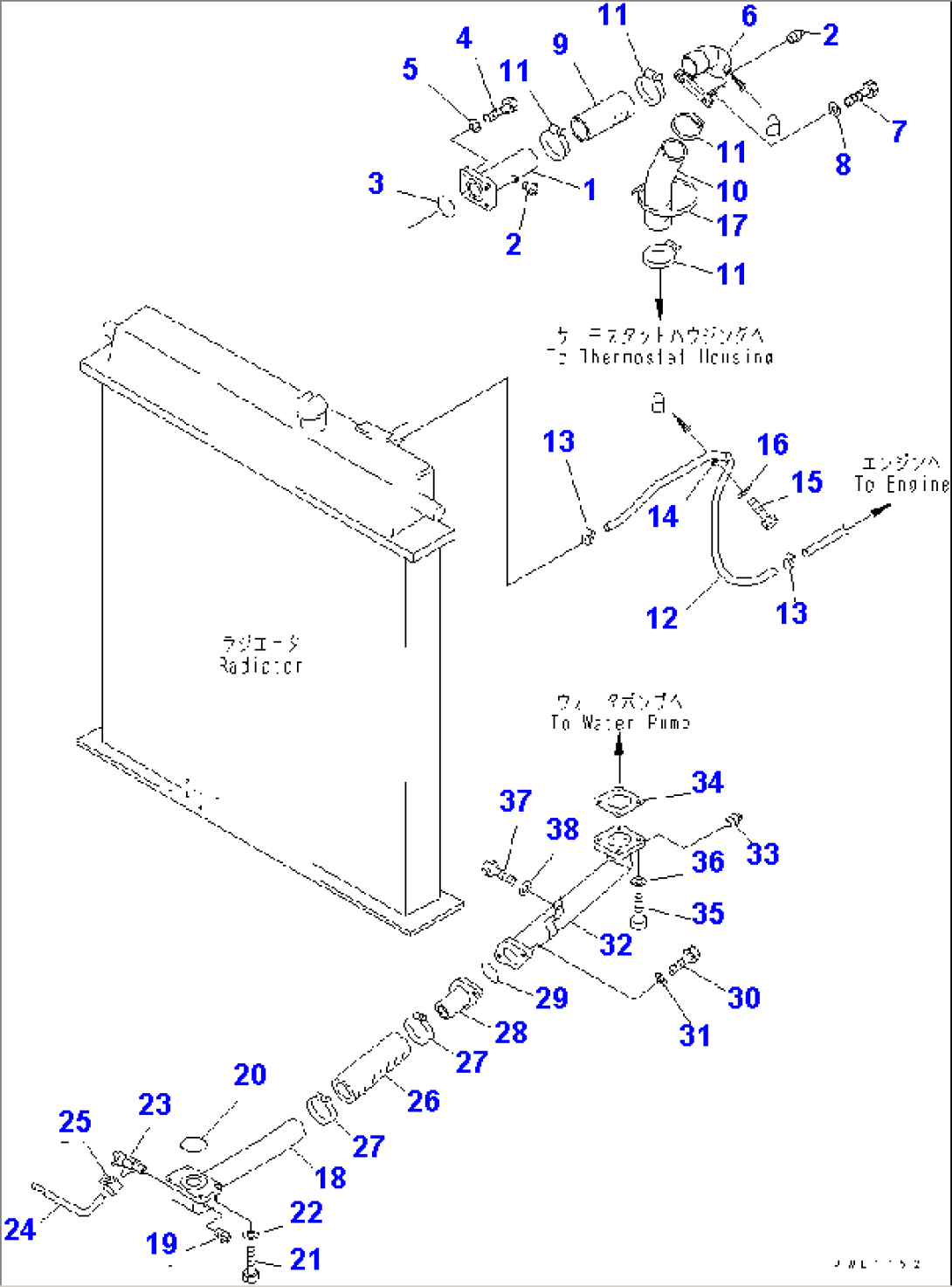

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 195-03-41320 | TUBE | 17523- | |
| 2 | 07042-30108 | PLUG | 17523- | |
| 3 | 07000-G2080 | O-RING | 17692- | |
| 3 | 07000-62080 | O-RING | 17523-17691 | |
| 4 | 01010-81235 | BOLT | 17523- | |
| 5 | 01643-31232 | WASHER | 17523- | |
| 6 | 195-03-56150 | TUBE | 17523- | |
| 7 | 01010-81235 | BOLT | 17523- | |
| 8 | 01643-31232 | WASHER | 17523- | |
| 9 | 195-03-41541 | HOSE | 17523- | |
| 10 | 195-03-56160 | HOSE | 17523- | |
| 11 | 07289-00095 | CLAMP | 17523- | |
| 12 | 09483-40310 | HOSE | 17523- | |
| 13 | 07281-00197 | CLAMP | 17523- | |
| 14 | 08036-01814 | CLIP | 17523- | |
| 15 | 01010-81020 | BOLT | 17523- | |
| 16 | 01643-31032 | WASHER | 17523- | |
| 17 | 08034-00536 | BAND | 17523- | |
| 18 | 195-03-41340 | TUBE | 17523- | |
| 19 | 07042-30108 | PLUG | 17523- | |
| 20 | 07000-G2080 | O-RING | 17692- | |
| 20 | 07000-62080 | O-RING | 17523-17691 | |
| 21 | 01010-81230 | BOLT | 17523- | |
| 22 | 01643-31232 | WASHER | 17523- | |
| 23 | 07730-50004 | VALVE | 17523- | |
| 24 | 175-03-31530 | HOSE | 17523- | |
| 25 | 07285-00180 | CLIP | 17523- | |
| 26 | 175-03-41621 | HOSE | 17523- | |
| 27 | 07289-00095 | CLAMP | 17523- | |
| 28 | 195-03-41460 | TUBE | 17523- | |
| 29 | 07000-G2080 | O-RING | 17692- | |
| 29 | 07000-62080 | O-RING | 17523-17691 | |
| 30 | 01010-81240 | BOLT | 17523- | |
| 31 | 01643-31232 | WASHER | 17523- | |
| 32 | 195-03-41470 | TUBE | 17523- | |
| 33 | 07042-70415 | PLUG | 17523- | |
| 34 | 195-03-41481 | GASKET | 17523- | |
| 35 | 01010-81045 | BOLT | 17523- | |
| 36 | 01643-31032 | WASHER | 17523- | |
| 37 | 01010-81835 | BOLT | 17523- | |
| 38 | 01643-31845 | WASHER | 17523- |
