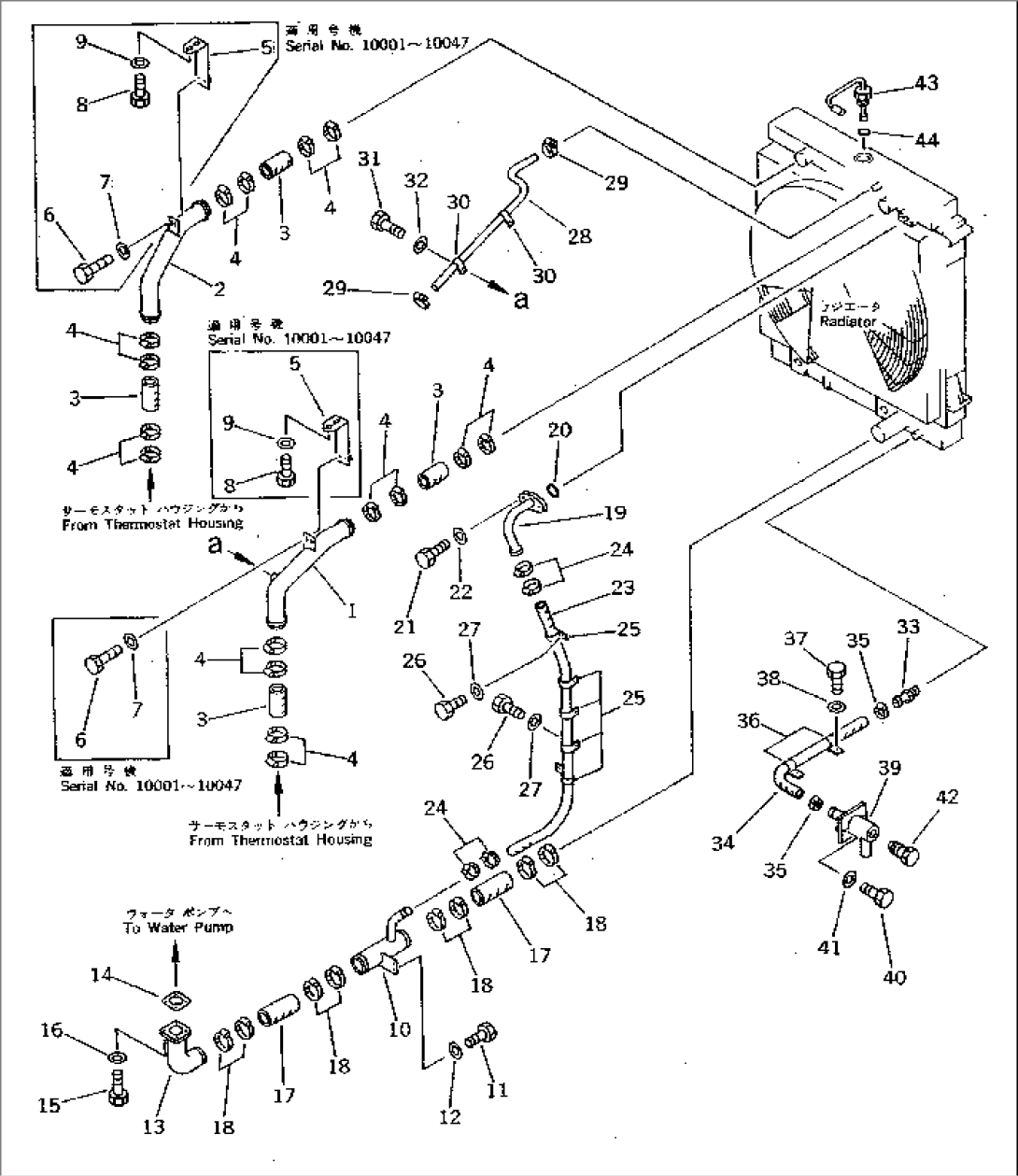

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-03-11410 | TUBE,L.H. | 10001-10499 | |
| 2 | 427-03-11420 | TUBE,R.H. | 10001-10499 | |
| 3 | 427-03-11430 | HOSE | 10001-@ | |
| 4 | 07281-01029 | CLAMP | 10001-10499 | |
| 5 | 427-54-11341 | PLATE | 10001-10047 | |
| 6 | 01010-51020 | BOLT | 10001-10047 | |
| 7 | 01643-31032 | WASHER | 10001-10047 | |
| 8 | 01010-51025 | BOLT | 10001-10047 | |
| 9 | 01643-31032 | WASHER | 10001-10047 | |
| 10 | 427-03-11440 | TUBE | 10001-10499 | |
| 11 | 01010-51025 | BOLT | 10001-10499 | |
| 12 | 01643-31032 | WASHER | 10001-10499 | |
| 13 | 427-03-11450 | TUBE | 10001-10499 | |
| 14 | 6693-62-9241 | GASKET | 10001-10499 | |
| 15 | 01010-51235 | BOLT | 10001-10499 | |
| 16 | 01643-51232 | WASHER | 10001-10499 | |
| 17 | 07260-29928 | HOSE | 10001-@ | |
| 18 | 07281-01279 | CLAMP | 10001-@ | |
| 19 | 427-03-11520 | TUBE | 10001-@ | |
| 20 | 07000-03035 | O-RING | 10001-@ | |
| 21 | 01010-51035 | BOLT | 10001-10499 | |
| 22 | 01643-31032 | WASHER | 10001-10499 | |
| 23 | 07261-23218 | HOSE | 10001-10499 | |
| 24 | 07281-00489 | CLAMP | 10001-@ | |
| 25 | 176-911-1690 | CLIP | 10001-@ | |
| 26 | 01010-51020 | BOLT | 10001-@ | |
| 27 | 01643-31032 | WASHER | 10001-@ | |
| 28 | 07260-20990 | HOSE | 10001-10499 | |
| 29 | 07281-00197 | CLAMP | 10001-@ | |
| 30 | 08036-01814 | CLIP | 10001-@ | |
| 31 | 01010-51020 | BOLT | 10001-@ | |
| 32 | 01643-31032 | WASHER | 10001-@ | |
| 33 | 6137-81-3231 | NIPPLE | 10001-@ | |
| 34 | 427-03-11510 | HOSE | 10001-10499 | |
| 35 | 07281-00359 | CLAMP | 10001-10499 | |
| 36 | 08036-23014 | CLIP | 10001-@ | |
| 37 | 01010-51020 | BOLT | 10001-@ | |
| 38 | 01643-51032 | WASHER | 10001-@ | |
| 39 | 426-01-11231 | TUBE | 10001-@ | |
| 40 | 01010-51035 | BOLT | 10001-10499 | |
| 41 | 01643-31032 | WASHER | 10001-10499 | |
| 42 | 424-01-11110 | PLUG | 10001-@ | |
| 43 | 7861-91-4510 | SENSOR,WATER LEVEL | 10031-@ | |
| \0\7861-99-4510 | SENSOR,WATER LEVEL | 10001-10030 | ||
| 44 | 07002-23634 | O-RING | 10001-@ |
