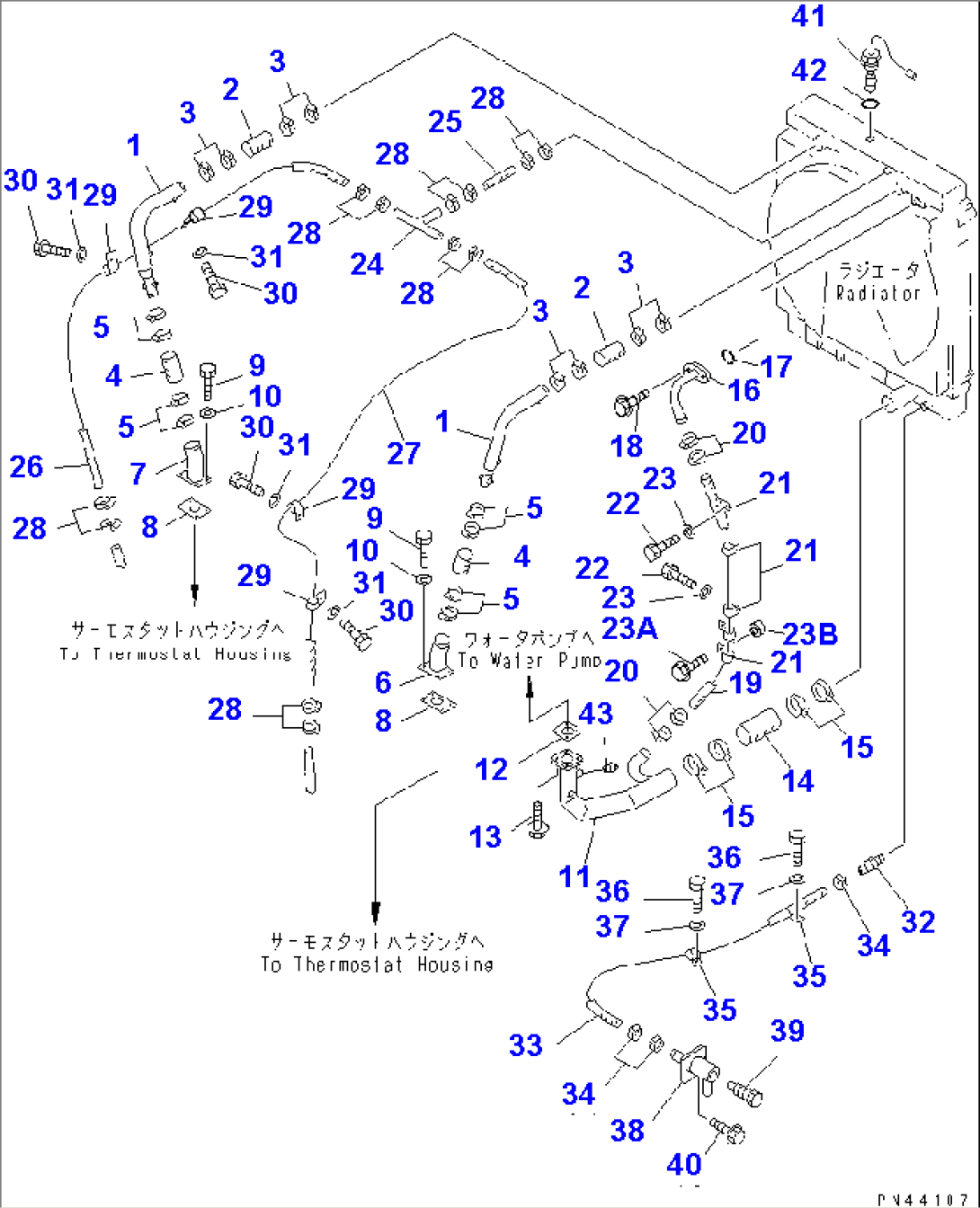

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-03-12410 | TUBE | 10501- | |
| 2 | 427-03-11430 | HOSE | 10001- | |
| 3 | 07281-01029 | CLAMP | 10501- | |
| 4 | 07260-25820 | HOSE | 10501- | |
| 5 | 07281-00809 | CLAMP | 10501- | |
| 6 | 427-03-12430 | TUBE,L.H. | 10501- | |
| 7 | 427-03-12440 | TUBE,R.H. | 10501- | |
| 8 | 427-03-12520 | SEAL | 10501- | |
| 9 | 01011-81030 | BOLT | 10501- | |
| 10 | 01643-31032 | WASHER | 10501- | |
| 11 | 427-03-12451 | TUBE | 10612- | |
| 11 | \0\427-03-12450 | TUBE | 10501-10611 | |
| 12 | 6215-61-7360 | GASKET | 10501- | |
| 13 | 01435-01230 | BOLT | 10501- | |
| 14 | 07260-29928 | HOSE | 10001- | |
| 15 | 07281-01279 | CLAMP | 10001- | |
| 16 | 427-03-11520 | TUBE | 10001- | |
| 17 | 07000-13035 | O-RING | 10001- | |
| 18 | 01435-01030 | BOLT | 10501- | |
| 19 | 427-03-11530 | HOSE | 10586- | |
| 19 | \0\07261-23220 | HOSE | 10501-10585 | |
| 20 | 07281-00489 | CLAMP | 10001- | |
| 21 | 176-911-1690 | CLIP | 10001- | |
| 22 | 01010-81020 | BOLT | 10586- | |
| 22 | 01010-51020 | BOLT | 10001-10585 | |
| 23 | 01643-31032 | WASHER | 10586- | |
| 23 | 01643-31032 | WASHER | 10001-10585 | |
| 23A | 01435-01030 | BOLT | 10586- | |
| 23B | 195-01-14540 | COLLAR,(FOR JAPAN) | 10586- | |
| 23B | 195-01-14540 | COLLAR,(EXCEPT JAPAN) | 10509- | |
| 24 | 427-03-12460 | TUBE | 10501- | |
| 25 | 07260-20906 | HOSE | 10501- | |
| 26 | 07261-20915 | HOSE | 10501- | |
| 27 | 07261-20911 | HOSE | 10501- | |
| 28 | 07281-00197 | CLAMP | 10001- | |
| 29 | 08036-01814 | CLIP | 10001- | |
| 30 | 01010-81020 | BOLT | 10001- | |
| 31 | 01643-31032 | WASHER | 10001- | |
| 32 | 6137-81-3231 | NIPPLE | 10001- | |
| 33 | 427-03-14350 | HOSE | 10501- | |
| 33 | 427-03-11510 | HOSE | 10001-10499 | |
| 34 | 07281-00289 | CLAMP | 10501- | |
| 34 | (\2\07285-00260) | CLIP,HOSE | (10501-10509) | |
| 35 | 08036-23014 | CLIP | 10001- | |
| 36 | 01010-81020 | BOLT | 10001- | |
| 37 | 01643-51032 | WASHER | 10001- | |
| 38 | 426-01-11231 | TUBE | 10001- | |
| 39 | 424-01-11110 | PLUG | 10001- | |
| 40 | 01435-01030 | BOLT | 10501- | |
| 41 | 7861-91-4510 | SENSOR,WATER LEVEL | 10031- | |
| 42 | 07002-23634 | O-RING | 10001- | |
| 43 | 07042-70415 | PLUG,(EXCEPT JAPAN) | 10501- |
