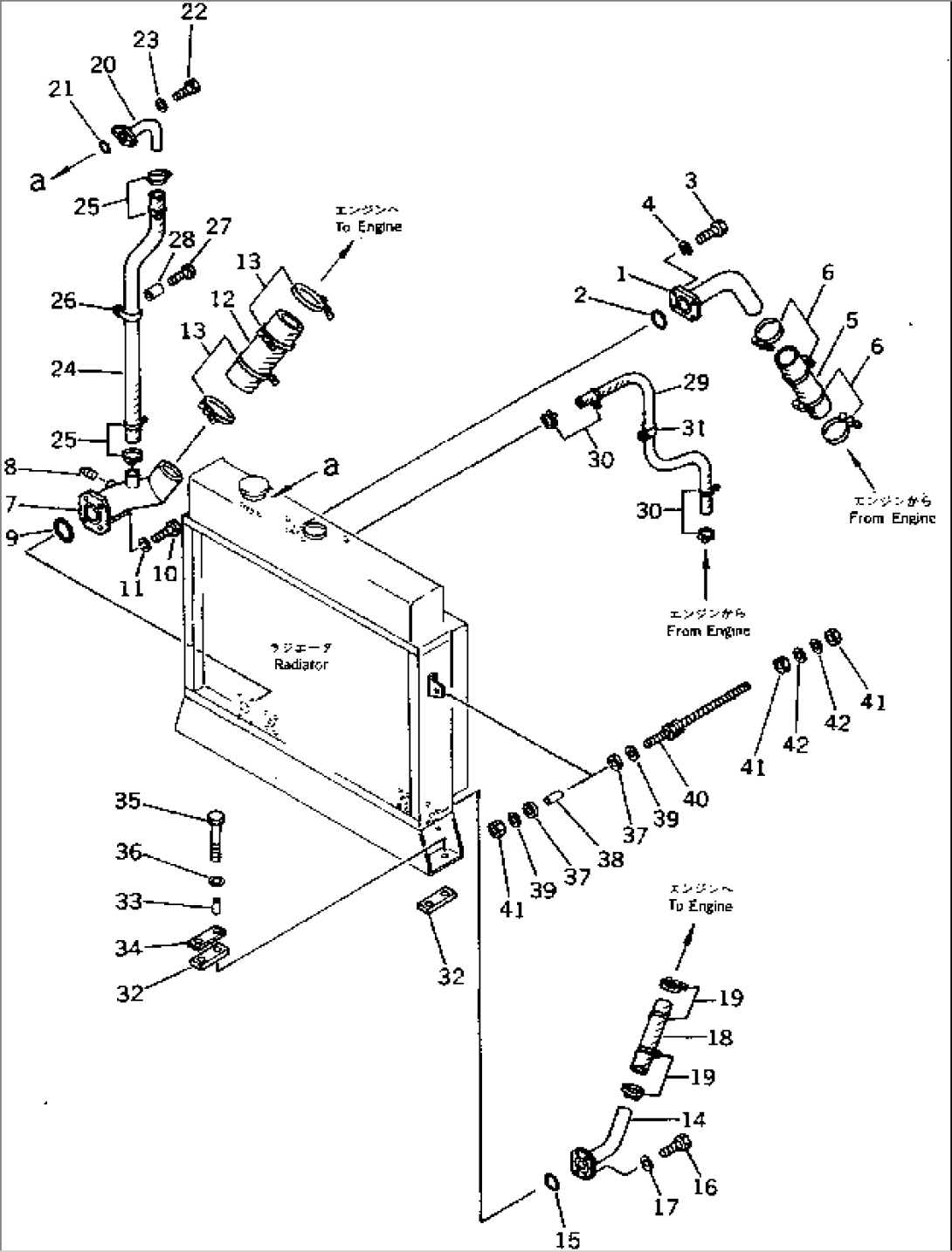

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-03-6A190 | TUBE | 5001-5484 | |
| 2 | 07000-02075 | O-RING | 5001-5484 | |
| 3 | 01010-51235 | BOLT | 5001-5484 | |
| 4 | 01643-51232 | WASHER | 5001-5484 | |
| 5 | 566-03-82130 | HOSE | 5001-5484 | |
| 6 | 205-09-61120 | CLAMP | 5001-5484 | |
| 7 | 566-03-6A170 | TUBE | 5001-5484 | |
| 8 | 07042-70415 | PLUG | 5001-5484 | |
| 9 | 07000-02085 | O-RING | 5001-5484 | |
| 10 | 01010-51440 | BOLT | 5001-5484 | |
| 11 | 01602-21442 | WASHER,SPRING | 5001-5484 | |
| 12 | 566-03-82120 | HOSE | 5001-5484 | |
| 13 | 205-09-61110 | CLAMP | 5001-5484 | |
| 14 | 566-03-6A210 | TUBE | 5001-5484 | |
| 15 | 07000-02060 | O-RING | 5001-5484 | |
| 16 | 01010-51240 | BOLT | 5001-5484 | |
| 17 | 01643-51232 | WASHER | 5001-5484 | |
| 18 | 568-03-22420 | HOSE | 5001-5484 | |
| 19 | 208-09-11120 | CLAMP | 5001-5484 | |
| 20 | 566-03-6A180 | TUBE | 5001-5484 | |
| 21 | 07000-03028 | O-RING | 5001-5484 | |
| 22 | 01010-51030 | BOLT | 5001-5484 | |
| 23 | 01643-51032 | WASHER | 5001-5484 | |
| 24 | 09483-46100 | HOSE | 5001-5484 | |
| 25 | 07281-10419 | CLAMP | 5001-5484 | |
| 26 | 566-03-12620 | CLAMP | 5001-5484 | |
| 27 | 01010-51060 | BOLT | 5001-5484 | |
| 28 | 565-95-18260 | COLLAR | 5001-5484 | |
| 29 | 09483-40310 | HOSE | 5001-5484 | |
| 30 | 07281-10197 | CLAMP | 5001-5484 | |
| 31 | 08036-01414 | CLIP | 5001-5484 | |
| 32 | 285-03-11120 | CUSHION | 5001-5484 | |
| 33 | 566-03-42270 | SPACER | 5001-5484 | |
| 34 | 285-03-11140 | PLATE | 5001-5484 | |
| 35 | 01010-51680 | BOLT | 5001-5484 | |
| 36 | 01643-31645 | WASHER | 5001-5484 | |
| 37 | 285-03-11160 | CUSHION | 5001-5484 | |
| 38 | 566-03-42270 | SPACER | 5001-5484 | |
| 39 | 285-03-11170 | PLATE | 5001-5484 | |
| 40 | 569-03-61780 | ROD | 5001-5484 | |
| 41 | 01582-11613 | NUT | 5001-5484 | |
| 42 | 01643-31645 | WASHER | 5001-5484 |
